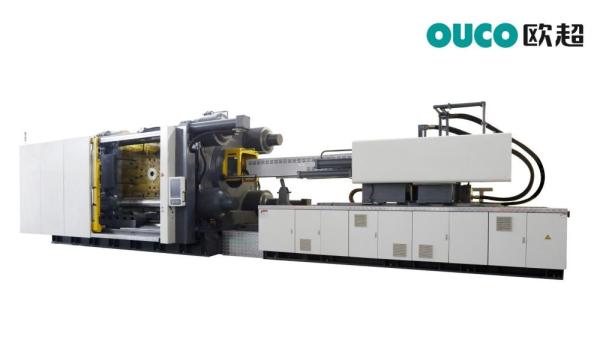

13500 Kn Multi Color Injection Molding Machine Horizontal Servo Injection Molding
13500 Kn Multi Color Injection Molding Machine Horizontal Servo Injection Molding
Specifications
Brand Name :
OUCO
Model Number :
OUCO-CWI-1350S III
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
10500 Kn Multi-Color Horizontal Injection Molding Machine
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

13500 Kn Multi-Color Horizontal Injection Molding Machine

Single cylinder direct hydraulic clamping system for excellent mechanical balance.
Two independent injectors maximize operational convenience.
The core mechanism is adopted to achieve a high degree of application flexibility.
Facilitates additional injection units to meet molding needs for a 3rd color or component.


Product Advantages
100% clamping force use.
Less possibility of flash, save flash trim work.
Save 2% - 5% on material.
Offer excellent protection to mold, platens and tie bars.
Opening stroke 10-20% longer.


Parameters

MODEL CWI-1350S III
CLAMPING UNIT clamping force (kN) 13500
Tie bar distance W×L (mm) 1420*1220
Max.Daylight(mm) 3000
Max. mold thickness (mm) 1400
Min. mold thickness(mm) 650
Platen Dimensions W×L (mm) 2100*1900
Ejector Stroke(mm) 400
Ejector Force(Kn) 341
Ejector Quantily 25
Injection unit 6600I
Injection Unit Screw Diameter(mm) 90 100 110
Screw L/D ratio 23.1 21 19.1
Theoretical injection volume (cm3) 3052 3768 4559
Shot Weight (PS) g 2777 3428 4148
Injection Pressure(MPa) 215 174 144
Injection Speed (mm/s) 76/93
Injection Rate (cm3/s) 788.00 974.00 1177.00
Screw Speed (rpm) 124
Other Motor Power (Kw) 58
pump capacity(L/min) 650
Heater Power (Kw) 50+50+50+7.5
Machine Weight (Ton) 65
Machine size L×W×H (mm) 12500x3500x2900
