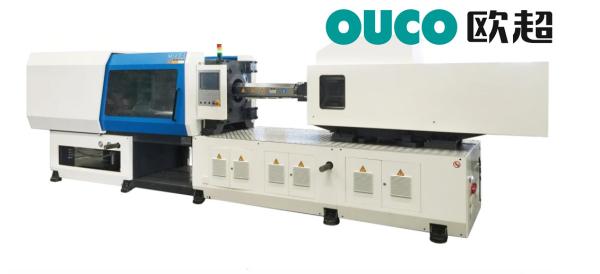

430 Ton Hybrid Horizontal Injection Molding Machine For Recycle Plastic
430 Ton Hybrid Horizontal Injection Molding Machine For Recycle Plastic
430 Ton Hybrid Horizontal Injection Molding Machine For Recycle Plastic
430 Ton Hybrid Horizontal Injection Molding Machine For Recycle Plastic
430 Ton Hybrid Horizontal Injection Molding Machine For Recycle Plastic
430 Ton Hybrid Horizontal Injection Molding Machine For Recycle Plastic
Specifications
Brand Name :
OUCO
Model Number :
OUCO-430T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
430 Ton Hybrid Plastic Parts Mold Injection Machine, For Recycle Plastic
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

430 Ton Hybrid Plastic Parts Mold Injection Machine, For Recycle Plastic

Product details

The hybrid series injection molding machine is a new injection molding machine solution for high-end packaging industry, high-end household products and medical supplier industry based on the all-electric (injection speed 500mm/s) and high-speed series , combining high-speed series clamping unit and all-electric series injection unit, taking into account energy saving and environmental protection. It meets the demand for stronger clamping force and higher performance of injection unit, providing more energy saving and higher efficiency (simultaneous mold opening and loading).

Product introduction

1 Modular injection unit with excellent acceleration performance

2 High-speed machine tool high stiffness clamping device

3 High response, low noise hydraulic system

4 Optimized control system with good response and accuracy for hybrid motors

Product Parameters

OUCO-430T
Clamping Unit
Clamping force kN 4300
Moving mould-plate stroke mm 690
Max.Mould height mm 780
Min.Mould height mm 280
Space between tie-bars mm 760X710
Hydraulic ejector force kN 197
Hydraulic ejector stroke mm 180
Ejector number n 13
Injection Unit i1000 i1400 i1600
Screw diameter mm 50 55 60 55 60 65 60 65 70
Screw LD ratio LD 22 20 20 21.8 20 20 21.6 20 20
lnjection capacity in theory Cm³ 471 570 678 665 791 929 791 929 1078
Injection weight(PS) g 428 518 617 605 720 845 720 845 980
Injection pressure bar 2178 1800 1513 2142 1800 1534 2113 1800 1552
Injection velocity mm/s 350 350 350
Plasticizing capacity g/s 50 60 75 60 75 90 75 90 110
Screw speed rpm 400 400 400
Other
Pump pressure MPa 17.5
Motor/Driving power kW 45(注)+23(熔)+23+23(油) 45(注)+23(熔)+23+23(油) 45(注)+23(熔)+23+23(油)
Heating capacity kW 20.3 20.3 20.3
Machine dimension m 7.65x1.95x2.26 7.65x1.95x2.32 7.65x1.95x2.32
Machine weight t 17.1 17.5 17.9
oil tank capacity L 690

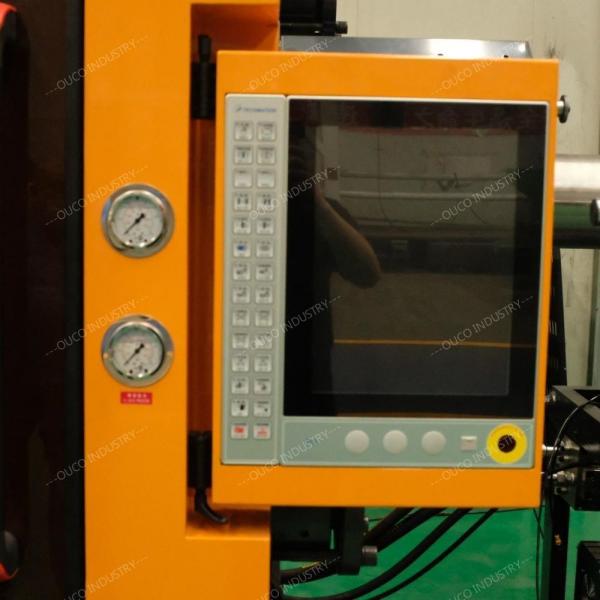

Detail Pictures
