Automatic 470 Ton Bucket Injection Molding Machine For Crate Painting
Automatic 470 Ton Bucket Injection Molding Machine For Crate Painting
Automatic 470 Ton Bucket Injection Molding Machine For Crate Painting
Automatic 470 Ton Bucket Injection Molding Machine For Crate Painting
Automatic 470 Ton Bucket Injection Molding Machine For Crate Painting
Automatic 470 Ton Bucket Injection Molding Machine For Crate Painting
Automatic 470 Ton Bucket Injection Molding Machine For Crate Painting
Automatic 470 Ton Bucket Injection Molding Machine For Crate Painting
Specifications
Brand Name :
OUCO
Model Number :
OUCO-O470T
Certification :
CE, ISO9001:2008, SGS
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
500 sets/year
Delivery Time :
2 months
Packaging Details :
Nude
Product Name :
470 T Optimized Edition Injection Molding Machine for Crate/Painting Bucket
Type :
Automation
Function :
Plastic Parts Production
Motor :
Servo Energy Saving
Color :
Support customization
Stable Performance :
Short Cycle Time
Clamping Way :
Hydraulic
Transport Package :
FCL
Description

470 T Optimized Edition Injection Molding Machine for Crate/Painting Bucket

Product Details and Optimized functions:

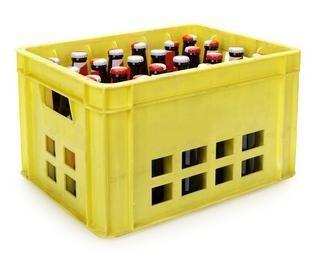

1.Expanded motor and pump system, optimized hydraulic system for high performance and faster cycles. Like crate (less than 2kg) cycle time 20s; Spray paint bucket (780-800g) cycle time 20s.

2. Specially designed screw and barrel structure for faster plastic cization and shorter loading cycle.

Optional bimetallic screw and barrel to be compatible with the recycled material of the box.

3. Optional automation equipment is available to improve production efficiency.

TECHNICAL PARAMETER TABLE
INJECTION UNIT SCREW DIAMETER mm 95
SCREW L/D RATIO L/D 19
INJECTION CAPACITY IN THEORY cm3 2622
INJECTION WEIGHT(PS) g 2386
INJECTION PRESSURE MPa 133
INJECTION RATE g/s 636
PLASTICIZING CAPACITY g/s 95
SCREW SPEED rpm 154
CLAMPING UNIT CLAMPING FORCE KN 4700
MOVING MOULD-PLATE STROKE mm 780
MAX. MOULD HEIGHT mm 820
MIN. MOULD HEIGHT mm 300
SPACE BWTWEEN TIE-BARS (W×H) mm 820x770
HYDRAULIC EJECTOR FORCE mm 125
HYDRAULIC EJECTOR STROKE KN 200
EJECTOR NUMBER n 13
OTHERS PUMP PRESSURE MPa 16
MOTOR /DRIVING POWER KW 55
HEATING CAPACITY KW 27
MACHINE DIMENSION (L×W×H) m 8.54*1.99*2.43
MACHINE WEIGHT t 16.9
OIL TANK CAPACITY L 960

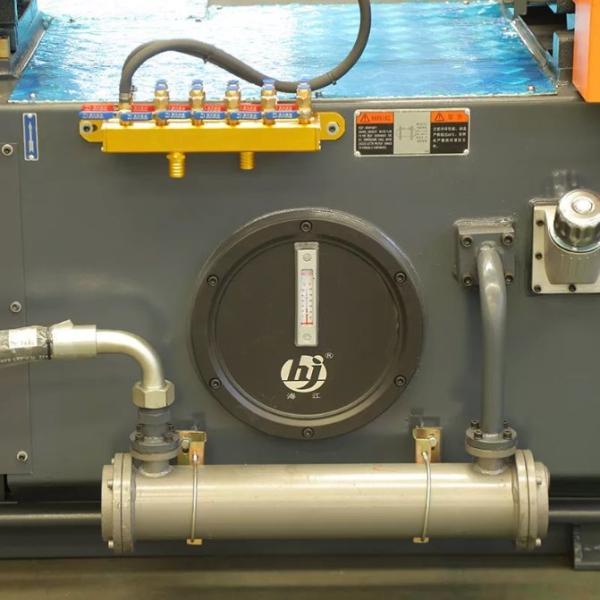

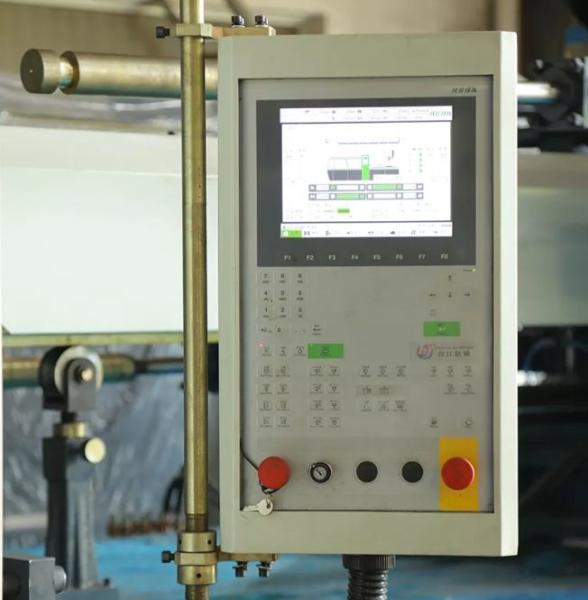

Detail Pictures
