5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard
5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard
Specifications
Brand Name :
Zhongdong
Model Number :
VV72
Certification :
ISO,VDE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Work days
Packaging Details :
Wooden Steel Drums
Conductor Material :
Copper
Insulation Material :
PVC
Application :
Industrial
Jacket :
PVC
Color :
Optional
cores :
5
Description

5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard


APPLICATION

This product is suitable for power transmission and distribution in lines rated voltage not exceeding 0.6/1kV.

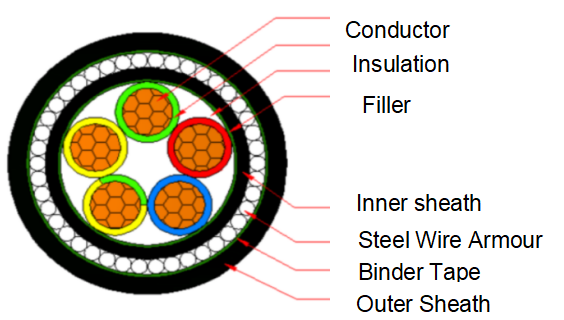

CONSTRUCTION

  • Conductor: Class 1/Class 2 stranded Copper conductor
  • Insulation: Polyvinyl chloride (PVC)
  • Filler(options):Polypropylene mesh tearing rope
  • Inner sheath:Polyvinyl chloride (PVC)
  • Armour:Aluminum wire or stainless steel wire(single core)galvanized steel wire(multi core)
  • Outer sheath:Polyvinyl chloride (PVC)


5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard


CHARACTERISTIC

  • Voltage Rating Uo/U: 0.6/1kV
  • Maximum operating temperature of conductor:+90℃
  • Operating ambient temperature: -20℃~+45℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: 12D (D is the actual outer diameter of the cable)

Specification

Specs
mm²

Conductor diameter
mm

Nominal thickness of insulation
mm

Lining thickness
mm

Nominal thickness of steel wire
mm

Nominal thickness of sheath
mm

Approximate outer diameter of cable
mm

Approximate cable weight
kg/km

5×1.5

1.38

0.8

1

0.8

1.8

16.7

468

5×2.5

1.78

0.8

1

0.8

1.8

17.8

553

5×4

2.25

1

1

1.25

1.8

21.1

867

5×6

2.76

1

1

1.25

1.8

22.5

1032

5×10

4

1

1

1.6

1.8

26.5

1518

5×16

5

1

1

1.6

1.8

29.2

1932

5×25

6.1

1.2

1

1.6

1.9

33.7

2632

5×35

7.2

1.2

1.2

2

2

38.2

3559

5×50

8.4

1.4

1.2

2

2.2

43

4495

5×70

10

1.4

1.2

2

2.3

47.5

5756

5×95

12

1.6

1.4

2.5

2.5

55.9

8080

5×120

13

1.6

1.4

2.5

2.7

59

9457

5×150

14.9

1.8

1.6

2.5

2.9

66

11477

5×185

16.5

2

1.6

2.5

3

71.7

13732

5×240

18.4

2.2

1.8

3.15

3.3

80.3

18105

5×300

21

2.4

1.8

3.15

3.6

89

22013

5×400

23.4

2.6

1.8

3.15

3.9

97.2

27030

ABOUT US

5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard

PACKAGE


5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard


APPLICATION


5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard


PROJECT

5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard

WHY US

5 Core SWA Armoured Electrical Cable 1.5-400mm2 IEC 60502-1 BS5467 Standard

FAQ

What is the typical application of this cable?
Mainly used for power distribution in industrial plants, underground installations, and outdoor environments requiring robust protection.

How is the armor layer constructed?
The steel wire armor consists of interlocking steel wires helically wound around the insulated cores, offering both tensile strength and rodent resistance.

What are the core materials used?
Conductors are typically made of stranded copper or aluminum, with PVC or XLPE insulation for each core.

Is this cable suitable for direct burial?
Yes, the SWA design makes it ideal for direct burial without additional conduit, though local regulations should be verified.

What bending radius should be maintained during installation?
Minimum bending radius is generally 12 times the cable's outer diameter to prevent armor deformation.

How does the armor affect cable weight?
The steel wire armor increases weight by approximately 30-50% compared to non-armored equivalents.

What termination methods are recommended?
Use gland fittings compatible with SWA armor to ensure proper grounding and strain relief.

What maintenance is required for this cable?
Regular visual inspections for armor damage or corrosion, especially in harsh environments
