30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC
30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC
30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC
30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC
Specifications
Brand Name :
Armoured Electrical Cable
Model Number :
YJV
Certification :
ISO,VDE,ISO,TUV
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Work days
Packaging Details :
Wooden Steel Drums
Conductor Material :
Copper
Insulation Material :
XLPE
Standard :
IEC60502-1 IEC 60332
specifications :
1*50mm²,1*70mm²,1*50mm²,1*95mm²,1*120mm²...
Color :
Optional
Cores :
1Core
Armoring type :
SWA
Voltage :
3.6/6kV～26/35kV
Description

30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC


APPLICATION

This cable is specifically designed for the distribution of electrical power in medium voltage networks. Its robust construction makes it ideal for direct burial underground in a wide range of industrial, commercial, and utility applications, including:

Public Power Distribution Networks: Supplying power from substations to residential and commercial areas.

Industrial Plants: Powering heavy machinery and equipment in factories, refineries, and mining operations.

Infrastructure Projects: Used in tunnels, airports, water treatment plants, and other critical infrastructure.

Renewable Energy Farms: Connecting wind turbines or solar panel arrays to the main grid.

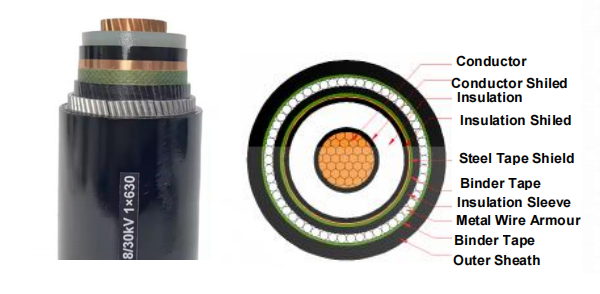

CONSTRUCTION


Conductor: Class 1 or class 2 stranded Copper conductor

Insulation: Cross-Linked Polyethylene(XLPE)

Inner sheath: Polyvinyl chloride (PVC)

Armour: Steel Wire Armour (SWA)

Outer sheath: Polyvinyl chloride (PVC)


30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC




CHARACTERISTIC


Maximum operating temperature of conductor:+90℃
Operating ambient temperature: -15℃~+55℃
Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
Minimum Bending Radius : Single Core 15D (D is the actual outer diameter of the cable)

Specification


Specs

Conductor diameter

Outer thickness of insulation

Approx outer diameter of cable

Approx cable weight

Specs

Conductor diameter

Outer thickness of insulation

Approx outer diameter of cable

Approx cable weight

mm²

mm

±1.0mm

mm

kg/km

mm²

mm

±1.0mm

mm

kg/km

1×35

6.6±0.2

20.0

30.0

1815

3×35

6.6±0.2

20.0

57.6

5710

1×50

7.6±0.2

21.0

31.2

2009

3×50

7.6±0.2

21.0

60.0

6368

1×70

9.2±0.2

22.6

33.8

2543

3×70

9.2±0.2

22.6

63.7

7326

1×95

10.9±0.2

24.3

35.5

2918

3×95

10.9±0.2

24.3

67.7

8574

1×120

12.2±0.2

25.6

36.9

3254

3×120

12.2±0.2

25.6

72.4

10511

1×150

13.6±0.2

27.0

38.3

3605

3×150

13.6±0.2

27.0

75.6

11694

1×185

15.2±0.2

28.6

40.1

4061

3×185

15.2±0.2

28.6

79.4

13219

1×240

17.4±0.2

30.8

42.3

4757

3×240

17.4±0.2

30.8

84.7

15593

1×300

19.5±0.2

32.9

45.9

5909

3×300

19.5±0.2

32.9

89.5

18082

1×400

22.0±0.2

35.4

48.6

6864

3×400

22.0±0.2

35.4

95.6

21150

1×500

24.8±0.2

39.0

52.5

8243

3×500

24.8±0.2

39.0

103.9

25184

1×630

28.2±0.2

42.4

56.3

9863

3×630

28.2±0.2

42.4

113.4

31947

1×800

33.7±0.2

47.9

62.0

12101



ABOUT US


30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC


PACKAGE



PROJECT


30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC


WHY US

30KV MV Underground Armoured Electrical Cable 1*50mm² CU SWA XLPE PVC


FAQ

1.what is our payment term ?
Our payment term is usually T/T 30% in advanced, the balance before picking up the goods or L/C at sight.
2.what is the lead time ?
The lead time usually is 10 – 30 working days.
3.what is the package of the cable ?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirment.
4.Could we provide the free sample for customer ?
Sure, we provide the free sample for customer to checking.
