500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids
500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids
Specifications
Brand Name :
Armoured Electrical Cable
Certification :
ISO9001, CE, CCC, RoHS, VDE, cUL, CSA
Place of Origin :
Hebei，China
MOQ :
To be negotiated
Price :
To be negotiated
Payment Terms :
,L/C,T/T
Supply Ability :
100KM/Week
Delivery Time :
7-30 days based on different qty
Packaging Details :
Rolls, Wooden Drums, Steel Drums, Reels or customized
Insulation :
XLPE
Voltage :
0.6/1kV
Conductor Material :
Copper
Application :
Overhead or Underground,Pipe laying, trench laying, tunnel laying, vertical shaft and bridge laying
No of Core :
1,2,3,4,5
Features :
Fire rated
Description

500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids



APPLICATION

  • ‌‌Power Transmission and Distribution
  • ‌Industrial Power Supply
  • ‌Direct Burial and Underground Installation
  • ‌Underwater and Harsh Environment Use‌


CONSTRUCTION



500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids



CHARACTERISTICS


  • Voltage Rating Uo/U: 19/33(36)kV
  • Maximum operating temperature of conductor:+90℃
  • Operating ambient temperature: -15℃~+55℃
  • Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)
  • Minimum Bending Radius: Single core:15D



SPECIFICATIONS



Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×50

7.6±0.2

312

40.6

2435

1×70

9.2±0.2

32.8

42.4

2754

1×95

10.9±0.2

345

44.1

3108

1×120

12.2±0.2

35.8

45.5

3438

1×150

13.6±0.2

372

47.1

3805

1×185

15.2±0.2

38.8

48.9

4266

1×240

17.4±0.2

410

51.1

4925

1×300

19.5±0.2

43.1

53.5

5666

1×400

22.0±0.2

45.6

56.2

6598

1×500/35

24.8±0.2

492

62.5

8205

1×630/35

28.2±0.2

52.6

66.3

9771

1×800/35

34.0±0.2

58.4

72.2

11950



Contact us for more details

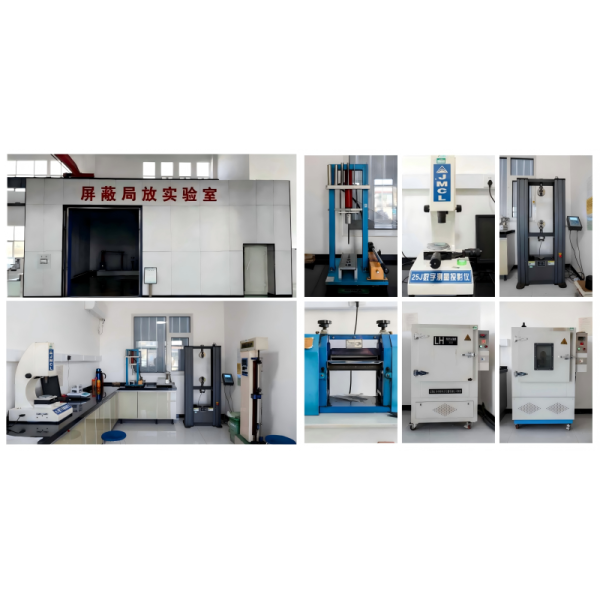

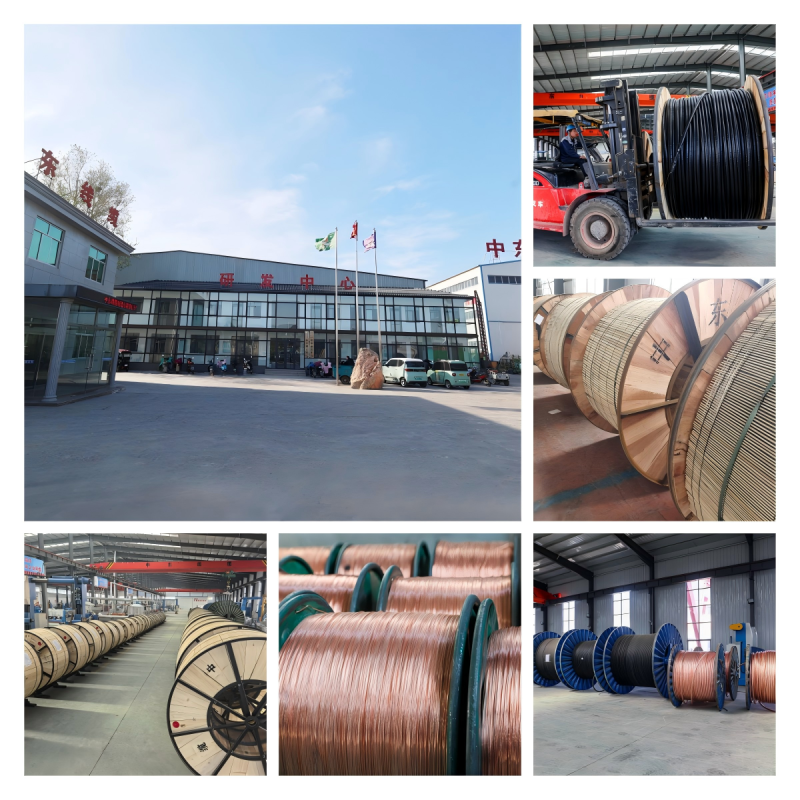

OUR FACTORY


500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids


500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids



PROJECTS


500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids

PARTNERS


500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids


WHY US


500mm2 630mm2 800mm2 SWA Armoured Cable 35kV CU/XLPE/CTS/SWA/PVC for Urban Underground Power Grids



FAQ

  • Q: What international certifications do your cables comply with?
    A: Our cables are fully certified to IEC, CE, EAC, BS and local standards ETC. All products come with complete certification documents for customs clearance and project approval.
  • Q: Can you provide customized cable solutions?
    A: Yes. We offer OEM/ODM services for custom conductor cross-sections (from 1.5mm² to 1000mm²), voltage ratings (low/medium/high voltage), armouring types (SWA/AWA/galvanized steel) and sheath materials (PVC/LSZH/XLPE).
  • Q: What is the lead time for cable orders?
    A: For standard cables, the lead time is 7–30 working days for bulk orders. Customized cables require 20–30 working days, depending on the complexity of specifications and order volume.
  • Q: How do you ensure product quality during production?
    A: We implement strict quality control (QC) at every stage: raw material inspection, online production testing, and final electrical/mechanical performance checks (e.g., voltage withstand, insulation resistance, tensile strength tests). All products pass 100% inspection before shipment.
  • Q: Do you provide free samples?
    A: We offer free samples for quality testing. The customer only needs to cover the shipping cost.
  • Q: Can you provide technical support for cable installation?
    A: Yes. We provide detailed installation manuals, and our technical team is available 24/7 to offer guidance on cable routing, armouring handling, and joint termination. On-site support can be arranged for large-scale projects.
  • Q: What is your warranty policy for cables?
    A: We provide a 12–24 month warranty for all our cables, depending on the product type. During the warranty period, we will replace or repair any defective products caused by manufacturing issues free of charge.
  • Q: What is the minimum order quantity (MOQ) for cables?
    A: We have a flexible MOQ requirement. For customized cables, the MOQ is determined by the specific specifications, and we can accommodate small trial orders for new customers.
  • Q: How do you package and ship the cables?
    A: Cables are wound on sturdy wooden or steel reels, wrapped with waterproof plastic film to prevent moisture damage. We ship via sea freight (FCL/LCL) for bulk orders and air freight for urgent small orders, with full tracking provided.
