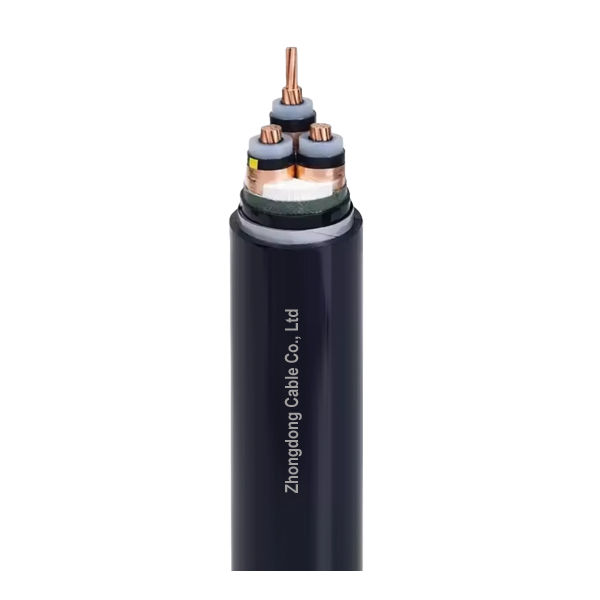

Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground
Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground
Specifications
Brand Name :
Medium Voltage Wire
Model Number :
Medium Voltage
Certification :
ISO,CCC,TUV,CE,VDE
Place of Origin :
Hebei，China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C,T/T
Supply Ability :
100KM/WEEK
Delivery Time :
10Days
Packaging Details :
Steel Wooden Drum
Insulation Material :
xlpe
Conductor Material :
Copper
Sheath :
PVC
Cores :
1 core, 3 cores
Armour :
Steel Tape Armoured
Description

Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground

Applications

These cables are used for electricity supply in medium voltage installation system, they are suitable for installation in indoors and outdoors, in cable ducts, underground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage.


Construction

Copper Core: Provides superior conductivity and durability for reliable electrical transmission.
PVC Sheath: Ensures excellent flexibility and long-term reliability under various conditions.
Low Voltage (15kV): Suitable for safe use in industrial and solar projects requiring low-voltage distribution.
Cross-linked Polyethylene (XLPE): Offers enhanced insulation properties and superior heat resistance up to 90°C.
Armouring: Steel Tape Armoured


Characteristics

Voltage Rating Uo/U: 12/20kV

Maximum operating temperature of conductor:+90℃

Operating ambient temperature: -15℃~+55℃

Cable laying temperature:Not less than 0℃(When the ambient temperature is below 0℃, the cable should be preheated.)

Minimum Bending Radius: Single core:15D Multicire: 12D (D is the actual outer diameter of the cable)

Specification


Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

Specs
mm²

Conductor diameter
mm

Outer thickness of insulation
±1.0mm

Approx outer diameter of cable
mm

Approx cable weight
kg/km

1×35

6.6±0.2

20.0

27.2

1167

3×35

6.6±0.2

20.0

54.1

3935

1×50

7.6±0.2

21.0

28.2

1319

3×50

7.6±0.2

21.0

56.6

4480

1×70

9.2±0.2

22.6

30.0

1589

3×70

9.2±0.2

22.6

60.2

5336

1×95

10.9±0.2

24.3

31.7

1897

3×95

10.9±0.2

24.3

64.2

6387

1×120

12.2±0.2

25.6

33.2

2186

3×120

12.2±0.2

25.6

67.3

7326

1×150

13.6±0.2

27.0

35.9

2821

3×150

13.6±0.2

27.0

70.6

8340

1×185

15.2±0.2

28.6

37.6

3250

3×185

15.2±0.2

28.6

74.5

9705

1×240

17.4±0.2

30.8

40.0

3888

3×240

17.4±0.2

30.8

81.0

12490

1×300

19.5±0.2

32.9

42.5

4583

3×300

19.5±0.2

32.9

85.9

14635

1×400

22.0±0.2

35.4

45.1

5467

3×400

22.0±0.2

35.4

91.9

17515

1×500

24.8±0.2

39.0

49.1

6677

3×500

24.8±0.2

39.0

100.2

21345

1×630

28.2±0.2

42.4

52.8

8180

3×630

28.2±0.2

42.4

108.1

26055

1×800

34.0±0.2

48.2

58.8

10265



Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground


Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground

Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground

Steel Tape Armored Power Cable CU/XLPE/STA/PVC Medium Voltage for Industrial Railway Underground

FAQ


1.What is our payment term?

Our payment term is T/T 30% advanced, then the balance paid before picking up the goods or L/C at sight.


2.What is the lead time?
The lead time usually is 7– 30 working days.

3.What is the package of the cable?
The package is usually wooden drum or steel wooden drum or coil.also according to customer’s requirement.

4.Could we provide the free sample for customer?
Sure, we provide the free sample for customer to checking.

5.Does your company accept OEM production?
Yes, could print your company name.
