Specifications
Brand Name :
E-link
Model Number :
LNK-IMC1200GP-SFP
Certification :
ROHS,FCC,CE,ISO9001
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Carton Packaging
Mounting Options :
DIN-Rail/Wall-mount
Dimensions (WxDxH) :
95 x 70 x 30 mm
Operating Temperature :
-40°C to 75°C (-40°F to 167°F)
Storage Temperature :
-40°C to 85°C (-40°F to 185°F)
Input Power :
12~48VDC, 4-pin terminal block
Power Consumption :
65W Max
Optical Port :
1 x SFP 1000Base-X or 100Base-FX (auto detection)
Description

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 30W PoE+ Media Converter


Advantages

► 2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12~48VDC Terminal Block Power Input

► Supports DIN-Rail & Wall-mount installation

► Environmentally hardened -40°C to 75°C
(-40°F to 167°F) operating temperature


Overview

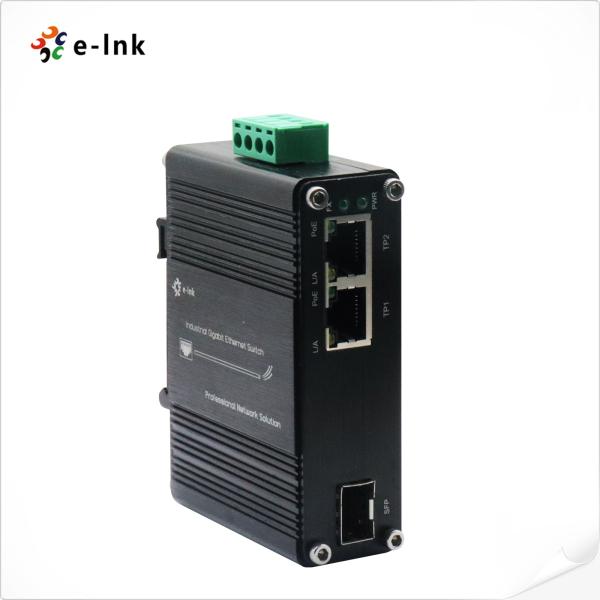

LNK-IMC1200GP-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. The Ethernet port support high power PoE (Power Sourcing Equipment) which complies with IEEE802.3at standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMC1200GP-SFP supports 10/100/1000Base-T with 30W PoE+ and 100/1000Base-X SFP Port. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed.




Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 30W PoE+ Media Converter



Application

Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T 30W PoE+ Media Converter



Ordering Information

Model

Description

LNK-IMC1200GP-SFP

Hardened 2-Port 10/100/1000BASE-TX to 100/1000BASE-X SFP Media Converter with PoE+

SFP Options

► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).

► SFP module is to be purchased separately.

Mounting Options

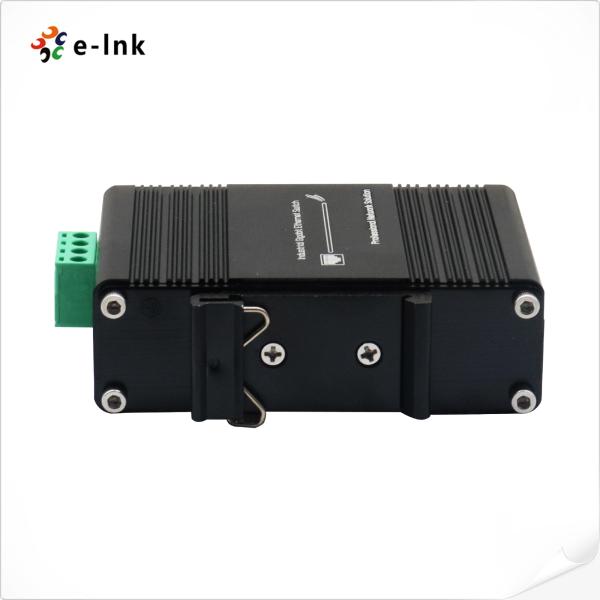

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block

► Power Supply is to be purchased separately.
