Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-M3011-SFP
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Ethernet Media Converter Standard Export Package
Keywords :
SFP Media Converter
Power supply :
DC 5~15V (Type-C)
Power consumption :
<3W
Operating humidity :
5% ~ 90% non-condensing
Maintaining temperature :
-40~70ºC
Maintaining humidity :
78 x 27 x 18 mm
Description

Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

SFP Media Converter Advantages

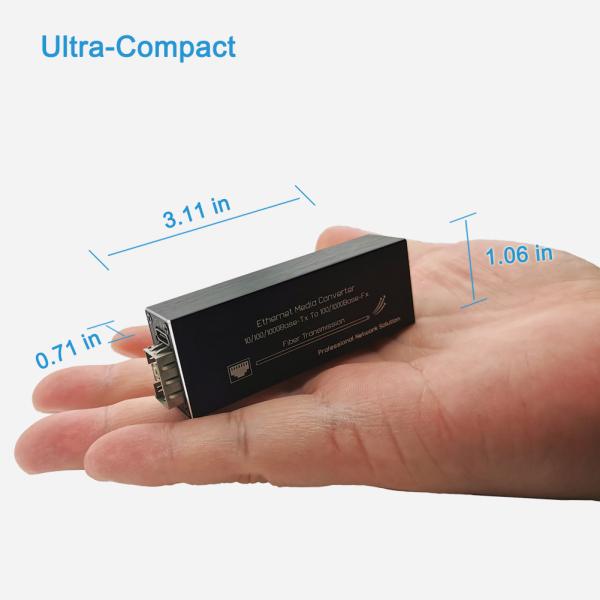

►Smallest media converters available; tuck the unobtrusively behind a PC
►10/100 /1000Base-T to 100/1000Base-X SFP
►SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
►USB-powered for portability, or use 5~15VDC wide range power input
►Ultra compact and weigh less than 2 ounces
►Support 9k jumbo frame
►Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
►Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost
►Including a Power Supply

SFP Media Converter Overview

LNK-M3011-SFP 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn’t available.

SFP Media Converter Technical Indexes

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Fiber Port

SFP - 100/1000M adaptive

Wavelength

850nm/1310nm/1550nm (Based on SFP Module used)

Transmission distance

Fiber Cable: Depends on SFP Module

Category-5 twisted pairs: 100m

Port

One RJ45 port: for connecting with STP/UTP cat5/6 twisted pairs

One Optical port: SFP

Conversion means

Media conversion

LFP

Not Support

BER

<10-9

MTBF

100,000 hours

LED indicator

PWR (Power supply)

TX (LINK100/1000, TP cable rate 100/1000M)

FX/ACT (Optical link action /TP cable packet forwarding action)



Micro Mini 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter
