LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports
Specifications
Brand Name :
E-link
Model Number :
LNK-LED108G
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Fiber Converter Standard Export Package
Keywords :
LED Screen Fiber Converter
Dimensions (WxDxH) :
150 x 115 x 50 mm
Resolution :
1920*1080@60Hz
Weight :
0.6Kg
Operating Temperature :
-40°C to 80°C (-40°F to 176°F)
MTBF :
> 200,000 hrs
Description

LED Screen Fiber Converter with 1x10G SFP+ Fiber Port + 8 x 10/100/1000M Ethernet RJ45 Ports

LED Screen Fiber Converter Advantages

· 1 x 10G SFP+ fiber optical port

· 10 x Gigabit Ethernet ports, PoE optional

· supports RJ45 ports 10/100/1000M and Full Duplex/Half Duplex auto-negotiation

· Not support VLAN

LED Screen Fiber Converter Overview

The E-link LNK-LED108G fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

LED Screen Fiber Converter Technical Indexes

Interface

Connector:

8 x 10/100/1000M RJ45

Optical Port:

1 x 10G SFP+

Distance

Depend on SFP+ modules used, 20km recommended.

Electrical and Mechanical

Input Power:

12~48VDC (Non PoE)

48~57VDC (PoE)

Redundant Power (6-pin Terminal Block)

Power Consumption:

5W Max (PoE in use)

253W Max (PoE not in use)

Resolution

1920*1080@60Hz

Compatible brand

NovaStar, Colorlight

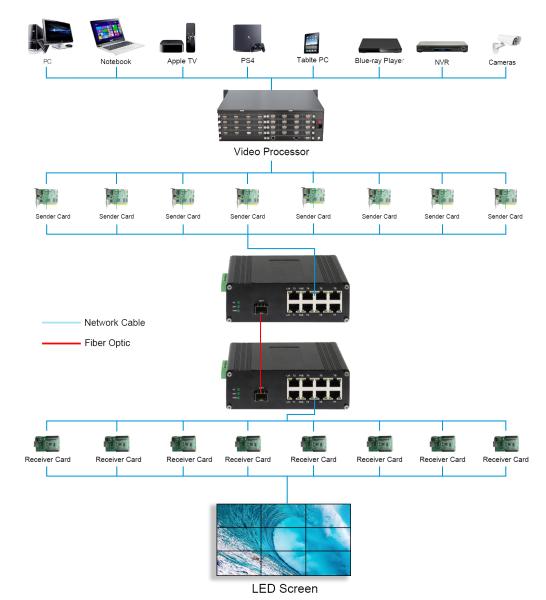

Connection method

Used in pairs, each ports must be connected accordingly,

Such as Device A’s Port-1 must link to Device B’s Port-1

Dimensions (WxDxH):

150 x 115 x 50 mm

Weight:

0.6Kg

Casing:

Aluminum Case

Mounting Options:

DIN-Rail

LED Screen Fiber Converter Ordering Information

Model

Description

LNK-LED108G

Industrial LED Screen Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports.

LNK-LED108GP

Industrial LED Screen PoE Fiber Converter with 1x10G SFP+ Port + 8 x 10/100/1000M Ethernet RJ45 Ports.
