10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot
10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot
10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot
10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot
10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot
10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot
10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot
10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot
Specifications
Brand Name :
E-link
Model Number :
LNK-3011-SFP
Certification :
ISO9001,CE,ROHS,FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negociate
Payment Terms :
T/T, Western Union, MoneyGram, PayPal
Supply Ability :
1000/Month
Delivery Time :
3-5 working days
Packaging Details :
Media Converter Standard Carton Packaging
Wavelength :
850nm/1310nm/1550nm, depend on SFP module
BER :
<10-9
MTBF :
100,000 hours
Power supply :
5-12V DC
Operating temperature :
-10~55ºC
Dimensions (W x D x H) :
94 x 71 x 26 mm
Description

10/100/1000Base-T to 100/1000Base-F Gigabit Ethernet Fiber Media Converter SFP Slot

Model: LNK-3011-SFP

Overview

LNK-3011-SFP is an Ethernet media converter that converts media transmission between UTP Copper

cabling and fiber SFP (Small Form-Factor Pluggable) Transceivers. It complies with IEEE802.3, IEEE802.3u,

IEEE802.3z and IEEE802.3ab standards. Presently it supports two types of media network connections:

10Base-T/100Base-TX/1000Base-T, and 100/1000Base-SX/LX, inter-converting electrical signals of 10Base-

T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission

distance of network from 100m via copper cable and up to 120km via fiber optical cables.

Technical Indexes

Parameter Specifications
Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 100/1000Base-SX/LX Gigabit Ethernet
Wavelength 850nm/1310nm/1550nm, depend on SFP module
Transmission distance multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)
single mode Dual-fiber: 20/40/60/80 Km
single mode Single fiber: 20/40/60/80 Km
Category-5 twisted pairs: 100m
Port One RJ45 port: for connecting with STP/UTP category-5 twisted pairs
One optical port: SFP 3.3V
Conversion means Media conversion
BER <10-9
MTBF 100,000 hours
LED indicator

PWR (power),

FDX (full duplex)

FX (optical link action),

1000M (TP cable rate 1000M),

100M (TP cable rate 100M),

Link/Act (TP cable packet forwarding action)
Power supply 5-12V DC
Power consumption 5W
Operating temperature -10~55ºC
Operating humidity 5%~90%
Maintaining temperature -40~70ºC
Maintaining humidity 5% ~ 90% non-condensing

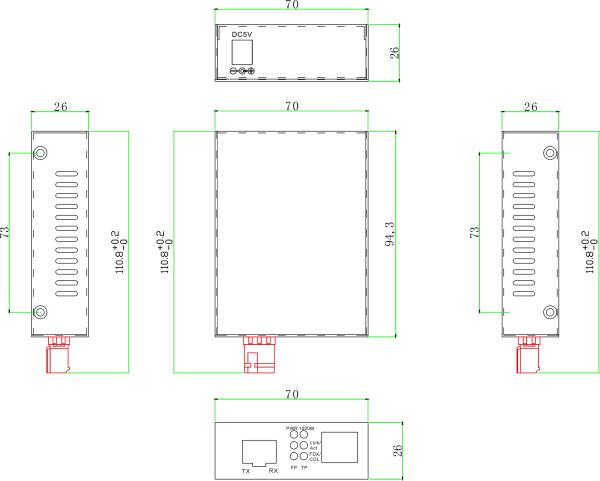

Dimensions (W x D x H) 94 x 71 x 26 mm

Ordering Information

Model Description
LNK-3011-SFP 10/100/1000Base-T to 1000Base-F,SFP slot, excl. SFP module, standalone, external power adaptor
