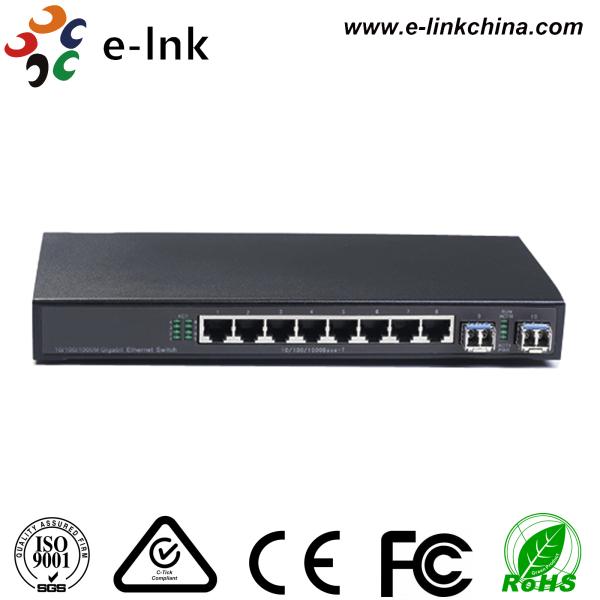

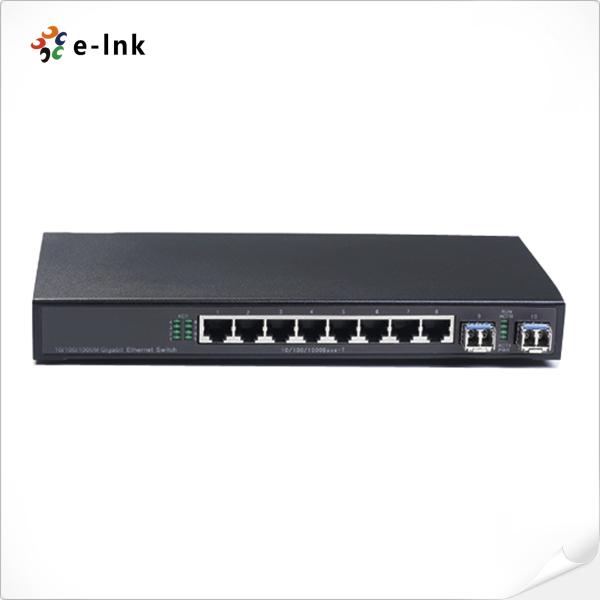

8G+2SFP Ring Type Fiber Ethernet Switch
8G+2SFP Ring Type Fiber Ethernet Switch
8G+2SFP Ring Type Fiber Ethernet Switch
8G+2SFP Ring Type Fiber Ethernet Switch
8G+2SFP Ring Type Fiber Ethernet Switch
8G+2SFP Ring Type Fiber Ethernet Switch
Specifications
Brand Name :
E-link
Model Number :
LNK-R2800G-SFP
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Supply Ability :
100000PCS/Month
Delivery Time :
7-10 working days
Packaging Details :
Industrial PoE Switch Standard Carton Packaging
Dimension :
70mm (H)×290mm(W)×185mm (D)
Operating Temperature: :
-10~60℃
Conversion means :
Media conversion
Power consumption :
10W
Power :
DC12V/1A
Description

8G+2SFP Ring Type Fiber Ethernet Switch

Product Advantages

► Support maximum 8 10/100/1000M adaptive RJ45 ports and 2 1000M SFP port uplink

► It can build 1000M fiber internet, support RSR (Rapid Super Ring technology)

► Support SFP hot plug

► Support Jumbo frames

► Support 100/1000M port full rate, full-duplex non-blocking forwarding

► Support 16K MAC learning, 2Mbit storage and forward cache space, 18G back plane bandwidth

► Support to provide wall-mounted hanger better for installation if need, metal casing better for heat dissipating

Overview

LNK-R2800G-SFP series is ten ports 100M/1000M Ethernet Switch, provides 8 10/100/1000M adaptive RJ45 ports and 2 Gigabit SFP port uplink, supports Web management and SNMP management(optional).

LNK-R2800G-SFP supports SFP hot plug; support RSR(Rapid Super Ring) technology. Fiber port supports dual-fiber multi-mode, dual-fiber single-mode and single-fiber single-mod; Support to transmit HD video flow; applies to Security system, electronic power system and traffic system requirements.

Technical Indexes

Parameter

Specification

Standard

IEEE802.3 10Base-T Ethernet
IEEE802.3u 100Base-TX Fast Ethernet,
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
 IEEE802.3x Flow control
IEEE802.1q VLAN
IEEE802.1p QoS
IEEE802.1d Spanning Tree

Wavelength

SFP Module: 850nm/1310nm/1490nm/1550nm

Distance

1000M SFP
multi-mode:220m (fiber 62.5/125μm)/ 550m(fiber 50/125μm)
Single-mode:10/20/40/60/80/100/120Km
Single-fiber single-mode: 10/20/40/60/80/100/120Km
Cat5:100m

Port

8 1000M RJ45 ports : 10/100/1000Mbps
2 1000M SFP: 1 Gbps, 1000M SFP

MAC

16K

Buffer memory space

2Mbit

Bit error rate

<1/1000000000

MTBF

100000 hours

Power

DC12V/1A

Power consumption

10W

Working

temperature

-10~60℃

Storage temperature

-40~80℃

Humidity

5%~90% non-condensing

Dimension

70mm (H)×290mm(W)×185mm (D)

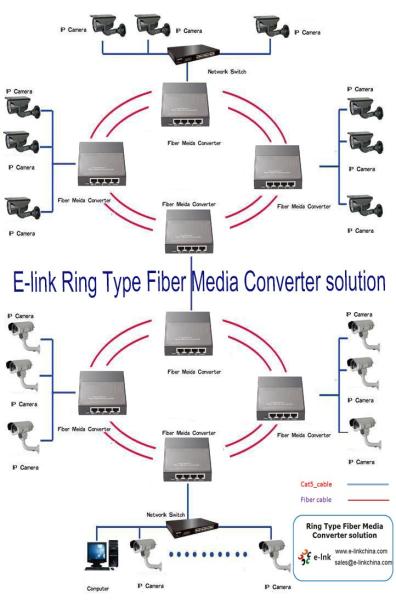

Application

8G+2SFP Ring Type Fiber Ethernet Switch
