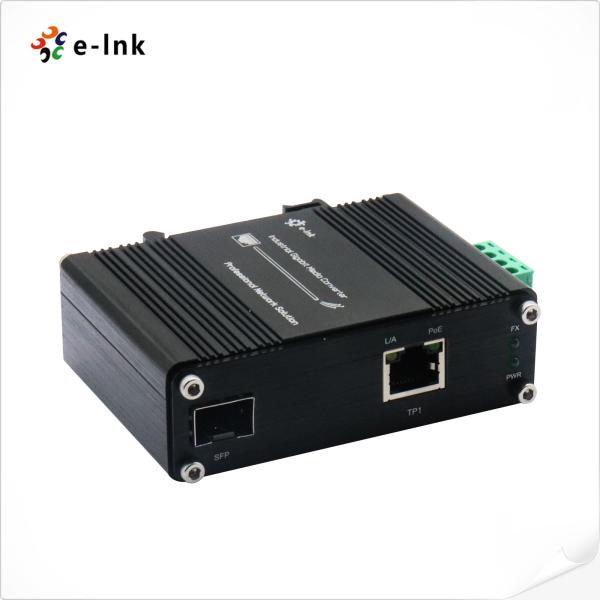

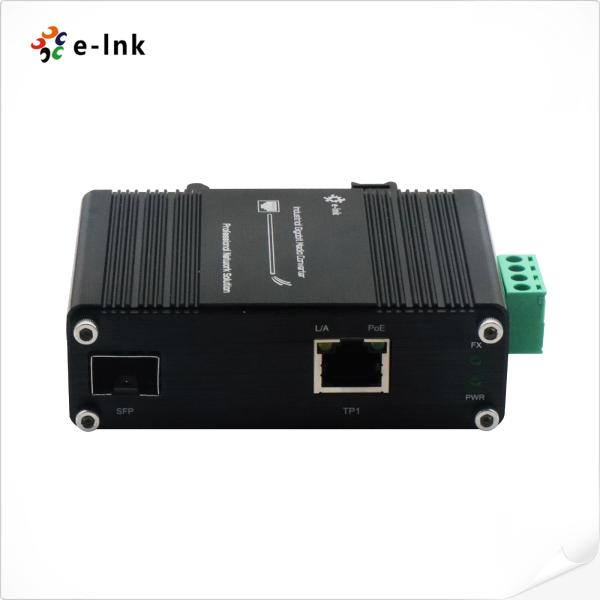

OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W
Specifications
Brand Name :
E-link
Model Number :
LNK-IMC3012P90-SFP Series
Certification :
ISO
Place of Origin :
China
MOQ :
1 unit
Price :
US$75-90/pc
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Supply Ability :
10000pcs/Month
Delivery Time :
5-10 working days
Packaging Details :
Fiber Media Converter Standard Package
Standards :
IEEE802.3bt Power over Ethernet
Input Power :
48~57VDC, 4-pin terminal block
Power Consumption :
95W Max.
Dimensions (WxDxH) :
95 x 70 x 30 mm
Weight :
0.25Kg
Mounting Options :
DIN-Rail / Wall-mount
Description

OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W

​Fiber Media Converter Advantages

  • 1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
  • 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection)
  • Supports IEEE802.3af/at PoE+(30W) or IEEE802.3bt PoE++ (90W)
  • IEEE 802.3az Energy Efficient Ethernet (EEE) compliant
  • Supports Full/Half-duplex, Auto-negotiation
  • 48~57VDC Terminal Block Power Input

Specifications

Ethernet
Standards: IEEE802.3 10Base-T
IEEE802.3u 100Base-TX/FX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-X
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE802.3af Power over Ethernet
IEEE802.3at Power over Ethernet
IEEE802.3bt Power over Ethernet
Processing Type: Store-and-Forward
Forward Filter Rate: 14,880pps (10Mbps)
148,800pps (100Mbps)
1,488,000pps (1000Mbps)
Packet Buffer Memory: 1 Mbit
Max Packet Length: 9K Bytes
Address Table Size 2048K MAC Addresses
Interface
Connector: 1x RJ45
Optical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power: 48~57VDC, 4-pin terminal block
Power Consumption: 95W Max.
LED Indicators:
PWR: Power Status
PoE: PD Plug Status
RJ45: LINK/Activity
SFP: LINK
Dimensions (WxDxH): 95 x 70 x 30 mm
Weight: 0.25Kg
Casing: Aluminum Case
Mounting Options: DIN-Rail / Wall-mount
Environmental
Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Relative Humidity: 5% to 95% non-condensing
MTBF > 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS

EMI:

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024: 2010

EMS:

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

OEM Mini Industrial 100/1000M Ethernet To Sfp Media Converter POE++ Powered 90W

Order Information

Model Description
LNK-IMC3012P90-SFP Hardened 10/100/1000BASE-TX to 100/1000BASE-X SFP Ethernet Media Converter with 90W PoE++
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
