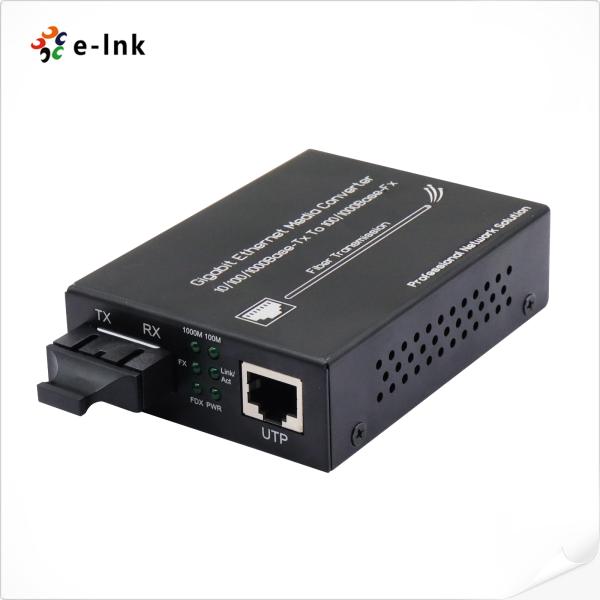

Micro type Media Converter with 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx Ethernet
Micro type Media Converter with 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx Ethernet
Specifications
Brand Name :
E-link
Model Number :
LNK-3011 series
Certification :
Iso9001, CE, ROHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
US$21 - US$28/pc
Payment Terms :
T/T,Western Union,MoneyGram,PayPal
Supply Ability :
10000/Month
Delivery Time :
1-3 working days
Packaging Details :
Fiber Media Converter Standard Carton Packaging
Wavelength :
850nm/1310nm/1550nm
Conversion means :
Media conversion
MTBF :
100,000 hours
Power supply :
DC 5V / 1A
Maintaining temperature :
-40~70ºC
Dimensions (W x D x H) :
71 x 94 x 26 mm
Description

Micro type 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx Ethernet Media Converter

Model: LNK-3011 series


Overview

The Micro type 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx Ethernet Media Converter
(LNK-3011 Series) is a high-performance network conversion device that leverages advanced
switching technology to achieve seamless media conversion. As a Micro type 10 / 100 / 1000
Base-Tx to 100 / 1000Base-Fx Ethernet Media Converter, it strictly complies with IEEE802.3,
IEEE802.3u, IEEE802.3z, and IEEE802.3ab standards, ensuring reliable integration into
diverse gigabit network infrastructures.
​
This Micro type 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx Ethernet Media Converter
supports two key media network connections: 10Base-T/100Base-TX/1000Base-T (copper)
and 1000Base-SX/LX (fiber). It efficiently inter-converts electrical signals from 10Base-T/100
Base-TX/1000Base-T twisted pairs with optical signals from 1000Base-SX/LX, breaking through
the 100m distance limit of copper cables by extending transmission up to 120km via fiber optic
cables, greatly expanding gigabit network coverage.
​
A standout feature of this Micro type 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx Ethernet
Media Converter is its support for diverse fiber transmission modes, including multi-mode dual
fiber, single mode dual fiber, and single mode single fiber, adapting to various installation
environments and distance requirements. Its compact micro design ensures easy deployment in
space-constrained setups, while the adaptive 10/100/1000Mbps capability guarantees compatibility
with both legacy and modern network devices, making it an ideal solution for high-speed network
extension needs.


Features

► Supporting inter-conversion between adaptive 10Base-T/100Base-TX/1000Base-T with 1000Base-SX/LX

► 10/100/1000M media converter with SFP slot is available

► Supporting full-duplex and half-duplex and its auto-sensed

► Supporting auto-sense of MDI/MDI-X, facilitating system commissioning and installation

► Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber


Technical Indexes

Parameter

Specifications

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Wavelength

850nm/1310nm/1550nm

Transmission distance

multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)

single mode Dual-fiber: 20/40/60/80 Km

single mode Single fiber: 20/40/60/80 Km

Category-5 twisted pairs: 100m

Port

One RJ45 port: for connecting with STP/UTP category-5 twisted pairs

One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm)

Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm)

Single mode Single fiber: SC/FC/LC(SFP) (9/125μm)

Conversion means

Media conversion

BER

<10-9

MTBF

100,000 hours

Power supply

DC 5V / 1A

Power consumption

5W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions (W x D x H)

71 x 94 x 26 mm


Order Information

Item

Description

LNK-3011

10/100/1000Base-T to 1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor

LNK-3011S-20

10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor

LNK-S3011-20

10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor


Application

Micro type Media Converter with 10 / 100 / 1000Base-Tx to 100 / 1000Base-Fx Ethernet
