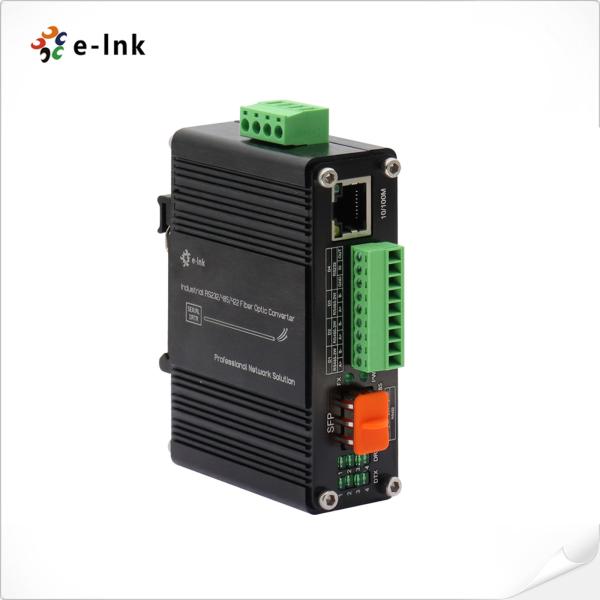

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
Specifications
Brand Name :
E-link
Model Number :
LNK-IMCRS1100-SFP
Certification :
CE, RoHS, FCC
Place of Origin :
China
MOQ :
1pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability :
1000pcs/month
Delivery Time :
5-12 working days
Packaging Details :
Media Converter Standard Export Package
Key word :
Media Converter
Input Power: :
12~48VDC
Temperature :
-40°C to 75°C
Weight :
0.25Kg
Dimension (LxWxH) :
95 x 70 x 30 mm
The warranty :
3-year warranty
Description

Media Converter Advantages

► 1 x 10/100BASE-T RJ45 port with auto MDI / MDI-X function

► 1 x SFP port,100Base-FX

► 1 x RS232/RS485/RS422 Serial port

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

► Extensive LED indicators for network diagnostics

Technical Indexes

Interface
Ethernet Port: 1 x RJ45
Optical Port: 1 x SFP 100Base-FX
Serial Port 1 x RS232/RS485/RS422 Industrial Terminal
RS232/RS485/RS422
Serial Interface Industrial Terminal
Signal Ports

1Ch RS232 - 1Mbps

1Ch R485 - 1Mbps

2Ch RS485H- 2Mbps

2Ch RS485H can be grouped into 1Ch High Speed RS422
Baud Rate RS485/RS422/RS232:4800-460800
Standard EIA /TIA RS232/485/422
Serial Distance RS232: 15 meters, RS485/422: 1000 meters

Overview

LNK-IMCRS1100-SFP is a DIN rail type media converter that supports external SFP Modules and meets EN55022 standard. It is a hardened grade product whose operating temperature range is -40°C to +75°C. LNK-IMCRS1100-SFP supports 10/100Base-T and 100Base-X SFP and RS232/RS485/RS422 serial data.

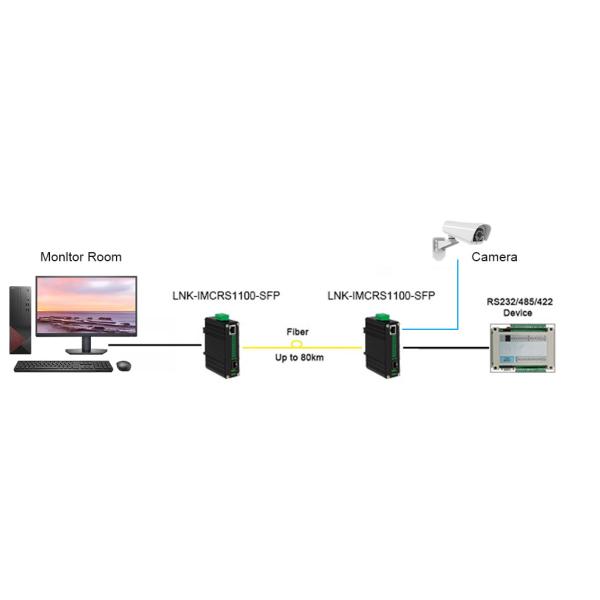

Application

Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422

Ordering Information

Model Description
LNK-IMCRS1100-SFP Mini Industrial 10/100Base-T to 100Base-X SFP Fiber Ethernet Media Converter with 1Ch RS232/RS485/RS422
SFP Options ► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
► SFP module is to be purchased separately.
Mounting Options ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options ► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
► Power Supply is to be purchased separately.
