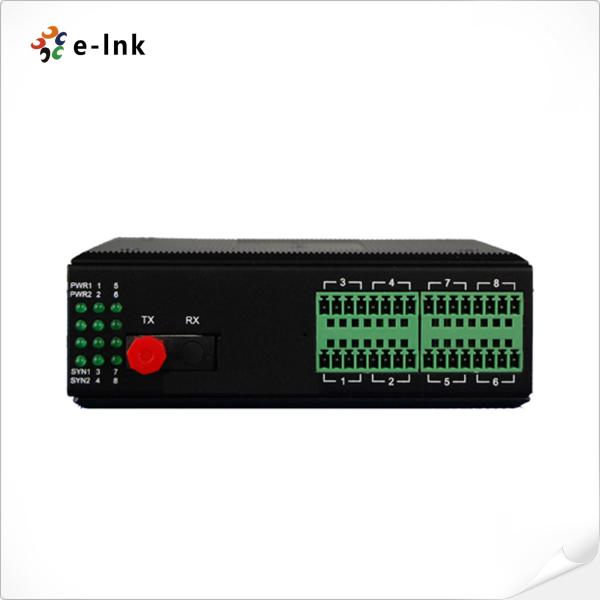

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter
Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter
Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter
Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter
Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter
Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter
Specifications
Brand Name :
E-link
Model Number :
LNK-GYS101 LNK-GYS102 LNK-GYS104
Certification :
ROHS,FCC,CE
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiation
Payment Terms :
L/C,T/T,Western Union,MoneyGram,Paypal
Supply Ability :
1000 pcs/month
Delivery Time :
3-12 working days
Packaging Details :
Converter Standard Export Package
Keywords :
Fiber Media Converter
Operating Temperature :
-40°C ~ 75°C
Dimensions (WxDxH): :
133mm×40mm×120mm (H×W×D)
Humidity :
5%~95 % (no condensation)
Weight :
685g
Maximum transmission distance :
20Km
Description

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter


Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter Advantages

► Based on proprietary integrated circuit;

► Provide 1-4 independent serial ports (RS232/422/485 optional) channel, physical isolation from each other, there is no correspondence between the

► RS232 / 485/422 interface, optional three data, RS232 supports 3-wire RS232 (TXD, RXD, GND), flow control support CD, DSR, CTS,

► RS232 /485/422 channels can be transmitted from 0-115200 baud asynchronous serial data adaptive

► Serial port interface lightning reach IEC61000-4-5 (8 / 20μS) differential mode: 6KV, impedance (2Ω); Common mode: 6KV, impedance (2Ω) standard

Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter Overview


The converter is designed to provide the most versatile connection possible between two RS-232/422/485 serial equipment using fiber optic cable. It allows any two pieces of serial equipment to communicate full-duplex over typical duplex fibers, or over optional single fiber up to 20km. The Din-rail mountable design makes it ideal for industrial cabinets and enclosures. For industrial environment, the converters are designed with the following enhanced features exceeding that of commercial media converters:


Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter Technical Indexes

Fiber

Multi-mode Fiber:50/125um, 62.5/125um

Maximum transmission distance

2Km @ 62.5/ 125um multi mode

fiber, attenuation (3dbm/km)Wave Length

820nm

Transmitting power

-12dBm (Min) ~-9dBm (Max)

Receiver sensitivity

-28dBm (Min)

Link budget

16dBm

Single-mode Fiber:8/125um, 9/125um

Maximum transmission distance

20Km

Transmission distance

20Km @ 9 / 125um single mode fiber, attenuation (0.35dbm/km)

Wave Length

1310nm

Transmitting power

-9dBm (Min) ~-8dBm (Max)

Receiver sensitivity

-27dBm (Min)

Link budget

18dBm

RS232/422/485 Interface

Rate

0-115200Kbps

Interface characteristics

EIA RS232 RS422 RS485

Connector

Phoenix terminal

Working environment

Working temperature

-40°C ~ 75°C

Working Humidity

5%~95 % (no condensation)

Storage temperature

-40°C ~ 80°C

Mechanical:

Dimensions

133mm×40mm×120mm (H×W×D)

Casing

IP30 protection, Metal case

Installation

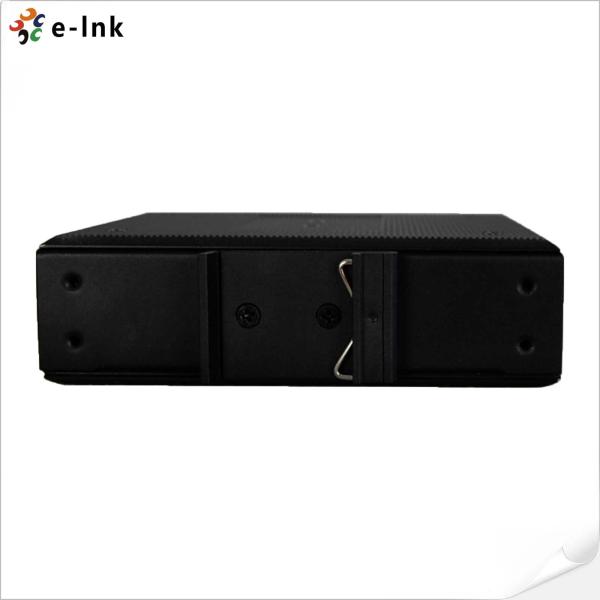

35mm DIN-Rail, Wall Mounting

Weight

685g


Industrial 1~4Ch RS232/RS422/RS485 Serial Fiber Media Converter Ordering Information

LNK-GYS101

Industrial 1Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+1xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)

LNK-GYS102

Industrial 2Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+2xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)

LNK-GYS104

Industrial 4Ch RS232, RS22 or RS85 Serial Fiber Media Converter: 1xOptical port+4xRS232/RS485/RS422 port (Default FC, SFP or SC Fiber port optional)
