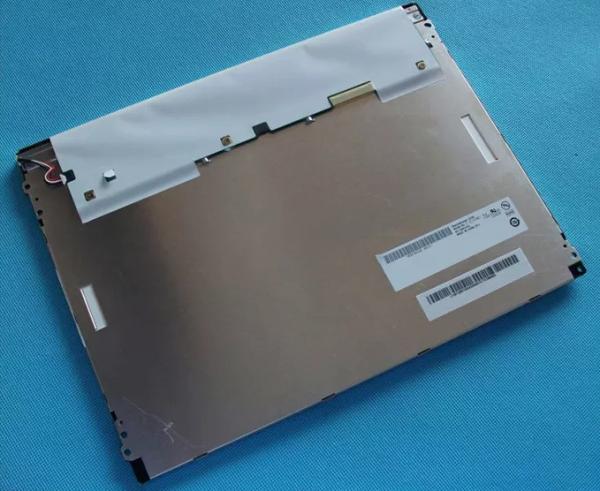

12.1 Inch AUO LCD Panel Display 800x600 LVDS G121SN01 V4 Anti Glare
12.1 Inch AUO LCD Panel Display 800x600 LVDS G121SN01 V4 Anti Glare
Specifications
Brand Name :
AUO
Model Number :
G121SN01 V4
Place of Origin :
TaiWan
MOQ :
500
Price :
pls contact us
Payment Terms :
Western Union,PAPLY,BANK TRANSFER
Supply Ability :
500
Delivery Time :
5-8 work days
Packaging Details :
standard Packaging
Panel Brand :
AUO
Panel Model :
G121SN01 V4
Panel Size :
12.1
Description
Specification
Industrial 12.1 inch 800x600 SVGA AUO TFT LCD Panel G121SN01 V4 with 450 nits and 20 pins LVDS cables
item
value
Type
TFT
Display Size
12.1 inch
Supplier Type
Agent
Place of Origin
Taiwan, China
Brand Name
AUO
Display size
12.1 inch
Resolution
800(RGB)x600 , SVGA
Active Area
246 (H) x 184.5 (V)mm
Outline
279.0(H) x 209.0(V) x 9.0(D)mm
Pixel Pitch
0.3075 x 0.3075mm
Arrangement
R.G.B. Vertical Stripe
Treatment
Anti-glare, Hardness 3H
Nominal Input Voltage VDD
3.3V
Support color
262K/16.2M , 55% NTSC
View angle
R/L/U/D 80/80/65/75(Deg)
Brightness
450 cd/m²
Contrast Ratio
700:1
Interface
LVDS (1 ch, 6/8-bit) , 20 pins
Backlight
WLED, 50k horus, with LED driver
Operate temperature
-30 ~ +85 (°C)
Storage temperature
-30 ~ +85 (°C)
Response time
25/10ms
Weight
580g
RoHS Compliance
RoHS Compliance
Display Mode
TN, Normally White

We also have other industrial LCD panels, pls contact to us for the further information

Panel Model Brand Size
X139BLB01.0 AUO 1.39"
H381DLN01.0 AUO 3.8"
H497TLB01.4 AUO 5.0"
G173HW01 V0 CELL AUO 17.3"
T320HVN05.A CELL AUO 31.5"
B080EAN04.1 CELL AUO 8.0"
T500HVN08.8 CELL AUO 50"
H546DAN01.5 AUO 5.5"
H546DAN08.0 AUO 5.5"
B080XAN03.5 AUO 7.9"
B080XAN03.2 AUO 7.9"
H499TAN05.0 AUO 5.0"
H520DAN01.1 AUO 5.2"

Application Of AUO LCD Panel

  1. Office Electronic Equipment: money counting machine, office phone set, copying mechine...
  2. Household Appliances: refrigerator, air conditioner, induction cooker, microwave ovens...
  3. Instruments: clinical thermometer, wire tester, digital watches, electronic weight scale...
  4. Medical Devices: sphygmomanometer...
  5. Sports Equipment: running machine...
  6. Industrial Control Equipment: remote control, punched-card machine...
  7. Information Terminal Display: POS...
  8. Security Products: elevator controller, electronic indicator...

Advantage Of AUO LCD Panel

  1. We are professional LCD module manufacture in China with precise and advanced equipments.
  2. High quality Control with CE,ROHS and so on approved.
  3. More than 10 years of industry experience and involved main markets all over the world
  4. Dedicated and professional sales team will offer you 24 hours online and immediate service
  5. OEM and ODM support,12 months warranty for all of our products
  6. Our mission is to help our customers achieve success, then fulfill our both dreams

Warranty:

1. All panels’ grade is promised strictly same as original factory’s standard.

2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.

3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.

4. ISO 9001 guarantee.
