A070VW04 V3 7.0 inch commercia lcd screen panel replacement 152.4×91.44 mm Active Area
A070VW04 V3 7.0 inch commercia lcd screen panel replacement 152.4×91.44 mm Active Area
Specifications
Brand Name :
AU Optronics
Model Number :
A070VW04 V3
Certification :
ISO9001
Place of Origin :
KOREA
MOQ :
1
Payment Terms :
T/T, Western Union, MoneyGram, T/T
Supply Ability :
500PCS/DAY
Delivery Time :
1-3 Working Days
Packaging Details :
Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Panel Type :
a-Si TFT-LCD , LCM
Panel Size :
7.0 inch
Resolution :
800(RGB)×600 , SVGA
Display Mode :
TN, Normally White, Transmissive
Active Area :
152.4×91.44 mm
Description

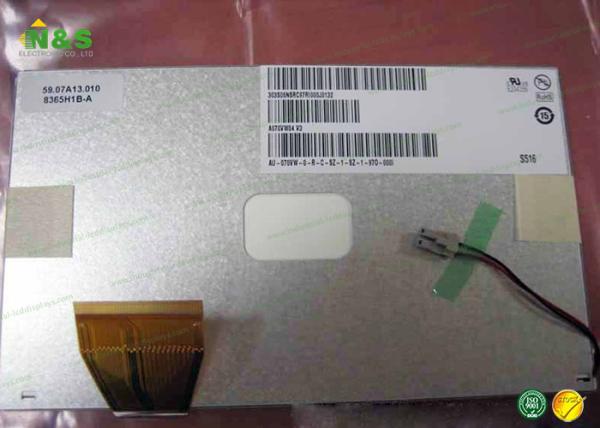

7.0 inch A070VW04 V3 AUO LCD Panel with 152.4×91.44 mm Active Area Normally White

A070VW04 V3 Information

Panel Size :
7.0 inch
Dot Resolution : 800(RGB)×480 (WVGA)
Pixel Configuration : RGB Vertical Stripe
Pixel Density : 133 PPI
Aspect Ratio : 15:9 (H:V)
Form Factor : Flat Rectangle Display
Dot Pitch : 0.0635×0.1905 mm (H×V)
Pixel Pitch : 0.1905×0.1905 mm (H×V)
Weight :
153.5±14g
Surface : Antiglare
Active Area : 152.4×91.44 mm (H×V)
Bezel Area : 154.4×93.44 mm (H×V)
Outline Dimension : 164×103 mm (H×V)
Outline Depth : 5.1±0.3 mm
Holes & Brackets : Without
Landscape or Portrait : Landscape type
Touch Panel :
Without
Display Mode :
TN, Normally White, Transmissive
Brightness : 200 cd/m² (Typ.)
Contrast Ratio : 300 : 1 (Typ.) (Transmissive)
Display Color : 16.7M (8-bit)
Response Time : 12/18 (Typ.)(Tr/Td)
Viewing Angle : 65/65/50/65 (Typ.)(CR≥10) (L/R/U/D)
White color Chromaticity : Wx:0.310; Wy:0.330
Sunlight Readable : N

What is our advantage?

Factory Experience: More than 6 years of experience in the agency & sourcing line of Hard-to-find LCD Screen replacements.

Delivery Quantity: 50-100 cartons shipped by DHL every week

Supply Ability: 100 pcs Panels per day.

Supply Area: All over the word (Most of North America, South America, Europe, Japan, Korea and more.)

Warranty: 12 months.

Here comes our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
T320HVN02.1 CELL AUO 31.5" 1920×1080
M270DAN01.1 CELL AUO 27.0" 2560×1440
T320HVN02.1 CELL AUO 31.5" 1920×1080
T500QVN03.0 CELL AUO 50" 3840×2160
H546DAN07.3 AUO 5.5" 1080×1920
