Specifications
Brand Name :
K & G
Model Number :
LS5-1600 / 2000 / 3000
Place of Origin :
Made in China
MOQ :
1 unit
Price :
FOB China USD20,000.00 up/ unit
Delivery Time :
Lead time 60 days
Packaging Details :
Seacase
Payment Terms :
T/T before shipment
Description

With 60 years of knife sharpening experience, our company provides the best knife sharpening technical solutions, therefore, Our LS5 Grinding Machine is fully equipped with knife sharpening tools.

MODEL : LS5 -1600 / 2000 / 3000

(Professional grinding High Speed Steel and Tungsten Carbide knives)

1.Machine base, high rigidity steel welded construction.

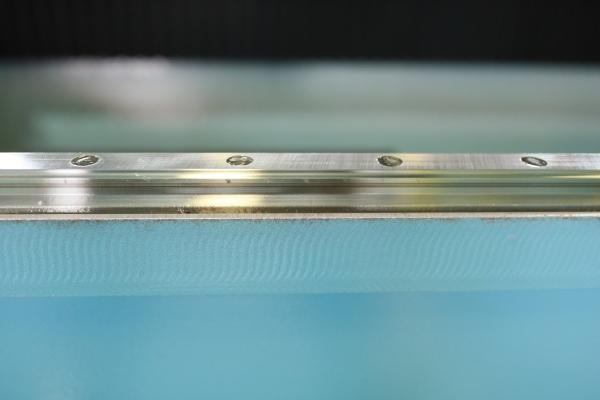

2.Linear guideways can achieve high precision and greatly enhanced moving accuracy.

3.Worktable features a division sinusoidal electro-magnetic chuck, providing sturdy construction and powerful magnetism.

4.Down feed system is driven by a servo motor and transmitted through a play free screw and controlled by electronic handwheel. The minimum feed amount is 0.001mm per grid, and the feed is smooth and accurate.

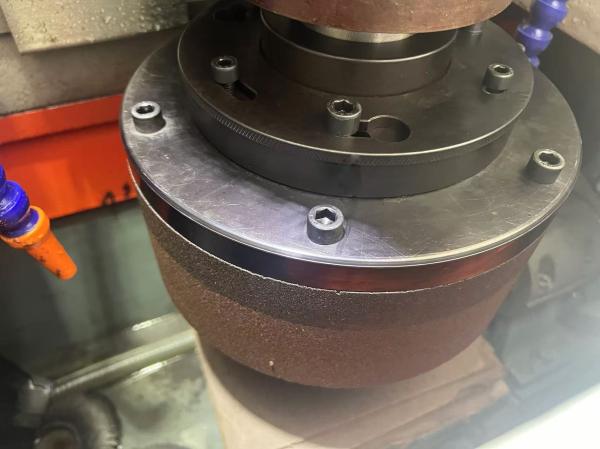

5.Grinding motor, with coolant through motor spindle and quick change wheel flange in design.

6.Grinding tool, ring wheels, segmental heads, SDC and CBN wheels.

7.Traverse drive is driven by a servo motor, using gear and rack transmission with stepless speed regulation, achieving a stable operation speed of 1-25 meters/min.

8.Coolant water through the hollow motor shaft and from the sides.

9.Lubrication system features an adjustable central electrical lubrication mechanism, which can adjust the automatic oil supply to the enclosed working area.

10.Electric cabinet equipped with a touch screen and control interface, is installed on the grinding head carriage.

Technical Parameter :

Grinding length 1600 / 2000 / 3000mm
Electro-magnetic chuck 1600 / 2000 / 3000mm x 160 / 200mm swivellable 90°degrees
Pass height 150mm
Down feed 0.001mm
Traverse drive speed 1-23 m/min
Guideways Linear guideways
Grinding wheel Ø255 X Ø195 X 125H mm
Gross power 13KW (3 phase / 380V / 50HZ)
Grinding motor 7.5 / 11KW (1450 RPM)
Down feed motor 0.75KW (Servo Motor)
Traverse drive motor 0.75KW (Servo Motor)
Water pump 0.4KW
Net weight 2000-3500kg (not include parts)
Machine main size L2000 +grinding length x W1150 x H1800 mm
Colour Blue + White

Re-sharpened Knives
