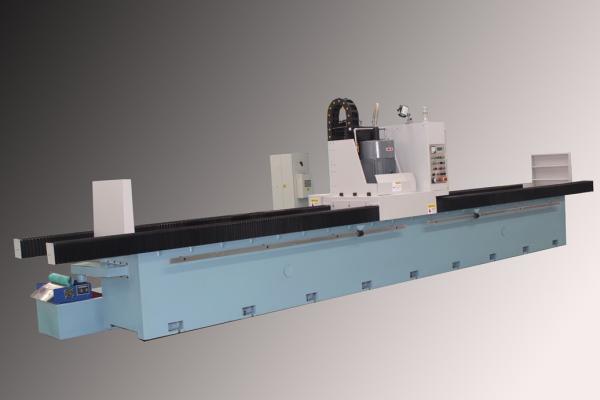

Heavy Duty Grinding Surface Machine
Heavy Duty Grinding Surface Machine
Heavy Duty Grinding Surface Machine
Heavy Duty Grinding Surface Machine
Heavy Duty Grinding Surface Machine
Heavy Duty Grinding Surface Machine
Specifications
Brand Name :
K & G
Model Number :
LS71-2000 /3000 /4000 /5000 /6000
Place of Origin :
Made in China
MOQ :
1 unit
Price :
FOB China USD40,000.00 up/ unit
Delivery Time :
Lead time 60 days
Packaging Details :
Seacase
Payment Terms :
T/T before shipment
Description

With 60 years of knife sharpening experience, our company provides the best knife sharpening technical solutions, therefore, Our LS71 Heavy Duty Grinding Surface Machine is fully equipped with knife sharpening tools.

MODEL : LS71 -2000 /3000 /4000 /5000 /6000
(Professional Grinding Knives Surface)

1.Machine base, high rigidity steel welded construction.

2.Linear guideways can achieve high precision and greatly enhanced moving accuracy.

3.Worktable features a division sinusoidal electro-magnetic chuck, providing sturdy construction and powerful magnetism.

4.Down feed system is driven by a servo motor and transmitted through a play free screw and controlled by electronic handwheel. The minimum feed amount is 0.001mm per grid, and the feed is smooth and accurate.

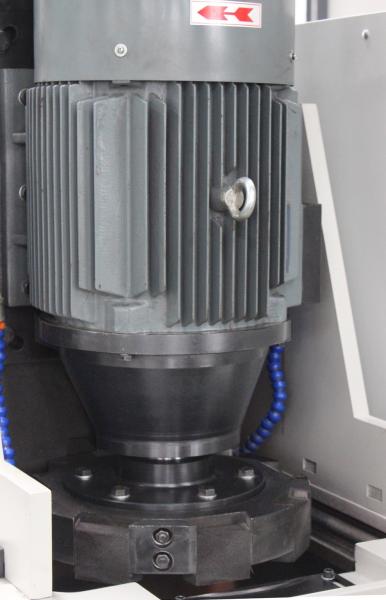

5.Grinding motor, with coolant through motor spindle and quick change wheel flange in design.

6.Grinding tool, ring wheels, segmental heads, SDC and CBN wheels.

7.Traverse drive is driven by a servo motor, using gear and rack transmission with stepless speed regulation, achieving a stable operation speed of 1-25 meters/min.

8.Coolant water through the hollow motorshaft and from the sides.

9.Lubrication system features an adjustable central electrical lubrication mechanism, which can adjust the automatic oil supply to the enclosed working area.

10.Electric cabinet equipped with a touch screen and control interface, is installed on the grinding head carriage.

Technical Parameter :

Grinding length 2000 /3000 /4000 /5000 /6000mm
Electro-magnetic chuck 2000 /3000 /4000 /5000 /6000mm x 320mm Fixed Table
Pass height 250mm
Down feed 0.001mm
Traverse drive speed 1-25 m/min
Guideways Linear guideways
Grinding wheel Ø475 Segmental heads (8 pcs)
Gross power 3 phase / 380V / 50HZ
Grinding motor 30KW (1500 RPM)
Down feed motor 0.75KW (Servo Motor)
Traverse drive motor 1.5KW (Servo Motor)
Water pump 100 L/min
Net weight 7000 up /kg
Machine main size To be advised per model
Colour Blue + White
