With 60 years of knife sharpening experience, our company provides the best knife sharpening technical solutions, therefore, Our Circuler Knife Grinding Machine is fully equipped with knife sharpening tools.

Technical Parameter :

Circular knife Sharpening machine

When resharpening industrial circular knives (such as circular cutting knives, slitting knives, bottom circular knives), safety, precision, efficiency, and tool life are required.

1. Control precision and quality, maintain angular accuracy

◦ Ensure upper and lower blade surfaces are parallel with uniform thickness.

◦ Keep the cutting edge sharp.

◦ Radial runout and end face runout must be within tolerance to prevent burrs.

◦ For slitting knives, cutting stability and material surface cutting quality require high consistency in the outer diameter of the same group.

2. Grind in stages, gradually refine

It is recommended to follow the sequence of 'rough grinding → fine grinding'. Rough grinding removes most of the material, while fine grinding achieves a sharp cutting edge and smooth surface, avoiding over-heating or annealing of the cutting edge caused by single-stage grinding.

3. Sharpening for different blade materials

◦ High-speed steel (HSS) circular knives

Have good toughness but are sensitive to grinding temperature. Cooling must be strictly controlled to prevent the cutting edge from annealing and softening.

◦ Tungsten Carbide circular knives

Have high hardness and wear resistance but are brittle. Diamond grinding wheels must be used, and grinding pressure and speed must be controlled to prevent micro-cracks that could lead to chipping.

Circular knife Sharpening:

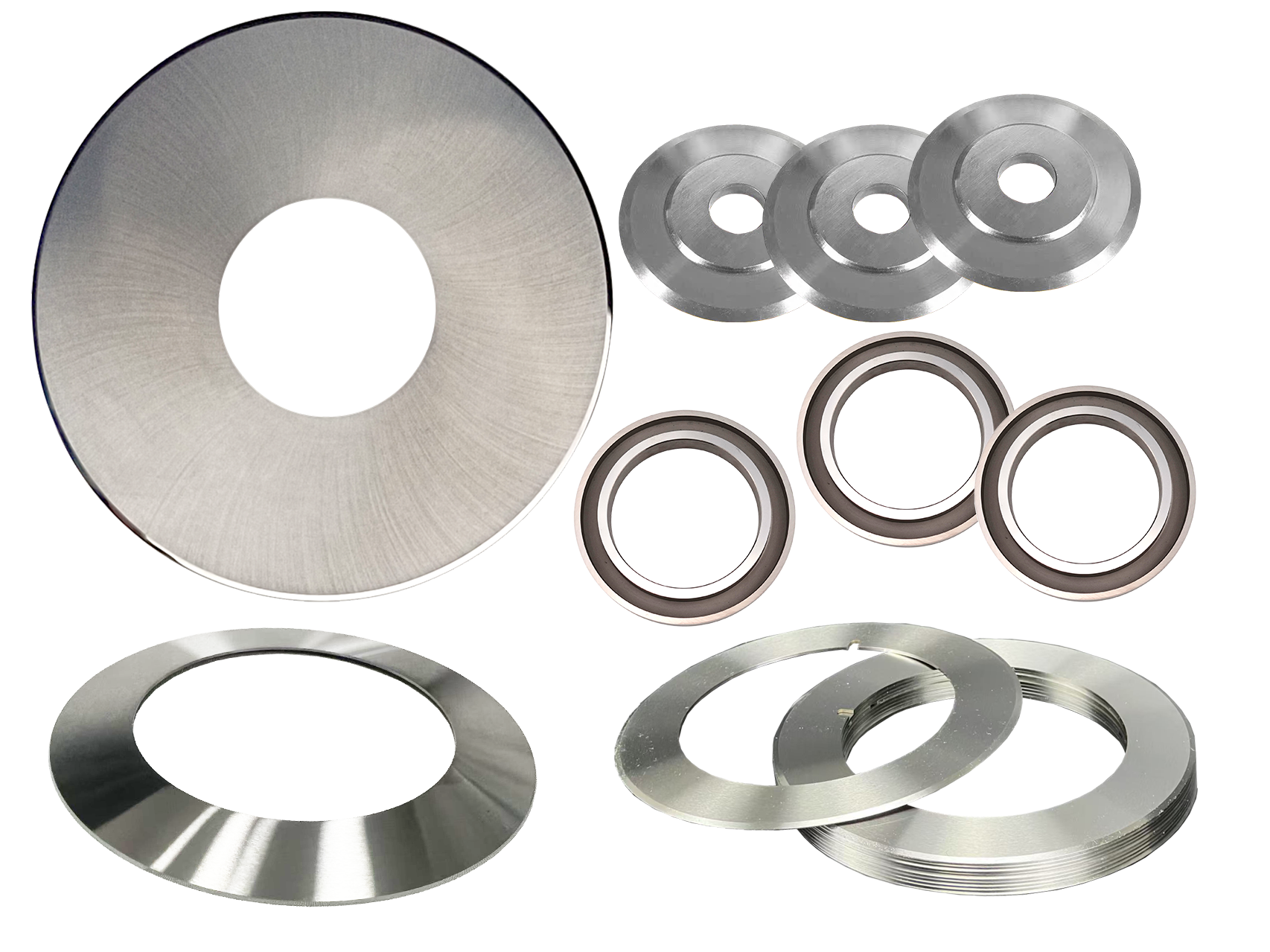

• Top slitter knives
• Bottom slitter knives
• Circular knives
• Dished knives
• Crush cuting knives

High-speed steel (HSS) / SKD11 circular knives

Tungsten Carbide circular knives

High-speed steel (HSS) Circular cutting knives: dia. 250 / 300 / 350 / 400 / 450 / 500 mm
