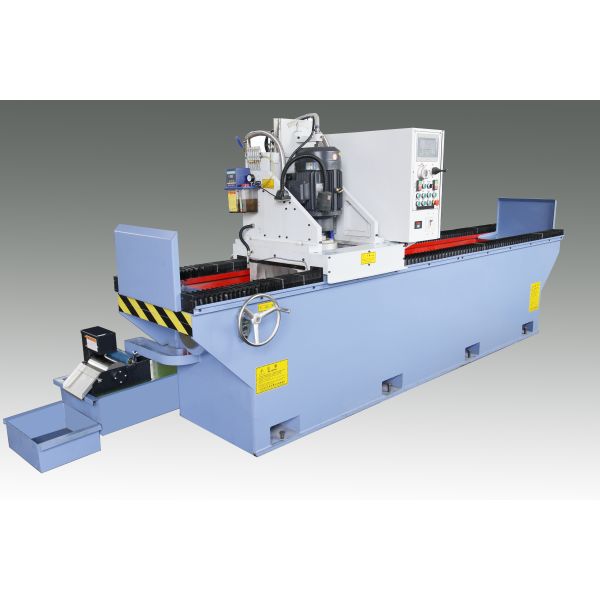

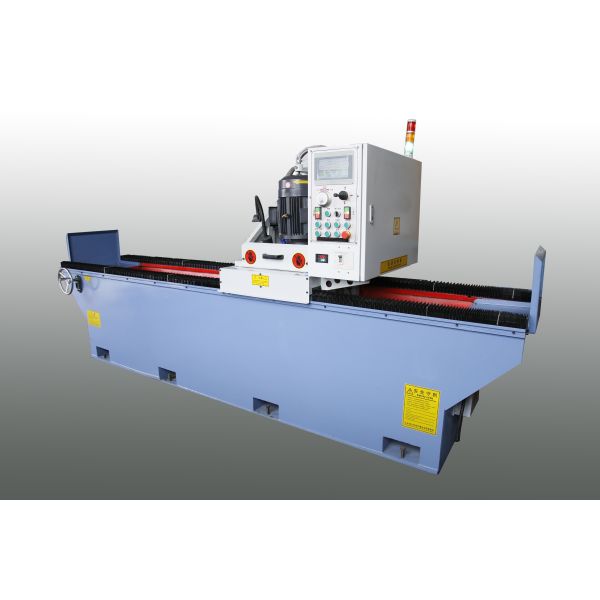

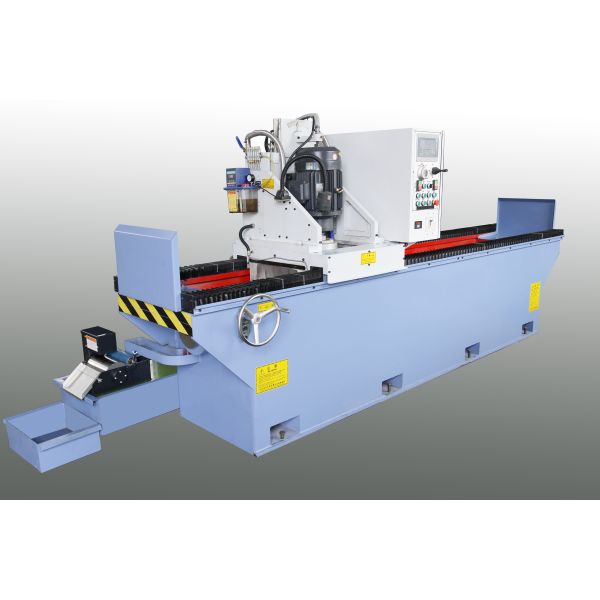

Straight Knives Grinding Machine
Straight Knives Grinding Machine
Straight Knives Grinding Machine
Straight Knives Grinding Machine
Straight Knives Grinding Machine
Straight Knives Grinding Machine
Straight Knives Grinding Machine
Straight Knives Grinding Machine
Straight Knives Grinding Machine
Straight Knives Grinding Machine
Specifications
Brand Name :
K & G
Model Number :
LL-1700 / 2200
Place of Origin :
Made in China
MOQ :
1 unit
Price :
FOB China USD11,800.00 up/ unit
Payment Terms :
T/T before shipment
Delivery Time :
Lead time 60 days
Packaging Details :
Seacase
Description

With 60 years of knife sharpening experience, our company provides the best knife sharpening technical solutions, therefore, Our LL Grinding Machine is fully equipped with knife sharpening tools

MODEL : LL -1700 / 2200

(Professional grinding High Speed Steel)

1.Machine base, high rigidity steel welded construction.

2.Solid hardened guideways can achieve greatly enhanced moving accuracy.

3.Worktable features a division sinusoidal electro-magnetic chuck.

4.Down feed system is driven by a variable frequency motor and transmitted through a play free screw and controlled by handwheel.

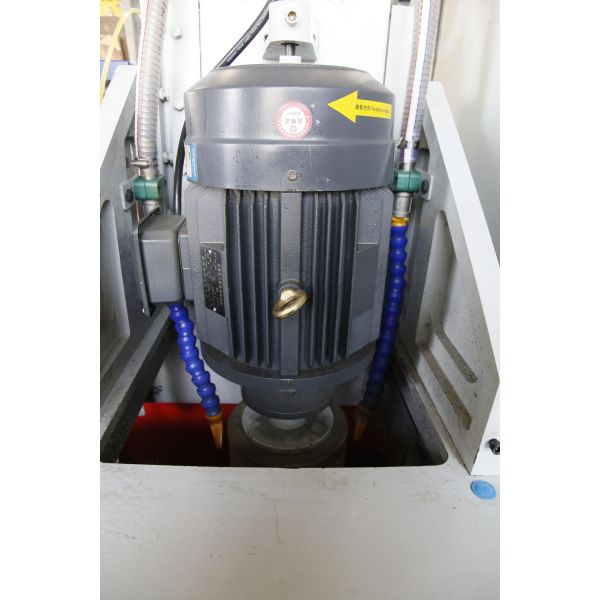

5.Grinding motor, with change wheel design.

6.Grinding tool, ring wheels, SDC and CBN wheels.

7.Traverse drive is driven by a variable frequency motor, using gear and rack transmission with stepless speed regulation, achieving a stable operation speed of 0-20 meters/min.

8.Lubrication system features an adjustable central manual lubrication mechanism.

Technical Parameter :

Grinding length 1700 / 2270 mm
Electro-magnetic chuck 1700 / 2270 mm x 180mm swivellable 90°degrees
Pass height 150mm
Down feed 0.04mm
Traverse drive speed 1-20 m/min
Guideways Linear guideways
Grinding wheel Ø255 X Ø195 X 125H mm
Gross power 9KW (3 phase / 380V / 50HZ)
Grinding motor 7.5KW (1450 RPM)
Down feed motor Servo Motor
Traverse drive motor Variable Frequency
Water pump 0.4KW
Net weight 1.04 / 1.22kg
Machine main size L2800 / 3215 x W950 x H1500 mm
Colour White

Straight Knives Grinding Machine

Re-sharpened Knives

Straight Knives Grinding Machine
