Specifications
Model Number :
ZH
Certification :
SGS ISO CE
Place of Origin :
China
MOQ :
1units
Price :
USD1490-9890 per unit
Payment Terms :
Western Union, MoneyGram
Supply Ability :
1000units per year
Delivery Time :
25 working days
Packaging Details :
plywood or container
material :
stainless steel 304 or 316L
structure :
double screw
rotary :
yes
application :
food/pharmaceutical insudstries
applicable to :
powder
standard :
GMP
Description

Double Screw Powder Mixer Machine For Chemical Powder Mixing Big Capacity



First, the product uses:

This machine is widely used in chemical, fertilizer, oil fields, oil refineries, pesticides, veterinary drugs, paints, pigments, dyes, metallurgy, metallurgy, refractory, mining, building materials, electronics, plastics, feed, aquaculture, pharmaceutical, biotechnology, food, solid health care products, ceramics, glass and new materials, nuclear materials, and many other industries - solid mixing, solid - liquid mixing, liquid - liquid mixing. The machine wide adaptability mixture, mixing heat-sensitive materials composition does not produce segregation phenomenon of mixed coarse, fine and ultra-fine powder of various particles, fibers or sheet material has good adaptability .
Second, the principle:

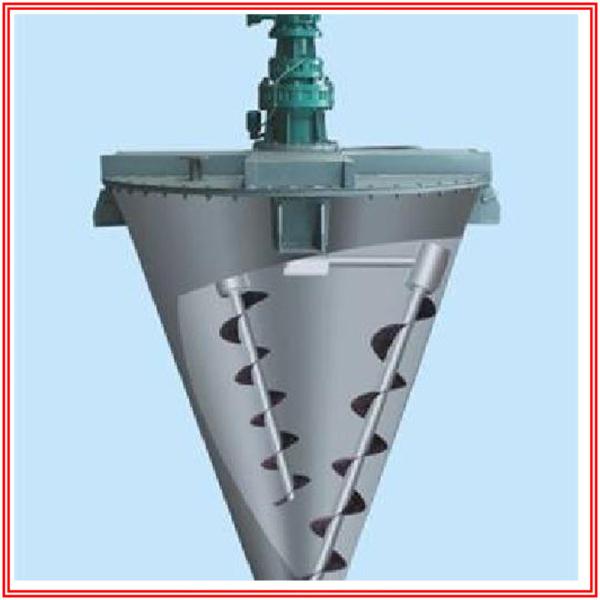

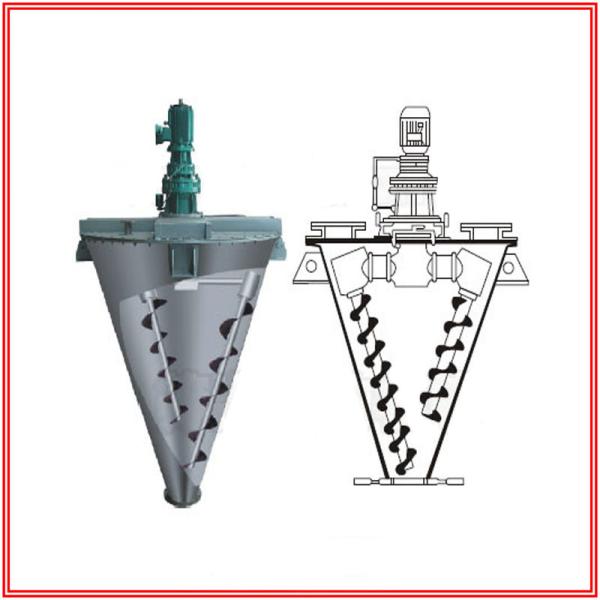

Rapid rotation mixer consists of two asymmetric spiral sheet material upward, forming two shares asymmetric tube arm from the bottom up along the spiral stream. Boom driven spiral revolution, so that different degrees of material into the spiral outer envelope of the stud. Part of the material are staggered lift, another part of the material was thrown stud, so as to constantly update the proliferation of full-circle orientation materials, be referred to the upper portion of the material in the two strands converge toward the center of the pocket formed generally downward stream, supplement bottom of the hole, so as to form convection circulation. Due to the complexity of the motion, the material in a relatively short time to obtain a homogeneous mix, a higher degree of mixing.
specx unit DSH0.3 DSH0.5 DSH1 DSH2 DSH4 DSH6 DSH10
total volume (m3) 0.3 0.5 1 2 4 6 10
feeding rate 0.4-0.6
diameter of materials to be mixed (um) 40-3000
operation condition Ambient temperature,normal pressure,sealed to dust
production capacity p=1g/cm3 (kg) 180 300 600 1200 2400 3600 6000
power (kw) 2.2 2.2 5.5 5.5 11 20.7 30.7
time of mixing (min) 4-10(special material to be determined by trial)
weight (kg) 500 1000 1200 1500 2800 3500 4500
