Specifications
Model Number :
EYK
Certification :
SGS ISO CE
Place of Origin :
China
MOQ :
1units
Price :
USD3490-9890 per unit
Payment Terms :
Western Union, MoneyGram
Supply Ability :
1000units per year
Delivery Time :
25 working days
Packaging Details :
plywood or container
material :
stainless steel 304 or 316L
structure :
rotary drum
rotary :
yes
application :
food/pharmaceutical insudstries
applicable to :
powder
standard :
GMP
dimension :
2 dimension
Description
Fertilizer Powder Mixer Machine Two Dimension Big Capacity Lower Power Energy Saving
Oview of two dimentional powder mixer

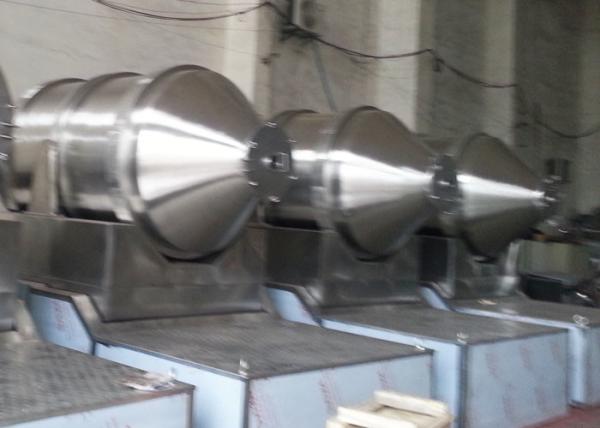

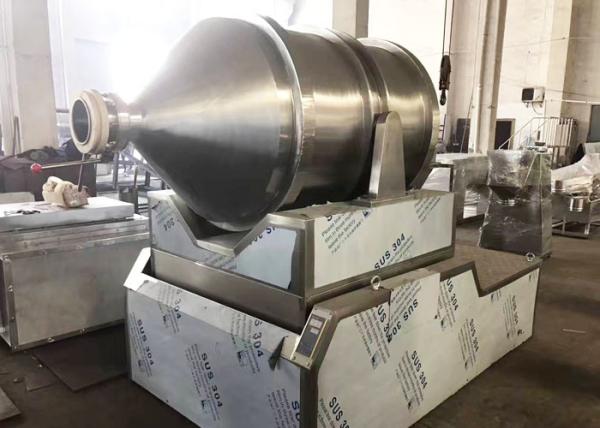

Two-dimensional mixer, full name two-dimensional motion mixer, as the name suggests, refers to the mixer that can rotate the two directions at the same time. The two directions of motion are the rotation of the drum, and the drum swings with the swing frame. The mixed material rotates, turns, and mixes with the drum in the drum, and at the same time, the mixing motion of the left and right sides occurs with the swing of the drum. Under the joint action of the two movements, the material is fully obtained in a short time. Mixed.
The two-dimensional powder mixer consists of three parts: the drum, the swing frame and the frame. The drum is mounted on the swing frame and is supported by four rollers and axially positioned by the two shifting wheels. Among the four supporting rollers, two of the driving wheels are dragged by the rotating power system to rotate the drum. The swing frame is driven by a set of crank swing mechanism, and the crank swing mechanism is mounted on the frame. The swing frame is supported by the bearing assembly on the frame, so that the rotating drum participates in the swing while rotating, so that the materials in the cylinder are fully mixed. .


Technical Parameter
Spec gross volume
(L)		 feed rate feed weight
(kg)		 overall dimensions(mm) power(kw)
A B C D M H rotation sway
EYH100 100 0.5 40 860 900 200 400 1000 1500 1.1 0.75
EYH300 300 0.5 75 1000 1100 200 580 1400 1650 1.1 0.75
EYH600 600 0.5 150 1300 1250 240 720 1800 1850 1.5 1.1
EYH800 800 0.5 200 1400 1350 240 810 1970 2100 1.5 1.1
EYH1000 1000 0.5 350 1500 1390 240 850 2040 2180 2.2 1.5
EYH1500 1500 0.5 550 1800 1550 240 980 2340 2280 3 1.5
EYH2000 2000 0.5 750 2000 1670 240 1100 2540 2440 3 2.2
EYH2500 2500 0.5 950 2200 1850 240 1160 2760 2600 4 2.2
EYH3000 3000 0.5 1100 2400 1910 280 1220 2960 2640 5 4
EYH5000 5000 0.5 1800 2700 2290 300 1440 3530 3000 7.5 5.5
EYH10000 10000 0.5 3000 3200 2700 360 1800 4240 4000 15 11
EYH12000 12000 0.5 4000 3400 2800 360 1910 4860 4200 15 11
EYH15000 15000 0.5 5000 3500 3000 360 2100 5000 4400 18.5 15
