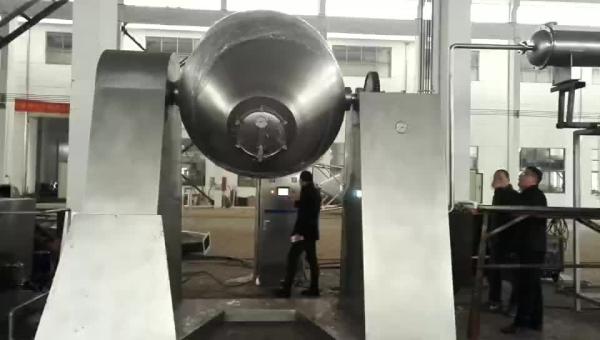

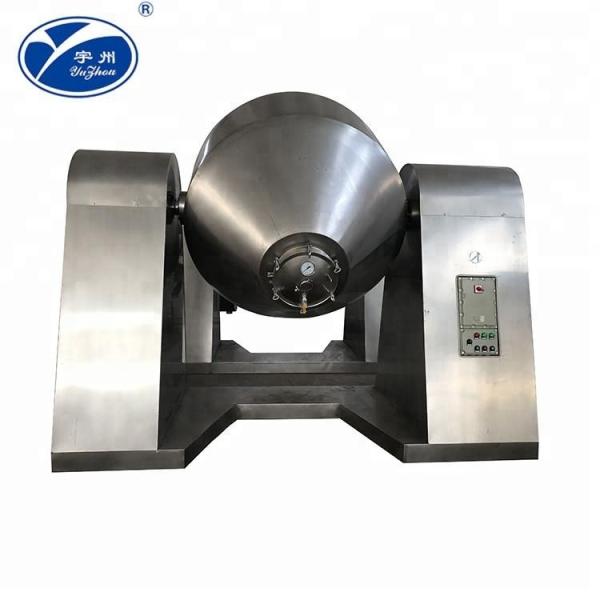

Rotary Double Cone Powder Mixer Machine 250 L Capcity 1.5 Kw Power Low Noise

Double cone mixer application range:

widely used in chemical, pesticide, dye, food, feed, building materials, rare earth and other powder and powder (solid-liquid) mixing. The machine has wide adaptability to the mixture material, does not overheat the heat sensitive material, does not pressurize and grind the granular material, and does not produce chip separation phenomenon when the material with different specific gravity and particle size is mixed; the machine according to the process requirements The jacket can be added outside the mixing barrel, and the cooling or heating of the material can be realized by injecting a cold heat medium into the jacket; the cooling is generally pumped into industrial water, and the heating can be steamed or electrically heated.

The working principle of double cone mixer:
Two asymmetric spiral rotations in the DSH series mixing cylinder lift the material upwards and the arm rotates slowly; the materials outside the spiral enter the studs to different degrees, thus achieving the continuous renewal and diffusion of the material in the full circumference. The upper two materials merge into the central cavity to form a downward flow, which complements the bottom vacancy, thereby forming a triple mixing effect of the convection cycle; the standard conical spiral mixer has two agitating spirals, the actual In the application, according to the size of the equipment, single (one long spiral), double (one or two asymmetric spirals) and three (two short and one long symmetrically arranged) root spirals can be used; in theory, the more the stirring spiral, the more the mixing effect Good; the equipment generally uses plum-shaped "displacement valve", the valve is closely attached to the bottom of the long spiral, effectively reducing the dead angle of the mixture, the driving form is manual and pneumatic optional; according to the user's needs, butterfly valve, ball valve, star can also be added. Unloader, side discharge, etc.

★The performance characteristics of the double cone mixer:
The conical cylinder accommodates high demands on the residue of the mixture.
The gentle mixing speed does not damage the fragile material.
The agitation of the machine has a better coordination effect on the chemical reaction of the material.
★Double cone mixer: the abbreviation of double spiral cone mixer, also called double spiral mixer ★

★Technical parameters of double cone mixer:
