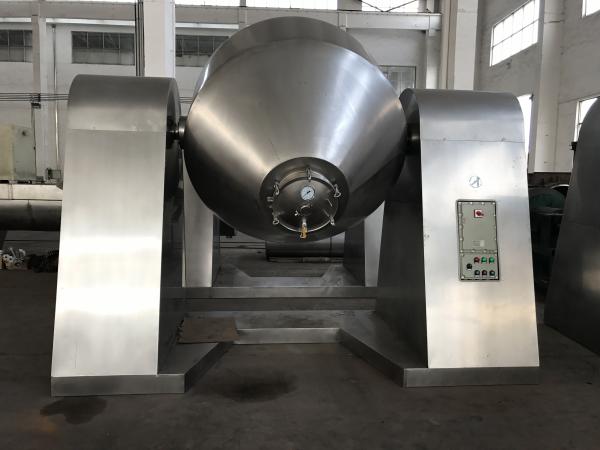

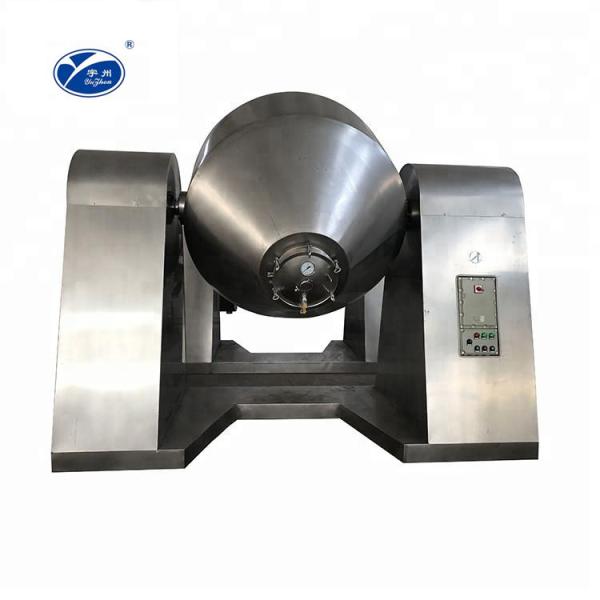

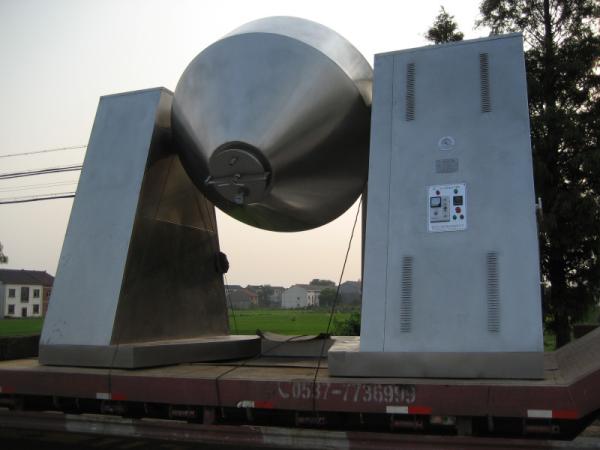

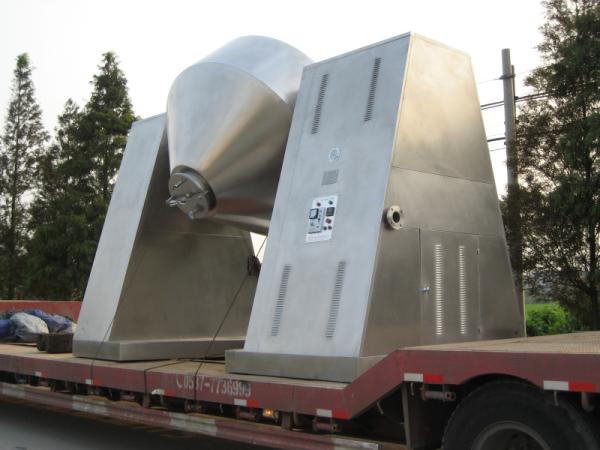

415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
415V 25rpm V Type Powder Mixer Machine Pharmaceutical Insudstries Use
Specifications
Model Number :
VHJ
Certification :
SGS ISO CE
Place of Origin :
China
MOQ :
1units
Price :
USD1490-9890 per unit
Payment Terms :
Western Union, MoneyGram
Supply Ability :
1000units per year
Delivery Time :
25 working days
Packaging Details :
plywood or container
material :
stainless steel 304 or 316L
structure :
V
rotary :
yes
application :
food/pharmaceutical insudstries
applicable to :
powder
standard :
GMP
rotary speed :
12rpm
voltage :
220 380 400 415
name :
V mixer/ powder mixer machine
Description

Stainless Steel V Type Powder Mixer , High Speed Powder Mixer Blender Machine

Maintenance of V-type high efficiency powder mixer machine

1. This powder mixer machine is suitable for ambient temperature of -5? C - 40? C, relative humidity <90%, the most suitable temperature, should be placed in a ventilated, dry, clean position.
2. It is strictly forbidden for underage children to contact the machine without authorization to avoid accidents.
3. The lubrication of the reducer is oil-immersed. The oil storage capacity must be kept on the oil mark line, and the oil quality must be kept clean. If it is used frequently, it must be changed every three months. When replacing, the gear unit should be removed and cleaned, and new oil should be added.
4. The control parts of the mixer electrical equipment should be kept clean and sensitive, and the fault should be repaired in time.
5. When using once or stopping work, the remaining materials in the V-shaped barrel should be taken out and the residual powder in each part of the machine should be brushed. If the deactivation time is long, the V-type mixer must be wiped clean and covered with a tarpaulin.
6. When the V-type bucket is assembled and disassembled, it should be lightly disassembled, stabilized and placed gently to avoid deformation damage.
7. Regularly inspect the machine parts 1-2 times a month. Check whether the moving parts, power transmission, gearbox and other movable parts are flexible and wearable. The defects should be repaired in time so that the mixer can be used normally.



Technical Parameter


specitem		 total volume
L		 material capcity
L		 working capacity
kg		 rotating speed
rpm		 power
kw		 weight
kg
0.05 50 25 15 25 0.55 500
0.15 150 75 45 20 0.75 650
0.3 300 150 90 20 1.1 820
0.5 500 250 150 18 1.5 1250
1 1000 500 300 15 3 1800
1.5 1500 750 450 12 4 2100
2 2000 1000 600 12 5.5 2450
3 3000 1500 900 9 5.5 2980
4 4000 2000 1200 9 7.5 3300
5 5000 2500 1500 8 7.5 3880
6 6000 3000 1800 8 11 4550
8 8000 4000 2400 6 15 5200
10 10000 5000 3000 6 18.5 6000
