10kg/H Stainless Steel Grinding Machine
10kg/H Stainless Steel Grinding Machine
10kg/H Stainless Steel Grinding Machine
10kg/H Stainless Steel Grinding Machine
10kg/H Stainless Steel Grinding Machine
10kg/H Stainless Steel Grinding Machine
Specifications
Model Number :
WFJ-15
Certification :
ISO CE SGS
Place of Origin :
China
MOQ :
1unit
Price :
USD 1599-39897 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100units per month
Delivery Time :
15 working days
Packaging Details :
export plywood or shipping container
Name :
super micro grinding machine
Other name :
super micro grinder
Structure :
turbo grinding structure blade
Production :
continuous
Material :
stainless steel 304
Processing capacity :
20-1000 kgs per hour
Discharge size :
100-400mesh
Application :
sugar, salt, herb, chemical, medicine
Description

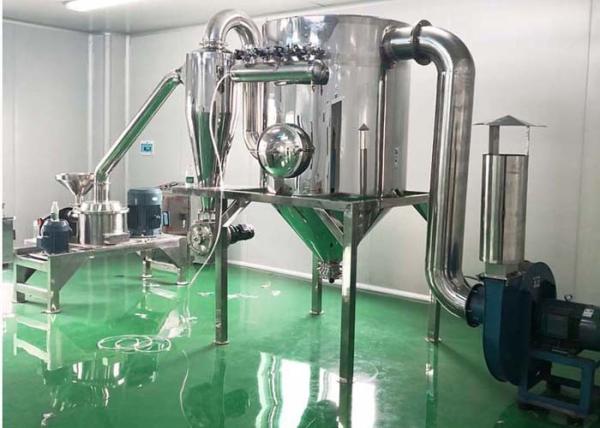

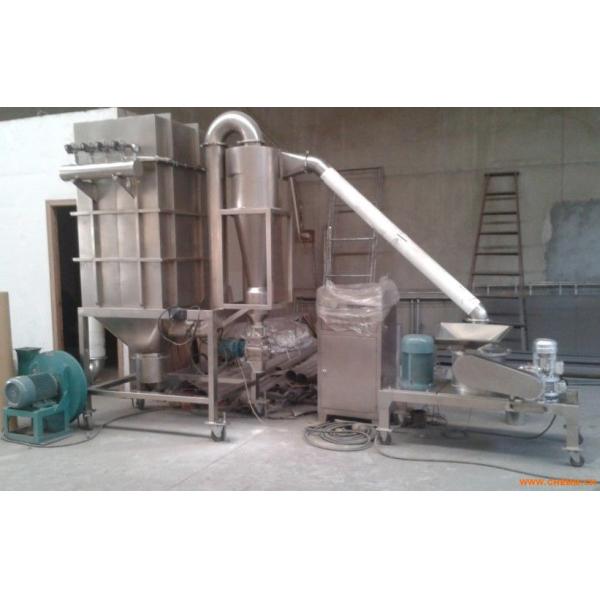

Super Micro Stainless Steel Grinding Machine For Salt / Sugar / Cereal / Grain

The super micro grinding machine is generally a sieveless pulverizer. The particle size of the pulverized material is controlled by the gas flow rate, and the pulverization particle size is required to pass 95% through 0.15 mm (100 mesh). Superfine pulverizer can be widely used in many industries such as traditional Chinese medicine, western medicine, pesticide, biology, cosmetics, food, feed, chemical, ceramics and so on. The following Xiongji network Xiaobian introduces the principle, operation rules, use methods, characteristics, maintenance and other knowledge of the superfine pulverizer.


Super micro grinding machine design principle

10kg/H Stainless Steel Grinding Machine

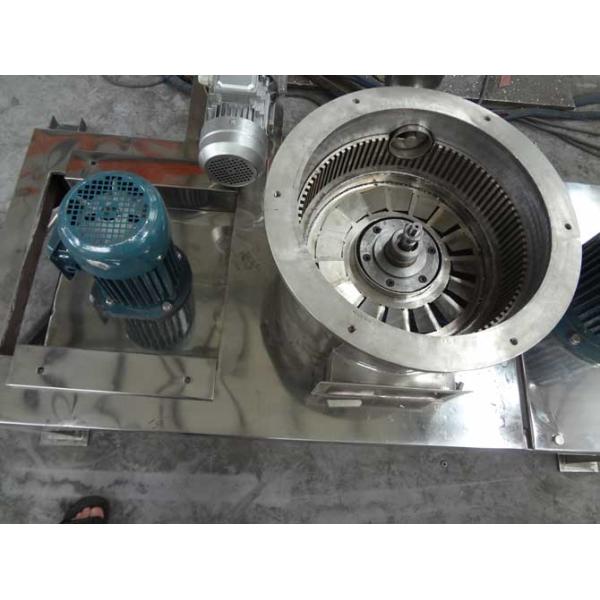

Super micro grinding machine and separation are the main functions of the crusher and also a key factor affecting the crushing efficiency and energy consumption. According to the research on the pulverization principle at home and abroad, the outer dimensions of the hammer head, the gap between the hammer head and the ring gear teeth, and the classification effect are all significant effects on the pulverization efficiency and energy consumption.

10kg/H Stainless Steel Grinding Machine


Technical Parameter

Spec unit WFJ-15 WFJ-18 WFJ-32
production capacity kg/h 10-200 20-450 60-800
inlet material diamenter mm ＜10 ＜10 ＜15
oulet material diamenter mesh 80-320 80-450 80-450
power kw 13.5 17.5 46
main rotaing speed r/min 3800-6000 3800-6000 3800-4000
overall dimension(L×W×H) mm 4200×1200×2700 4700×1200×2900 9000×1500×3800
weight kg 850 980 1500
