100-400 Mesh Stainless Steel Grinding Machine For Herbal Roots
100-400 Mesh Stainless Steel Grinding Machine For Herbal Roots
100-400 Mesh Stainless Steel Grinding Machine For Herbal Roots
100-400 Mesh Stainless Steel Grinding Machine For Herbal Roots
100-400 Mesh Stainless Steel Grinding Machine For Herbal Roots
100-400 Mesh Stainless Steel Grinding Machine For Herbal Roots
Specifications
Model Number :
WFJ-18
Certification :
ISO CE SGS
Place of Origin :
China
MOQ :
1unit
Price :
USD 2999-9897 per unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100units per month
Delivery Time :
15 working days
Packaging Details :
export plywood or shipping container
Name :
Superfine grinder
Other name :
superfine mill
Structure :
turbo blade mill
Production :
continuous
Material :
stainless steel 304
Processing capacity :
20-500 kg per hour
Discharge powder size :
100-400mesh
Application :
sugar, salt, spice, herbal roots
Description

Superfine grinder structure principle

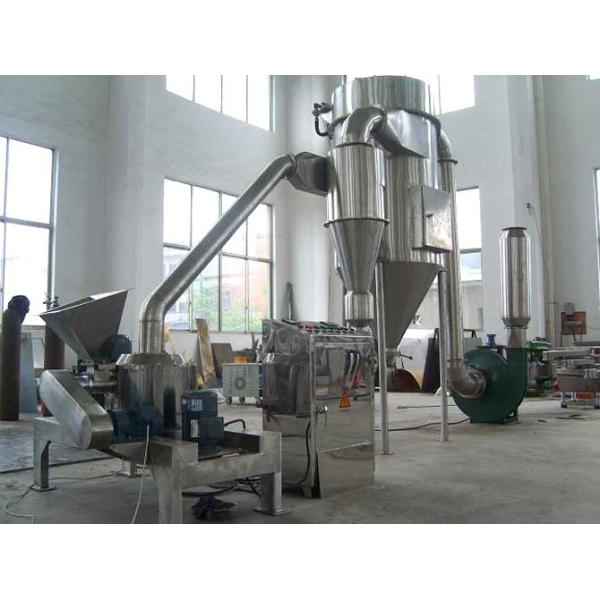

The ultra-fine pulverizer consists of a machine base, a rotating drum, a crushing cutter, a fine powder trap, and a transmission system. The machine is a vertical drum structure, and the konjac powder raw material adopts the method of feeding the auger. When the material enters the pulverizing chamber, the vortex is boiled under the action of the negative pressure fan, and the drum is driven by the main power, and the cutter is pulverized. The high-speed rotation intersects with the boiling konjac powder to make high-speed cutting. After the cutting, the konjac powder reaches the standard konjac powder under the action of the fine powder trap and enters the cyclone separator to separate and discharge. The konjac powder that does not meet the standard continues to be cut at high speed until it reaches the need. After the fineness, the cyclone separator is separated and discharged.

100-400 Mesh Stainless Steel Grinding Machine For Herbal Roots


Superfine grinder design principle

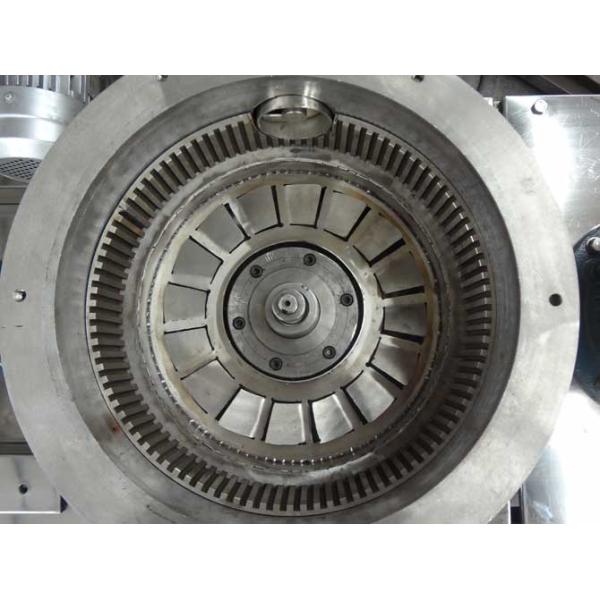

Superfine grinder and separation are the main functions of the crusher and also a key factor affecting the crushing efficiency and energy consumption. According to the research on the pulverization principle at home and abroad, the outer dimensions of the hammer head, the gap between the hammer head and the ring gear teeth, and the classification effect are all significant effects on the pulverization efficiency and energy consumption.

100-400 Mesh Stainless Steel Grinding Machine For Herbal Roots


Technical Parameter

Spec unit WFJ-15 WFJ-18 WFJ-32
production capacity kg/h 10-200 20-450 60-800
inlet material diamenter mm ＜10 ＜10 ＜15
oulet material diamenter mesh 80-320 80-450 80-450
power kw 13.5 17.5 46
main rotaing speed r/min 3800-6000 3800-6000 3800-4000
overall dimension(L×W×H) mm 4200×1200×2700 4700×1200×2900 9000×1500×3800
weight kg 850 980 1500
