GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
Specifications
Model Number :
30B
Certification :
SGS CE ISO
Place of Origin :
China
MOQ :
1units
Price :
USD1390-3990 per unit
Payment Terms :
Western Union, MoneyGram paypal
Supply Ability :
10000units per year
Delivery Time :
20 working days
Packaging Details :
plywood or container
Material :
stainless steel 304 or 316L
Application :
food or pharmaceutical industries
Standard :
GMP
Grinding teeth :
pin
Filter :
bag filter
Discharge :
20-120mesh
feed size :
below 12mm
Description



Application:
crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.
GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer

GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer

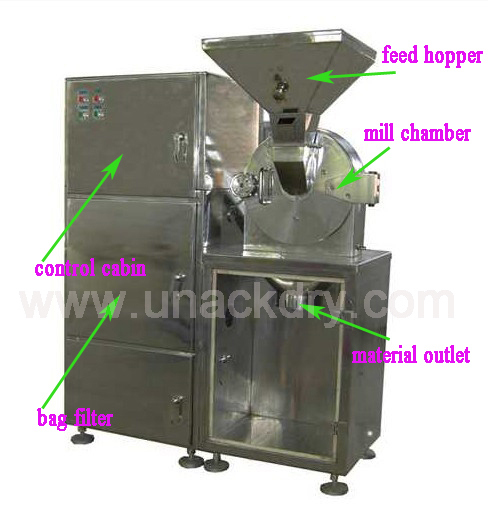

30B Series high efficiency mill by the host, auxiliary equipment, electronic control of three components, compact design, reasonable structure. For medicine, chemicals, pesticides, food and food industries, extremely versatile. Grinder built with hierarchical institution, the crushing and grading once. Thermal vacuum conveying the grinding mill machine when operating cavity produced a steady stream discharge, it is also adapted to the crushing heat-sensitive materials. 30B Series grinder to adapt a wide range of highly efficient, continuous production process, the particle size is adjustable; capable of handling such as: crushing and classification of chemical products, food, cosmetics, dyes, resins, shell materials and other materials.


GMP Pin Mill Grinder , 20-120mesh Bean Stainless Steel Pulverizer
The B series universal grinder machine: suitable for pharmaceutical, chemicals, pesticides, food and food industries, extremely versatile.

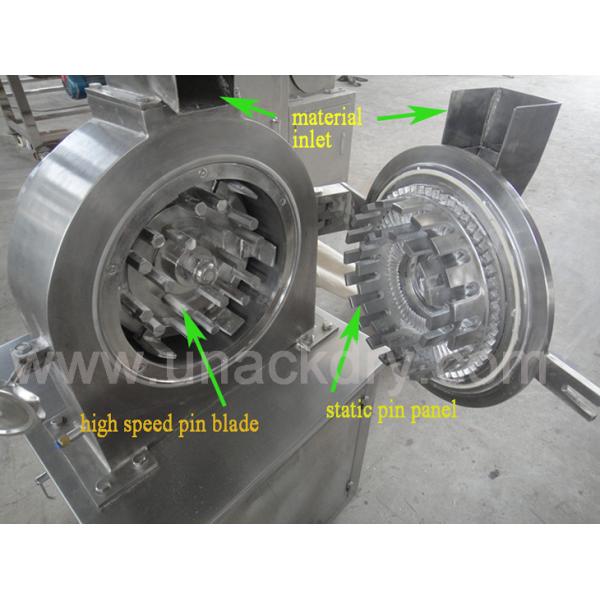

The relative motion of the machine and stationary use activities chainring teeth interrogations that was crushed by the impact of the teeth, the combined effects of friction and physical shock each other to get crushed. The machine structure is simple, robust, stable operation, good crushing effect, crushed material can be discharged directly from the grinding chamber, the particle size by changing different aperture sieve to obtain.

B series grinder parameter:
Model 20B 30B 40B 60B
Capacity (kg/h) 60-150 100-300 160-800 500-1500
Rotation speed (r/min) 4500 3800 3400 2800
feed size(mm) 6 10 12 15
outlet size (mesh) 60-120 60-120 60-120 60-120
Power (kw) 4 5.5 11 15
Weight (kg) 250 320 550 680
Overall size (L×W×H)(mm) 550×600×1250 600×700×1450 800×900×1550 1000×900×1680
