Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP
Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP
Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP
Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP
Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP
Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP
Specifications
Model Number :
WF
Certification :
SGS CE ISO
Place of Origin :
China
MOQ :
1units
Price :
USD1390-3990 per unit
Payment Terms :
Western Union, MoneyGram paypal
Supply Ability :
10000units per year
Delivery Time :
20 working days
Packaging Details :
plywood or container
Material :
stainless steel 304 or 316L
Application :
food or pharmaceutical industries
Standard :
GMP
Grinding teeth :
blade hammer
Filter :
bag filter
Discharge :
20-120mesh
feed size :
below 12mm
Description

Herbal Medicine / Dried Food Stainless Steel Grinding Machine , Pin Mill Pulverizer

Specifications

This grinder is special for crushing the Chinese herbal medicines with fibers contained or materials with a certain oil.


Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP

Summary:

It is suitable for the industries of pharmacy, food, chemical, etc. With no limit of viscosity, hardness, and fiber content of the material, it is functioned with air cooling, screen-free, etc. Special for crushing the Chinese herbal medicines with fibers contained or materials with a certain oiliness.


Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP

Working principle:

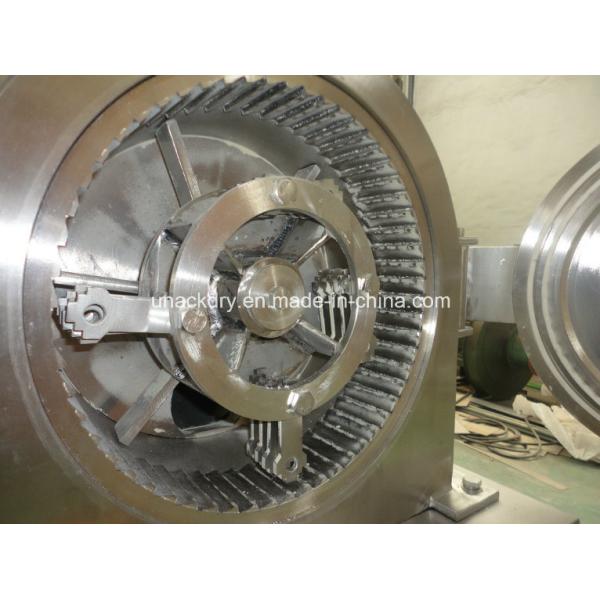

It consists of feeder hopper, classification round, smashing blade, gear ring, smashing motor, discharge hole, fan, , cleaning box, etc. Materials are fed in to crush room from feeder hopper and be crushed by high-speed blade. To satify the required fineness of materials by adjusting the distance between classification round and classification plate. Then the high-speed rotating blades will send the materials which has achieved the requirements to the cloth-bag of aggregate box; also, the others will be kept into crush room to be crushed. The powder dust produced by cloth-bag of aggregate box will be collected by cleaning box. This equipment is designed with the GMP standard and features simple structure, easy of cleaning and operation, low nosie, large production. All the device is made of good quality of stainless steel.

Herbal Medicine 316L Stainless Steel Grinding Machine With Bag Filter GMP

Technical parameters

Type 200 300 400
Production capacity (kg/h) 10-110 30-200 50-300
feeding granularity (mm) 5 12 15
Smash fineness(mesh) 60-320 60-320 60-320
Smash motor(kw) 5.5 7.5 1.5
Dust-absorption motor(kw) 1.1 1.5 2.2

Outline dimension

L×W×H (mm)

 1000×800×1600 1200×850×1780 1500×900×1950
Weight(kg) 320 650

800
