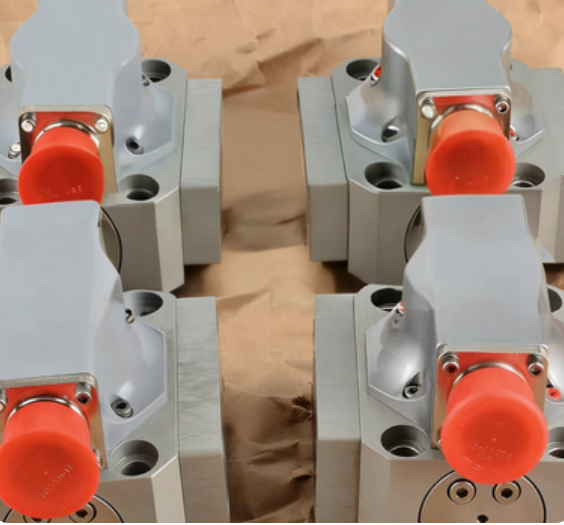

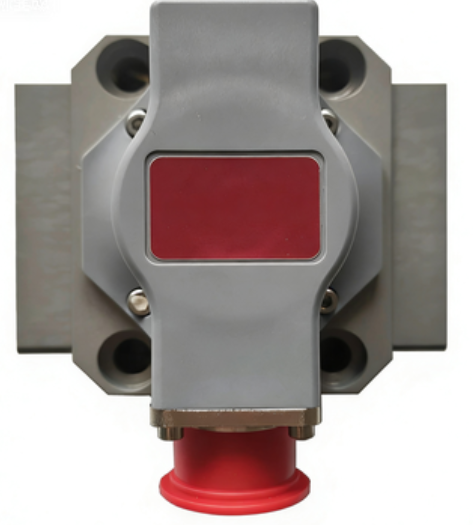

G631-G761-3033B MOOG Servo Valve IP65 Protection 24V DC For Industrial Control
G631-G761-3033B MOOG Servo Valve IP65 Protection 24V DC For Industrial Control
G631-G761-3033B MOOG Servo Valve IP65 Protection 24V DC For Industrial Control
G631-G761-3033B MOOG Servo Valve IP65 Protection 24V DC For Industrial Control
Specifications
Brand Name :
MOOG
Model Number :
G631-3005B
Certification :
Brand new original
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 pcs
Delivery Time :
5-7 days
Operatingtemperature :
-20°C to 70°C
Function :
Control valve actuator position
Responsetime :
Less than 1 second
Supplypressure :
20-30 psi / 1.4-2.0 bar
Feedbacksignal :
Potentiometer / LVDT / Digital feedback
Inputsignal :
4-20 mA / 0-10 V / HART / Fieldbus
Application :
Control of industrial control valves in process industries
Powersupply :
24 V DC / 110 V AC / 220 V AC
Mountingtype :
Direct mount / Remote mount
Outputpressurerange :
3-15 psi / 0.2-1.0 bar
Productname :
Valve Positioners
Type :
Electro-pneumatic / Pneumatic / Digital
Protectionclass :
IP65 / NEMA 4
Material :
Aluminum alloy / Stainless steel
Accuracy :
±1% of full scale
Description
I. Core Specifications (Essential for Foreign Trade/Quotation)
1. Hydraulic Parameters
Parameters Indicators Description
Model G761-3033B Complete Model: G761-3033B
Type Two-stage servo valve (dual nozzle baffle + spool power stage) Mechanical Feedback (MFB)
Maximum Working Pressure 315 bar (31.5 MPa) P/A/B/X ports; T port ≤315 bar
Rated Flow Rate 63 L/min @35 bar Valve Pressure Drop (single port)
Maximum Flow Rate Approx. 104 L/min (Depending on Operating Conditions)
Step Response ≤12–16 ms 100% Signal
Frequency Response 120–230 Hz ±100% Input Signal
Control Accuracy Hysteresis ≤3.0%, Resolution < 0.5%
Working Medium Petroleum-based hydraulic oil, water-glycol, phosphate ester
Oil Viscosity Recommended 10–85 mm²/s; Permissible 5–1250 mm²/s
Cleanliness ISO 4406 <17/14/11 (Long Life)
Pilot Lubrication Built-in/External optional (Fifth port X)
2. Electrical Parameters
Parameters Indicators Description
Control Signal ±30 mA / ±100 mA (Standard) Series/Parallel/Single Coil Operation
Coil Resistance Approx. 80 Ω (Single Coil)
Protection Rating IP65 (with matching plug)
Ambient Temperature -29°C ～ +135°C; Oil: -20°C ～ +80°C
Vibration 30g, Triaxial
3. Mechanical and Installation
Parameters Indicators Description
Installation Standard ISO 10372 Size 04 (CETOP 04) Moog
Installation Method Flange Fixed Any Installation Position
Valve Body Material Aluminum Alloy / Stainless Steel
Sealing Fluororubber (FKM), Oil and High Temperature Resistant
Weight Approx. 5 kg
4. Supply and Warranty
  • Delivery Time: Regularly 8–12 weeks, some in stock
  • Warranty: 12 months from the manufacturer
  • Origin: USA / Philippines
II. Core Advantages
  1. Dual Nozzle Baffle + Mechanical Feedback: Extremely fast response, high precision, low hysteresis, suitable for precision dynamic control.
  2. Dry Torque Motor: Oil-free, anti-contamination, long life, low maintenance cost Moog.
  3. Fifth oil port (X port): Supports external pilot oil supply, suitable for low-pressure/special operating conditions.
  4. Replaceable pilot filter plate: Filtration accuracy ≤5μm, replaceable on-site, extending service life.
  5. Wide operating condition adaptability: High pressure, wide temperature, wide viscosity, meeting harsh industrial environments.
III. Typical Applications
  • Power plants: Steam turbine EH oil system, bypass valve control
  • Hydropower: Turbine governor, guide vane control
  • Testing equipment: Material testing machine, servo testing bench
  • Industrial automation: Pressure/position/force closed-loop control system
  • Metallurgy: Rolling mill, continuous casting machine servo system
