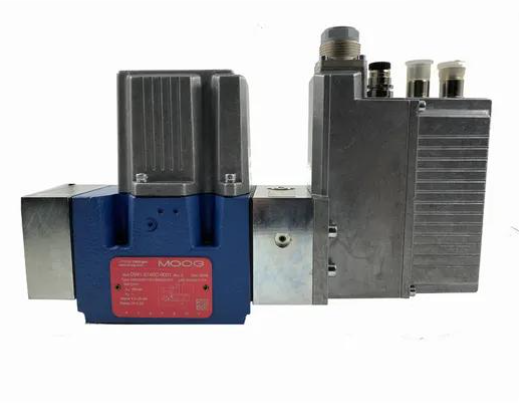

MOOG G761-3002B Electro Hydraulic Servo Valve With 350 Bar Maximum Pressure
MOOG G761-3002B Electro Hydraulic Servo Valve With 350 Bar Maximum Pressure
MOOG G761-3002B Electro Hydraulic Servo Valve With 350 Bar Maximum Pressure
MOOG G761-3002B Electro Hydraulic Servo Valve With 350 Bar Maximum Pressure
Specifications
Brand Name :
MOOG
Model Number :
D633-308B
Certification :
Brand new original
MOQ :
1 PCS
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000pcs
Delivery Time :
5-7 days
Productname :
Valve Positioners
Communicationprotocol :
HART / FOUNDATION Fieldbus / PROFIBUS
Mountingtype :
Direct mount / Remote mount
Inputsignal :
4-20 mA / 0-10 V / HART / Fieldbus
Outputsignal :
3-15 psi / 0.2-1.0 bar pneumatic signal
Protectionclass :
IP65 / IP67
Feedbacktype :
Potentiometer / LVDT / Digital encoder
Responsetime :
Less than 1 second
Powersupply :
24 V DC / 110 V AC / 220 V AC
Type :
Electro-pneumatic / Pneumatic / Digital
Application :
Control valve position in process automation
Operatingtemperature :
-20°C to 80°C
Controlaccuracy :
±0.5% of full scale
Material :
Aluminum alloy / Stainless steel
Description

I. Core Specifications

1. Hydraulic Performance

  • Rated Flow Rate: 10 L/min (valve pressure drop 35 bar)
  • Maximum Working Pressure: 315 bar (aluminum valve body) / 350 bar (steel valve body)
  • Working Pressure: P/A/B/X ≤ 31.5 MPa; T port ≤ 14 MPa
  • Step Response: < 10 ms (100% step)
  • Frequency Response: Approx. 100 Hz (-3dB)
  • Hysteresis: < 3%
  • Resolution: < 0.5%

2. Electrical Parameters

  • Input Signal: ±10 V or 8–200 mA (standard 40 mA)
  • Coil Resistance: 80 Ω
  • Power Supply: No built-in amplifier board, external drive required

3. Physical and Environmental Specifications

  • Weight: Approx. 1.1–1.5 kg
  • Installation: ISO 10372 standard (dimensions) 04) Protection Rating: IP65 (with dedicated plug)
  • Temperature Range: -29°C ∼ +135°C (Ambient/Oil)
  • Media: Mineral oil; Viscosity 60–450 SUS@38°C
  • Cleanliness: Standard ISO 4406 <16/13; Long life <15/12

II. Structure and Features

  • Two-stage design: Pilot stage is a dual-nozzle-baffle dry torque motor; main stage is a spool valve with a hard alloy feedback rod, offering high precision and long lifespan.
  • Mechanical Feedback (MFB): Valve spool position is fed back via a cantilever spring, ensuring dynamic stability and strong anti-interference capabilities.
  • Compact: Small size, suitable for space-constrained equipment.
  • Reliability: Low friction, high valve spool driving force, suitable for high-frequency and harsh operating conditions.

III. Typical Applications

  • Metalworking Machine Tools (CNC/Hydraulic Servo)
  • Injection Molding Machines, Die Casting Machines
  • Material Testing Machines, Hydraulic Testing Stands
  • Aerospace Ground Equipment, Industrial Automation
  • High-Precision Position/Speed/Pressure Closed-Loop Systems
