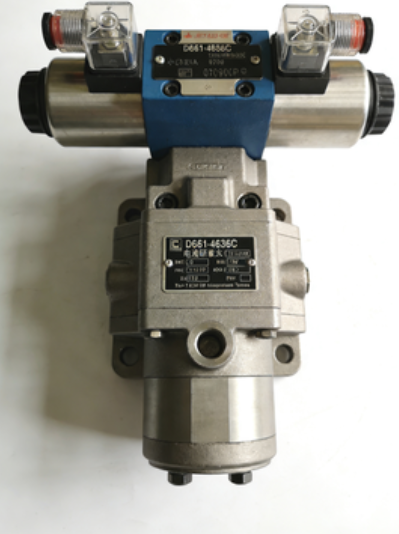

MOOG D661-4636C IP65 Valve Positioners 24 VDC Power Supply For Industrial Automation
MOOG D661-4636C IP65 Valve Positioners 24 VDC Power Supply For Industrial Automation
MOOG D661-4636C IP65 Valve Positioners 24 VDC Power Supply For Industrial Automation
MOOG D661-4636C IP65 Valve Positioners 24 VDC Power Supply For Industrial Automation
Specifications
Payment Terms :
T/T
Feedback :
Built-in feedback potentiometer or digital feedback
Delivery Time :
5-7 days
Power Supply :
24 VDC for electro-pneumatic models
Input Signal :
4-20 mA, 0-10 V, or pneumatic signal
Accuracy :
±1% of full scale
Type :
Electro-pneumatic / Pneumatic / Digital
Supply Ability :
1000 PCS
Certification :
Brand new original
MOQ :
1 pcs
Material :
Aluminum alloy housing with corrosion-resistant coating
Mounting :
Direct mount on valve actuator or remote mount
Output Signal :
Pneumatic pressure to actuator
Communication Protocol :
HART, FOUNDATION Fieldbus, or PROFIBUS (for smart positioners)
Brand Name :
MOOG
Model Number :
D661-4636C
Price :
Negotiable
Function :
Control valve actuator position to ensure accurate valve operation
Supply Pressure :
Typically 3-8 bar (45-120 psi)
Operating Temperature Range :
-20°C to 80°C (-4°F to 176°F)
Response Time :
Typically less than 1 second
Protection Class :
IP65 or higher
Description
MOOG D661-4636C Servo Valve
Core Applications
Industrial automation hydraulic systems, turbine control, and high-precision position/speed/force control systems
Technical Specifications
Parameter Item Technical Value Remarks
Maximum System Pressure 35.0 MPa Rated at P/A/B ports
Rated Flow Rate 60 L/min (ΔP=1.0 MPa)
160 L/min (ΔP=7.0 MPa)		 High-performance flow capacity
Input Signal ±10 mA Rated Control Current
Valve Spool Position Feedback 4-20 mA Output at F pin, 20 mA corresponding to P→A
Step Response < 20.0 ms Ps=21.0 MPa, 100% Input
Hysteresis < 0.5% Static Accuracy
Resolution < 0.1% High Control Accuracy
Power Supply Voltage +24 VDC (Imax=300mA) Built-in Drive Circuit
Sealing Material FPM (Viton) Fluororubber Oil-resistant and high-temperature resistant
Fail-Safe Positions A→T, P→B Valve core reset state upon power failure
Required Accessories
  • B97007 061 Servo Valve Plug (to be ordered separately)
Logistics Data
  • Net Weight: Approximately 2.8 kg
  • Gross Weight: Approximately 3.5 kg
  • Packaging Dimensions: 220 mm × 160 mm × 140 mm
