Specifications
Brand Name :
EDL
Model Number :
788-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
8 Inch Heavy Duty Caster Wheels
Wheel Diameter :
8inch(200mm)
Dynamic Load :
800kg
Tread Material :
TPU
Core Material :
Aluminum
Mounting Type :
Rigid/Swivel/Brake
Mounting Height :
247mm
Frame Material :
Hot-Rolled Plate
Plate Thickness :
9.5mm
Bracket Thickness :
6mm
Surface Treatment :
Zinc Coating
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearing
Tread Color :
Red
Applicable Temperature :
-30℃～80℃
Tread Hardness :
95A
Description

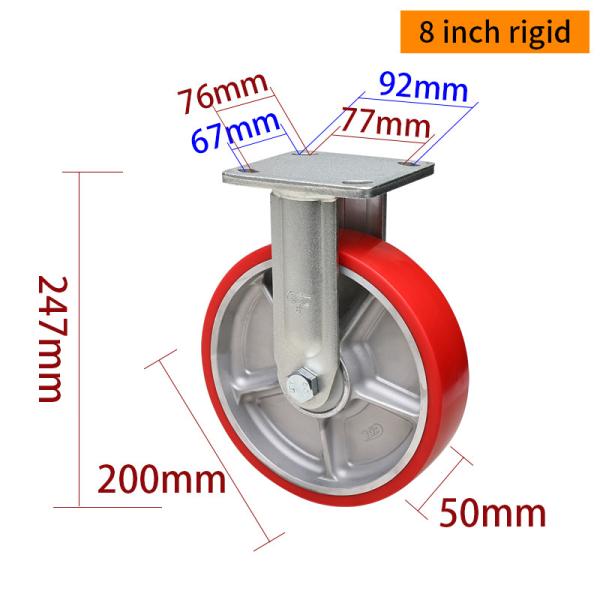

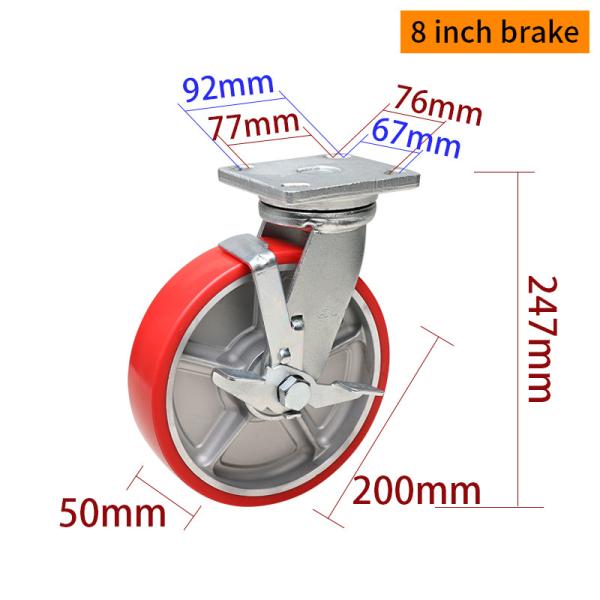

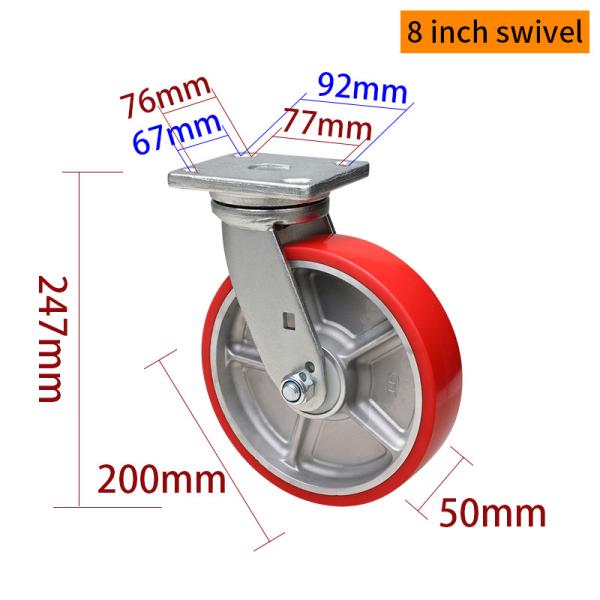

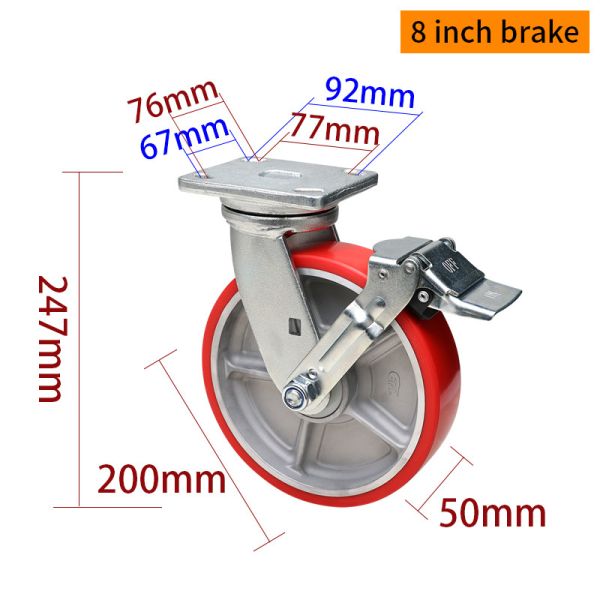

EDL Heavy Duty 8inch Aluminum Caster 800kg Load Plate Mount Rigid , Swivel and Brake 788-86A


The EDL Heavy Duty 8-inch Aluminum Caster 800kg Load Plate Mount 788-86A is engineered for maximum durability and performance. Featuring a red TPU wheel and a high-strength aluminum core, it delivers superior wear resistance, floor protection, and shock absorption. The 9.5mm thick mounting plate and 6mm thick bracket, both made from hot-rolled steel, ensure excellent load-bearing capacity and long-term stability under heavy loads. With a massive 800kg capacity, this caster is ideal for industrial carts, machinery, and heavy-duty transport applications. Available in rigid, swivel, and brake options, the brake mechanism effectively locks the wheel but allows directional movement, balancing mobility and security. The precision design and reinforced construction make it a reliable solution for demanding environments.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
788-86A 8" 200mm 50mm 61mm 800Kg Aluminum

TPU

Double ball

bearing 6204

 -30℃～80℃ 95A

8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core

8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core

8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core

8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core

8 Inch Heavy Duty Caster Wheels 200mm 800kg Load Aluminum Core

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
