Specifications
Brand Name :
EDL
Model Number :
775-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :

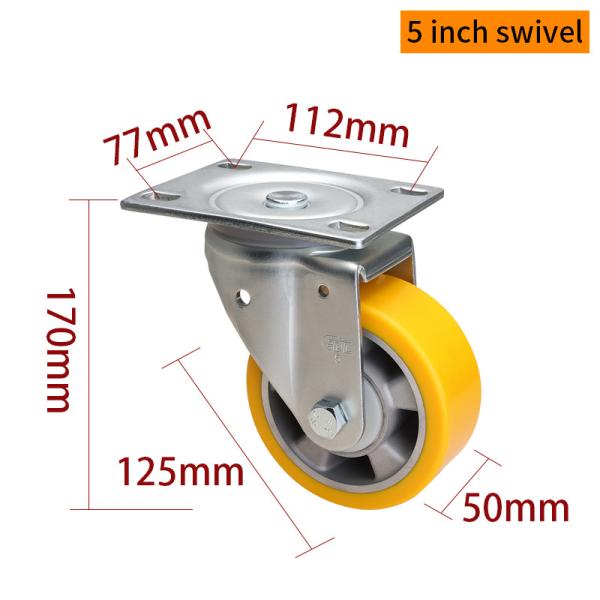

5 Inch Swivel Caster Wheels
Wheel Diameter :
5inch(125mm)
Dynamic Load :
500kg
Tread Material :
TPU
Core Material :
Aluminum

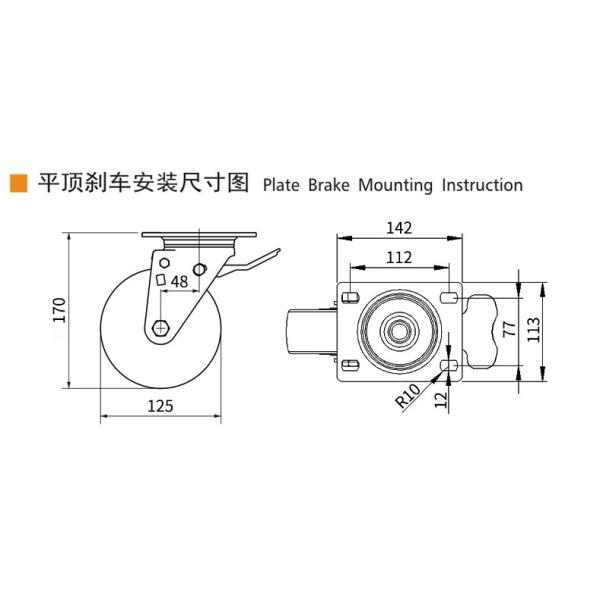

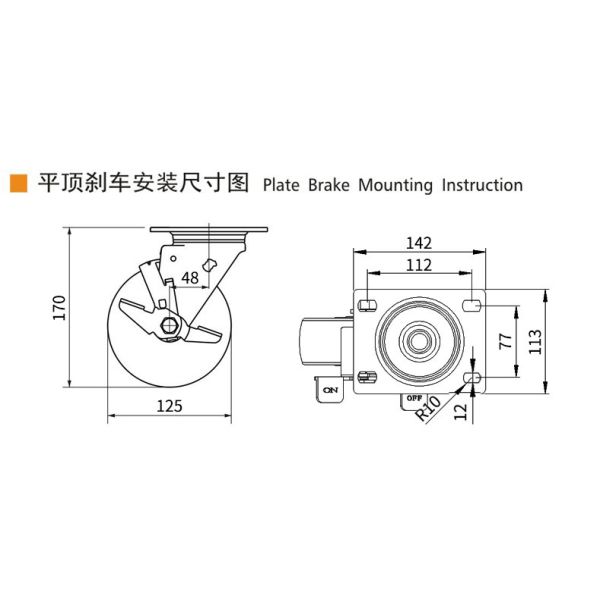

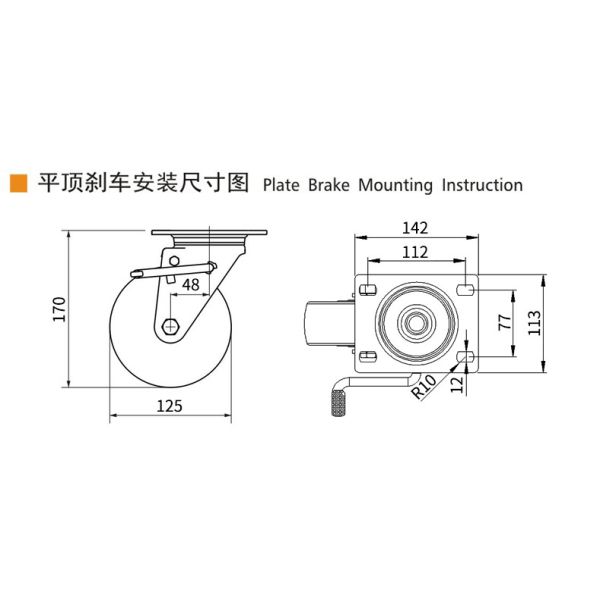

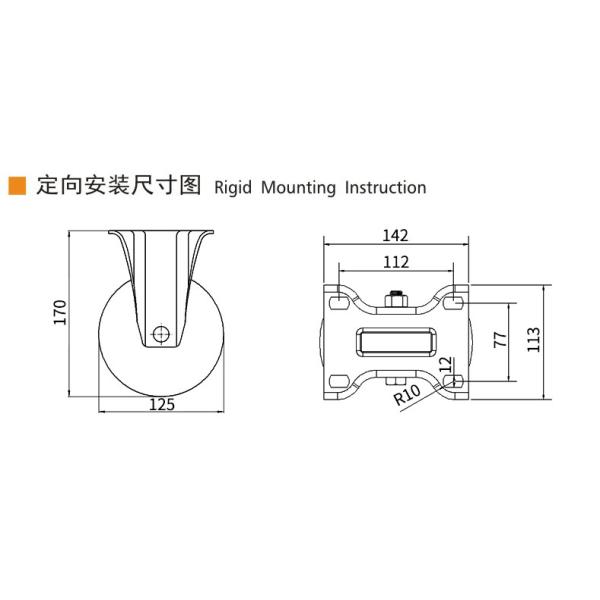

Mounting Type :
Rigid/Swivel/Brake
Mounting Height :
170mm
Frame Material :
Hot-Rolled Plate
Plate Thickness :
5mm
Bracket Thickness :
4mm
Surface Treatment :
Zinc Coating
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearing
Tread Color :
Yellow
Applicable Temperature :
-30℃～80℃
Tread Hardness :
95A
Description

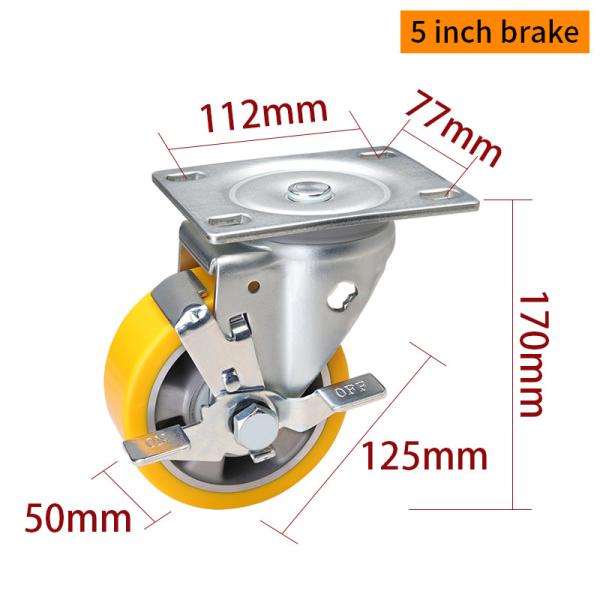

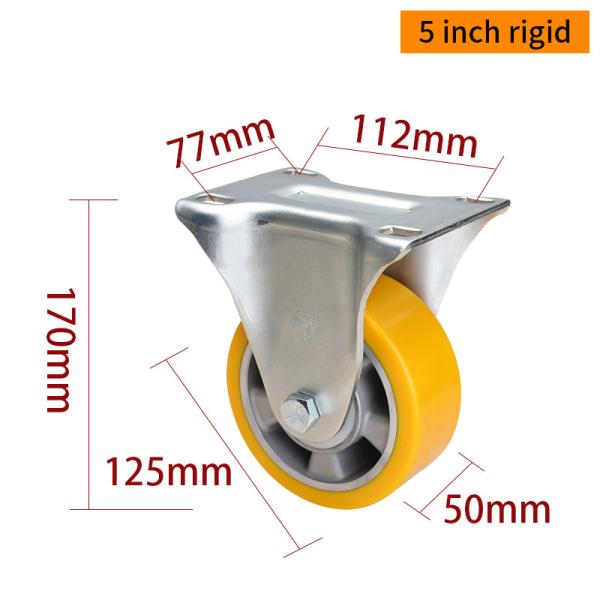

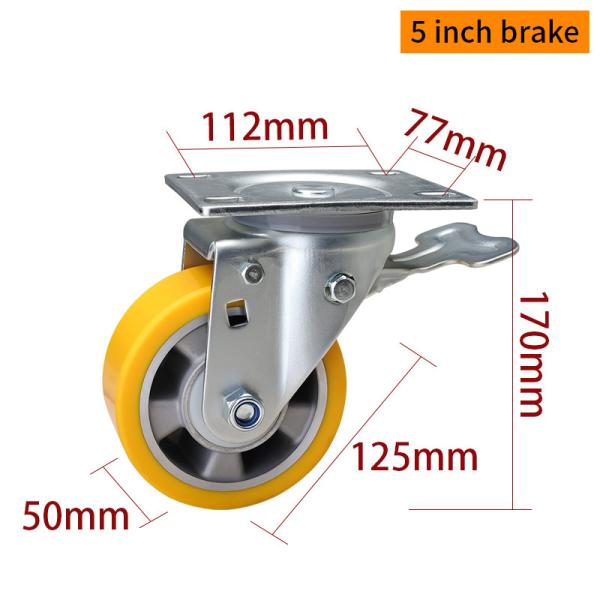

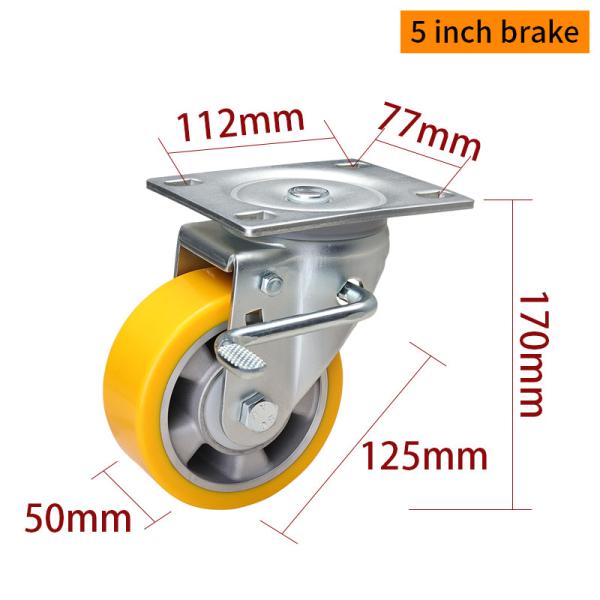

EDL 5inch Heavy Duty Aluminum Caster 500kg Load Plate Mount Rigid , Swivel and Brake 775-86A


The EDL 5inch Heavy Duty Aluminum Caster 500kg Load Plate Mount 775-86A is engineered for robust performance and durability. Featuring a high-quality yellow TPU wheel and a strong aluminum core, this caster is built to handle heavy loads of up to 500kg. The 5mm thick plate and 4mm thick bracket are constructed from premium hot-rolled steel, ensuring a solid foundation for stability and long-lasting use. This caster is designed for versatile applications, offering a variety of mounting options including rigid, swivel, double brake, wheel brake, side brake, and front brake configurations, allowing for enhanced control and safety. Whether in industrial machinery, warehouse carts, or mobile platforms, this caster guarantees reliable movement and efficient braking, meeting the safety needs of diverse environments. EDL continues to deliver innovative and dependable caster solutions, ensuring both mobility and security for heavy-duty applications.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
775-86A 5" 125mm 50mm 61mm 500Kg Aluminum

TPU

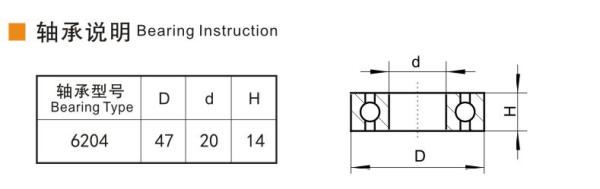

Double ball

bearing 6204

 -30℃～80℃ 95A


5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A

5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A

5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A

5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A

5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A

5 Inch Swivel Caster Wheels Heavy Duty Castors 125mm 775-86A

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
