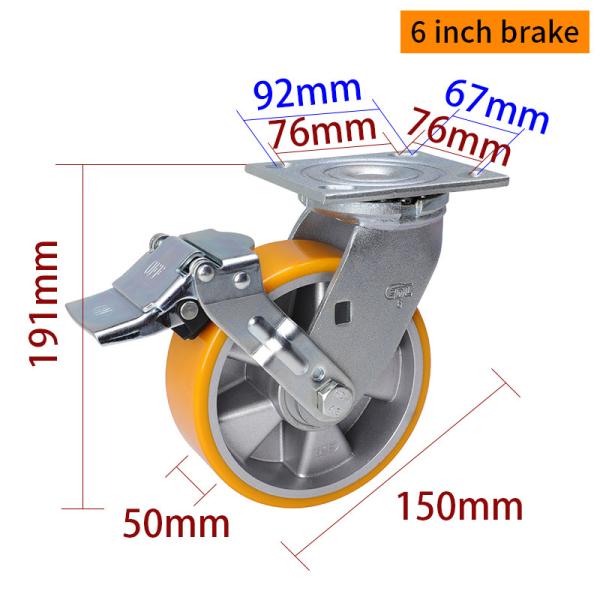

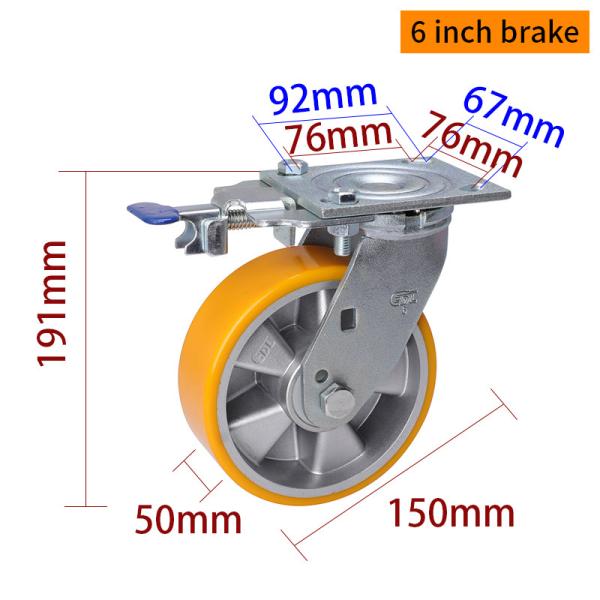

Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A
Specifications
Brand Name :
EDL
Model Number :
736-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
6 Inch Swivel Caster With Brake
Wheel Diameter :
6inch(150mm)
Dynamic Load :
460kg
Tread Material :
TPU
Core Material :
Aluminum
Mounting Type :
Rigid/Swivel/Brake

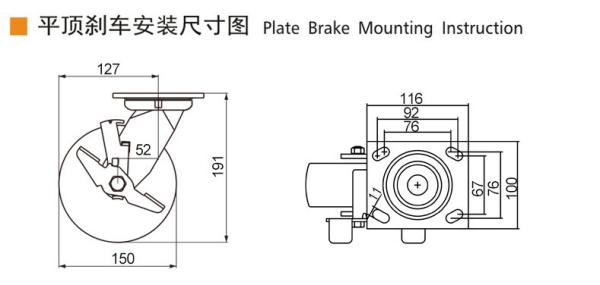

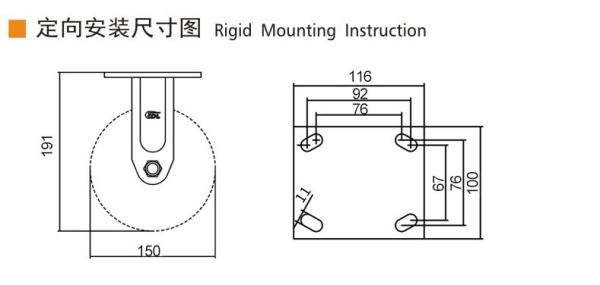

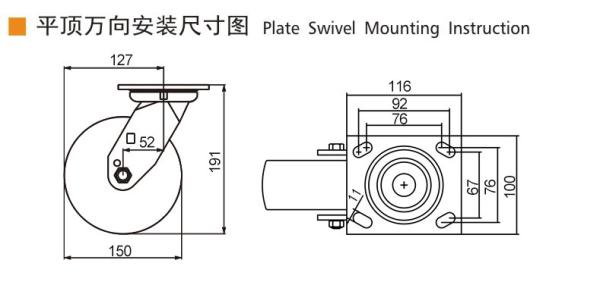

Mounting Height :
191mm
Frame Material :
Hot-Rolled Plate
Plate Thickness :
6mm
Bracket Thickness :
5mm
Surface Treatment :
Zinc Coating
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearing
Tread Color :
Yellow
Applicable Temperature :
-30℃～80℃
Tread Hardness :
95A
Description

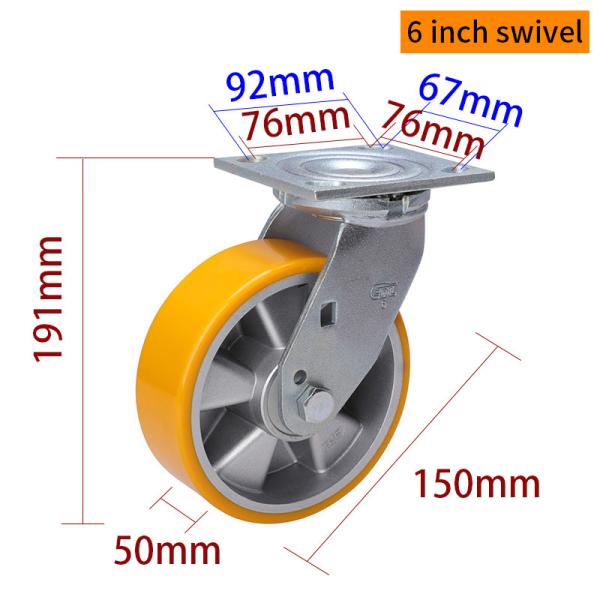

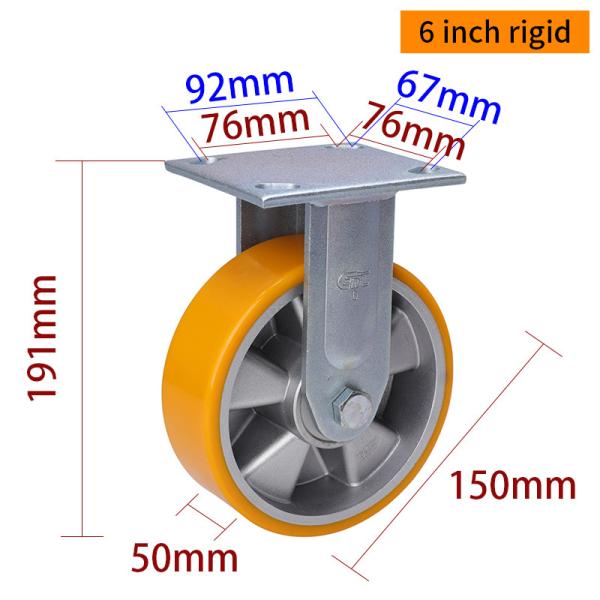

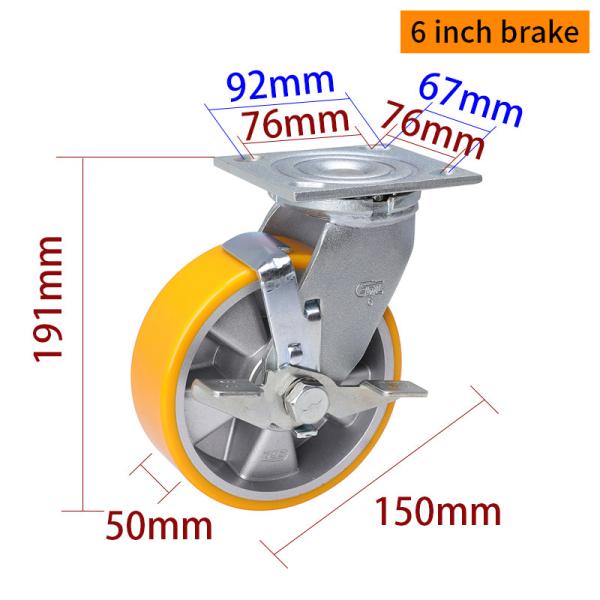

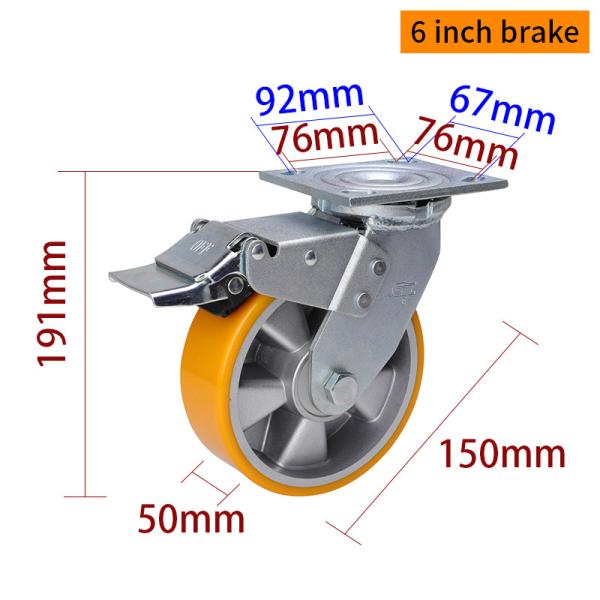

EDL Heavy Duty 6inch 460kg Plate Aluminum Caster by Rigid, Swivel and Brake type 736-86A


The EDL Heavy Duty 6-inch 460kg Plate Aluminum Caster 736-86A is designed for demanding industrial applications, offering exceptional durability and load capacity. Its yellow TPU wheel ensures excellent wear resistance, shock absorption, and floor protection, making it ideal for warehouses, logistics, and heavy-duty manufacturing. The aluminum alloy wheel core provides a perfect balance of strength and lightweight construction, reducing overall equipment weight without compromising stability. The 6mm thick hot-rolled steel plate enhances structural integrity, ensuring a secure and reliable installation. Available in rigid, swivel, dual brake, wheel brake, side brake, and directional lock options, this caster adapts to various operational requirements, offering precise control and smooth mobility. Whether for material handling, automated systems, or heavy machinery, this caster delivers long-lasting performance in even the most demanding environments.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
736-86A 6" 150mm 50mm 61mm 460Kg Aluminum

TPU

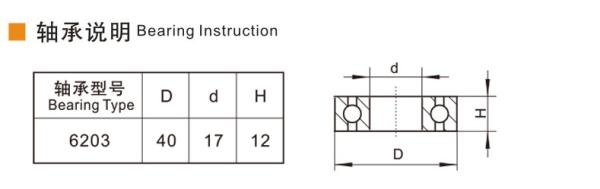

Double ball

bearing 6203

 -30℃～80℃ 95A

Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86AHeavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A

Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86AHeavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A

Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86AHeavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A

Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86AHeavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A

Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86AHeavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A

Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86AHeavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A

Heavy Duty Castors 150mm 6 Inch Swivel Caster With Brake 736-86A

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
