Specifications
Brand Name :
EDL
Model Number :
784-26
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
4inch(100mm)
Dynamic Load :
750kg
Tread Material :
TPA
Mounting Height :
151mm
Frame Material :
Hot-Rolled Plate
Plate Thickness :
9.5mm
Surface Treatment :
Zinc Coating
Bracket Thickness :
6mm
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearing
Tread Color :
White
Applicable Temperature :
-20℃～120℃
Tread Hardness :
67D
Name :
Heavy Duty Casters
Description

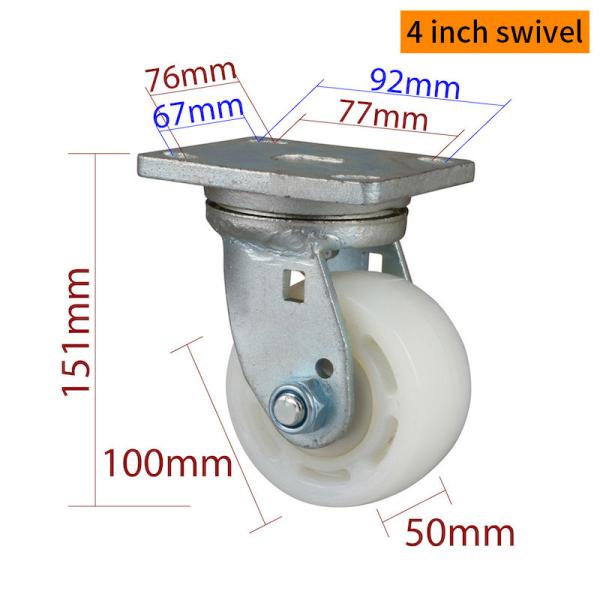

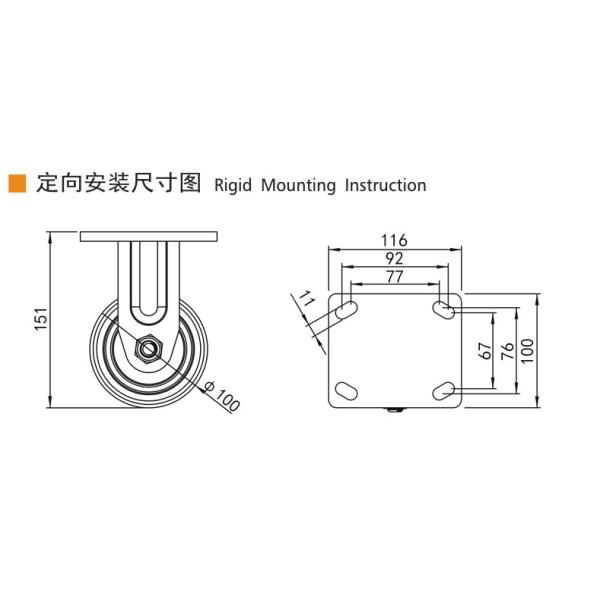

EDL Heavy Duty 4inch TPA Caster 750kg Load Plate Mount Rigid , Swivel and Brake 784-26

The EDL Heavy Duty 4-inch TPA Caster 750kg Load Plate Mount 784-26 is designed for extreme durability and high-temperature resistance. The white TPA wheel withstands temperatures ranging from -20°C to 120°C, making it suitable for a wide range of industrial applications. The 9.5mm thick mounting plate and 6mm thick hot-rolled steel bracket ensure superior strength and load capacity, supporting up to 750kg with stability and reliability. This caster is available in rigid, swivel, and brake options, with a wheel brake mechanism that secures the wheel but allows directional movement for controlled mobility. Its reinforced structure and high-performance materials provide exceptional wear resistance, impact absorption, and smooth operation in demanding environments.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
784-26 4" 100mm 50mm 61mm 750Kg /

TPA

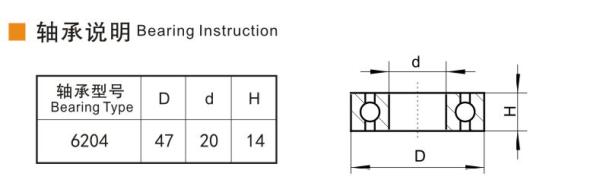

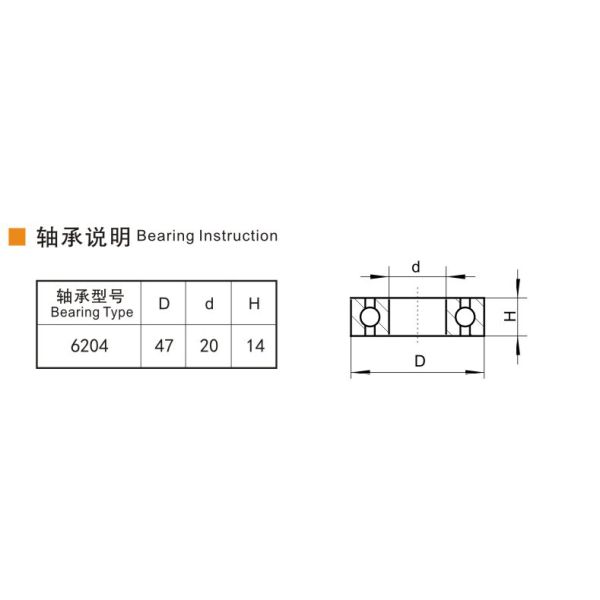

Double ball

bearing 6204

 -20℃～120℃ 67D

4 Inch Heavy Duty Casters 750kg Load Plate Mount Caster Wheels 784-264 Inch Heavy Duty Casters 750kg Load Plate Mount Caster Wheels 784-26

4 Inch Heavy Duty Casters 750kg Load Plate Mount Caster Wheels 784-264 Inch Heavy Duty Casters 750kg Load Plate Mount Caster Wheels 784-26

4 Inch Heavy Duty Casters 750kg Load Plate Mount Caster Wheels 784-264 Inch Heavy Duty Casters 750kg Load Plate Mount Caster Wheels 784-26

4 Inch Heavy Duty Casters 750kg Load Plate Mount Caster Wheels 784-26

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
