Specifications
Brand Name :
EDL
Model Number :
776-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Wheel Diameter :
6inch(150mm)
Dynamic Load :
550kg
Tread Material :
TPU
Core Material :
Aluminum
Mounting Type :
Rigid/Swivel/Brake
Mounting Height :
194mm
Frame Material :
Hot-Rolled Plate
Plate Thickness :
5mm
Bracket Thickness :
4mm
Surface Treatment :
Zinc Coating
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearing
Tread Color :
Yellow
Applicable Temperature :
-30℃～80℃
Tread Hardness :
95A
Name :
Heavy Duty Casters
Description

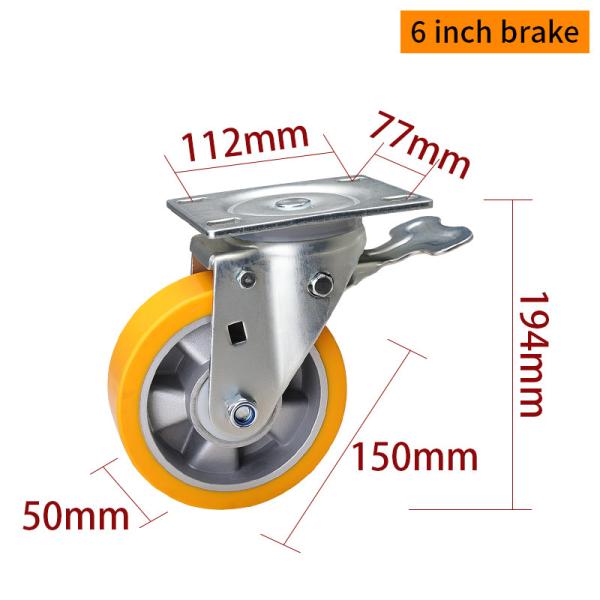

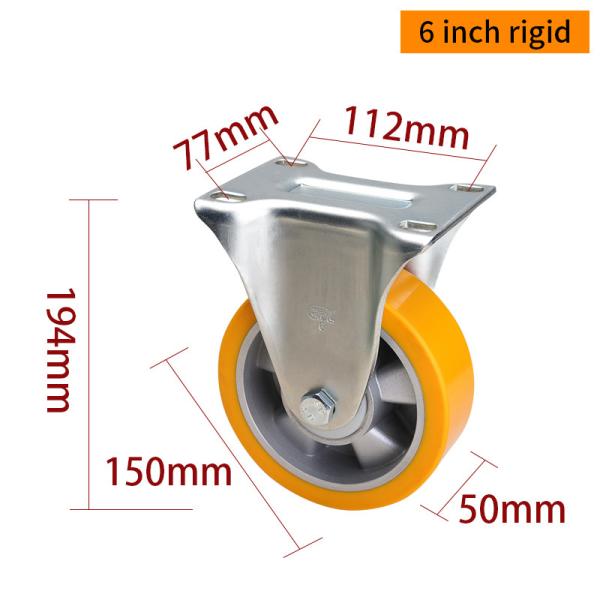

EDL 6inch Heavy Duty Aluminum Caster 550kg Load Plate Mount Rigid , Swivel and Brake 776-86A


The EDL 6inch Heavy Duty Aluminum Caster 550kg Load Plate Mount 776-86A is designed to meet the demands of high-load applications with exceptional durability and stability. The wheel is crafted from premium yellow TPU, providing excellent wear resistance, shock absorption, and floor protection. Its aluminum core ensures a lightweight yet strong structure, enhancing load-bearing performance up to 550kg. The caster features a 5mm thick mounting plate and a 4mm thick hot-rolled steel bracket, ensuring long-lasting strength. With multiple brake options, including double brake, wheel brake, side brake, and front brake, this caster offers maximum safety and adaptability for industrial carts, warehouse trolleys, and heavy-duty machinery. Whether for smooth maneuverability or secure locking, the 776-86A delivers reliable performance across various environments.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
776-86A 6" 150mm 50mm 61mm 550Kg Aluminum

TPU

Double ball

bearing 6204

 -30℃～80℃ 95A


6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate

6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate

6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate

6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate

6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate

6 Inch Caster Wheels Heavy Duty 550kg Load Caster Wheel Mounting Plate

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
