EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86
Specifications
Brand Name :
EDL
Model Number :
734-86
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
Heavy Duty Casters
Wheel Diameter :
4inch(100mm)
Dynamic Load :
350kg
Tread Material :
TPU
Core Material :
PP
Mounting Type :
Rigid/Swivel/Brake
Mounting Height :
143mm
Frame Material :
Hot-Rolled Plate
Surface Treatment :
Zinc Coating
Plate Thickness :
6mm
Bracket Thickness :
5mm
Bracket Width :
61mm
Wheel width :
50mm
Bearing :
Double ball bearings
Tread Color :
Red
Applicable Temperature :
-20℃～80℃
Tread Hardness :
98A
Description

EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86


The EDL Heavy Duty 4-inch 350kg Plate TPU Caster 734-86 is engineered for optimal performance and reliability. Compact with a 4-inch diameter, this caster combines strength and versatility, making it ideal for both industrial applications and mobile equipment. With a robust 350kg load-bearing capacity, it ensures smooth and efficient mobility for heavy-duty machinery and trolleys. The sturdy bracket design guarantees stability during operation, while the high-quality TPU material offers outstanding wear resistance, ensuring long-lasting performance. Whether used in demanding environments or for everyday applications, this caster stands as a symbol of EDL Casters' commitment to superior craftsmanship and innovation.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
734-86 4" 100mm 50mm 61mm 350Kg PP

TPU

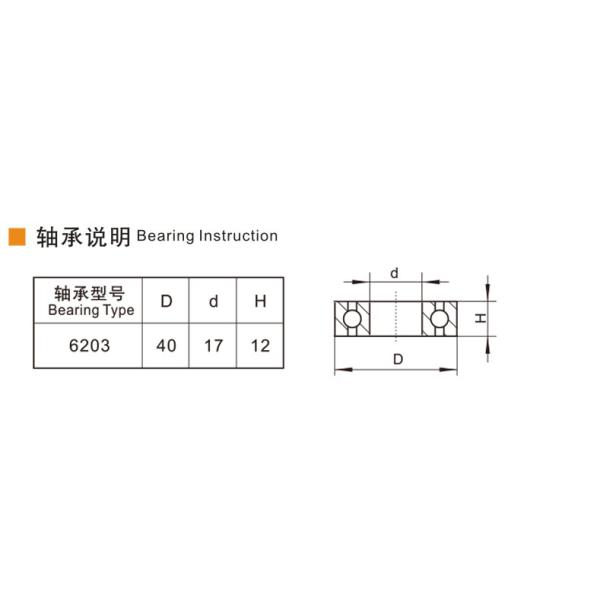

Double ball

bearing 6203

 -20℃～80℃ 98A

EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86

EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86

EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86

EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86

EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86

EDL Heavy Duty 4inch 350kg Plate TPU Caster by Rigid, Swivel and Brake type 734-86

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
