Specifications
Brand Name :
EDL
Model Number :
M4125S-86A
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
Equipment Casters
Wheel Diameter :
2.5inch(65mm)
Tread Material :
TPU
Core Material :
Aluminum
Dynamic Load :
300kg
Mounting Height :
91mm
Frame Material :
Cold-Rolled Plate
Standard Threaded :
M12×25
Bracket Thickness :
2mm
Surface Treatment :
Zinc Coating
Bracket Width :
41mm
Wheel width :
35mm
Bearing :
Double ball bearings
Tread Color :
Brown
Applicable Temperature :
-30℃～80℃
Tread Hardness :
92A
Description

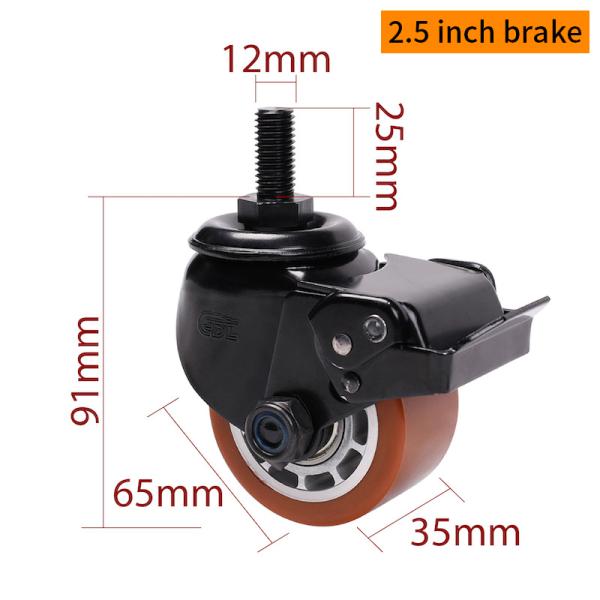

EDL TPU Equipment Casters 2.5 Inch Threaded Casters 300Kg Road with Brake M4125S-86A


The EDL 2.5-Inch Threaded Equipment Caster with Brake features a premium-grade TPU tread bonded to a high-strength aluminum alloy core, manufactured using advanced casting technology. This process enhances durability, structural stability, and impact resistance, making the caster suitable for long-term use under heavy-duty industrial conditions.

TPU (thermoplastic polyurethane) offers excellent shock absorption, low rolling noise, and smooth mobility, even over uneven surfaces. It protects sensitive flooring and minimizes vibration transfer to the equipment—ideal for workplaces where both performance and quiet operation matter. The wheel also resists wear, cracking, and deformation, making it a superior alternative to standard rubber or plastic casters.

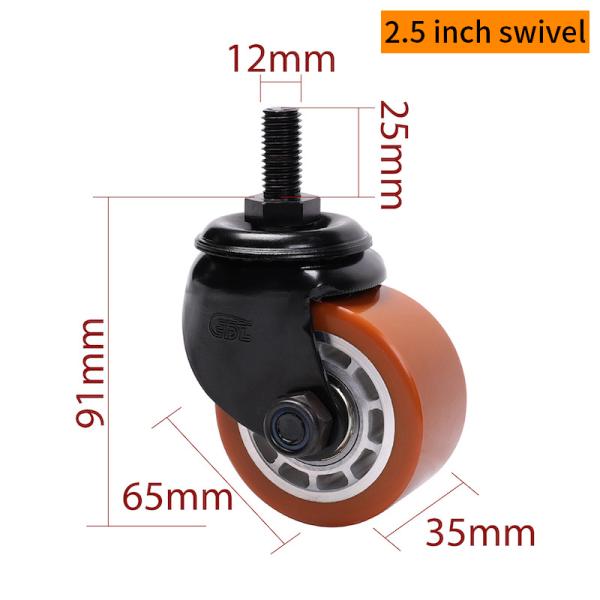

This caster has a larger 2.5-inch diameter and a low-profile design that improves balance and load distribution, particularly for heavy equipment. It’s fitted with a sturdy M12×25 threaded stem for stable mounting and easy installation. With a load capacity of up to 300kg per caster, it’s an optimal choice for equipment that demands both durability and precision handling.

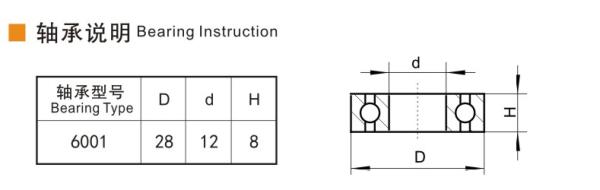

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
M4125-86A 2.5" 65mm 35mm 41mm 300Kg Aluminum

TPU

Double ball

bearing 6001

 -30℃～80℃ 92A


EDL TPU Equipment Casters 2.5 Inch Threaded Casters 300Kg Road With Brake M4125S-86AEDL TPU Equipment Casters 2.5 Inch Threaded Casters 300Kg Road With Brake M4125S-86A

EDL TPU Equipment Casters 2.5 Inch Threaded Casters 300Kg Road With Brake M4125S-86AEDL TPU Equipment Casters 2.5 Inch Threaded Casters 300Kg Road With Brake M4125S-86A

EDL TPU Equipment Casters 2.5 Inch Threaded Casters 300Kg Road With Brake M4125S-86A

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
