EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road
Specifications
Brand Name :
EDL
Model Number :
M4125S-16
Certification :
ISO9001, ISO14001, RoHS
Place of Origin :
China
MOQ :
1pcs
Price :
Negotiate
Payment Terms :
T/T
Supply Ability :
30,000pcs/day
Delivery Time :
3-15days
Packaging Details :
Carton
Name :
Equipment Casters
Wheel Diameter :
2.5inch(65mm)
Tread Material :
PA
Mounting Type :
Swivel/Brake
Dynamic Load :
300kg
Mounting Height :
91mm
Frame Material :
Cold-Rolled Plate
Standard Threaded :
M12×25
Bracket Thickness :
2mm
Surface Treatment :
Zinc Coating
Bracket Width :
41mm
Wheel width :
35mm
Bearing :
Double ball bearings
Tread Color :
Black
Applicable Temperature :
-20℃～100℃
Tread Hardness :
67D
Description

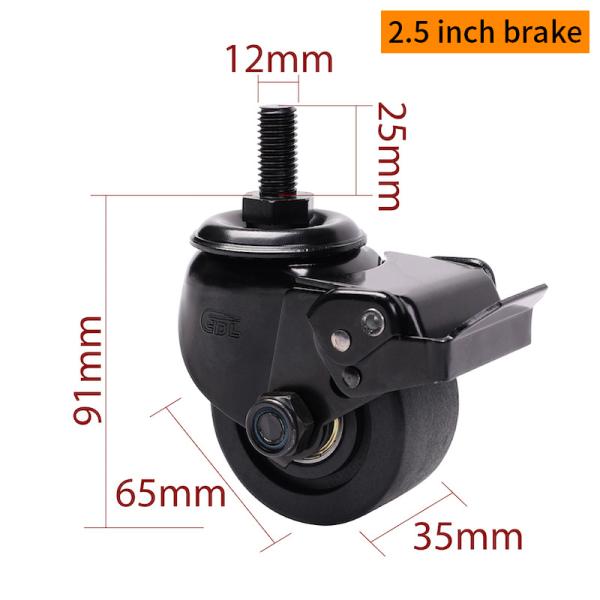

EDL Equipment Casters 2.5 Inch Threaded Casters with Brake M4125S-16 300Kg Road

The EDL 2.5-Inch Threaded Equipment Caster with Brake features a black high-strength nylon (PA) wheel, engineered for exceptional wear resistance, impact strength, and corrosion resistance. The PA material offers excellent hardness and dimensional stability, making it ideal for long-term use under heavy loads and in demanding industrial environments. It resists deformation and maintains consistent performance even during frequent movement and high-pressure conditions. This caster is designed with a low center of gravity, which enhances overall equipment stability and reduces the risk of tipping or swaying during transport. It is particularly suitable for large machinery, heavy-duty appliances, and medical or industrial equipment where both safety and load-bearing capability are critical. The caster uses an M12×25 threaded stem for secure installation and broad compatibility with various equipment structures. Equipped with a reliable brake mechanism, it ensures firm locking to prevent unwanted rolling, enhancing both operational safety and control. With a load capacity of up to 300kg, this caster is a high-performance solution for heavy-duty equipment applications.

Wheel ltem No.Instruction

Wheel

Item No.

 Size

Wheel

Diameter

Wheel

Width

Bracket

Width

Load

Capacity

 Core Tread Bearing

Applicable

Temperature

 Hardness
M4125-16 2.5" 65mm 35mm 41mm 300Kg /

PA

Double ball

bearing 6001

 -20℃～100℃ 67D


EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg RoadEDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road

EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg RoadEDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road

EDL 2.5 Inch Threaded Equipment Moving Casters With Brake M4125S-16 300Kg Road

FAQ:

Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.

Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from Yiwu. Welcome to visit.

Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.

Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product it's 50%) of deposit upon signing the PI and the rest will be cleared by T/T before delivery.

Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
