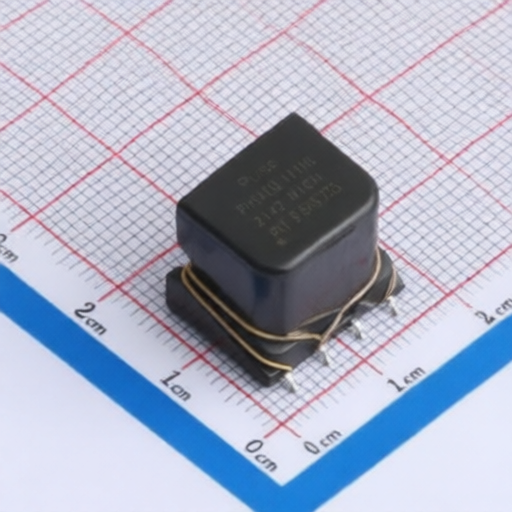

Gate Drive Transformer PULSE PH9400.111NLT with 12mm Creepage and Compliance to IEC Safety Standards
Gate Drive Transformer PULSE PH9400.111NLT with 12mm Creepage and Compliance to IEC Safety Standards
Specifications
Inductance :
4.5mH
Description :
4.5mH SMD,16.7x12.7mm Specialty Transformers RoHS
Mfr. Part # :
PH9400.111NLT
Model Number :
PH9400.111NLT
Package :
SMD,16.7x12.7mm
Description

Product Overview

The Pulse Electronics High Isolation Gate Drive Transformers are designed for applications requiring precise gate drive control with enhanced safety and isolation. These transformers offer robust performance with options for basic and reinforced insulation, making them suitable for demanding industrial and medical environments. The SMT Sidecar package with 12mm creepage ensures compliance with various international safety standards. Available in NL and ANL versions, they provide high isolation voltages and reliable operation up to 125C.

Product Attributes

  • Brand: Pulse Electronics
  • Package Type: SMT Sidecar
  • Insulation Types: Basic Insulation (NL versions), Reinforced Insulation (ANL versions)
  • Certifications (ANL versions): IEC 60950, IEC 61558, IEC 61010 & IEC 60601
  • Creepage Distance: 12mm
  • Compliance: IEC60950-1 & IEC61558-1/-2-16 reinforced insulation requirements for working voltage to 600Vrms max, OVC II, Pollution Degree 2 and altitude up to 2000m.
  • Optional Packaging: Tape & Reel (add "T" suffix)

Technical Specifications

Part Number Turns Ratio ET (V * µsec MAX) Core Loss Factor K1 Primary Inductance (1-4) (mH ±35%) Leakage Inductance Drive to Gate (µH MAX) Parasitic Capacitance Drive to Gate (pF MAX) DCR Drive (1-4) (Ω MAX) DCR Gates (5-6) (7-8) (Ω MAX) Hi-Pot Drive-Gate (Vrms) Gate-Gate (Vrms)
PH9400.111NL 1:1:1 315 0.67 4.5 5.0 60 1.8 2.5 4000 1500
PH9400.566NL 5:6:6 315 0.67 4.5 3.5 60 1.8 3.0 4000 1500
PH9400.122NL 1:2:2 250 0.84 2.88 3.5 60 1.5 4.2 4000 1500
PH9400.655NL 6:5:5 375 0.56 6.48 5.3 60 2.2 2.5 4000 1500
PH9400.211NL 2:1:1 375 0.56 6.48 8.0 60 2.2 1.6 4000 1500
PH9400.111ANL 1:1:1 160 1.32 1.21 2.5 45 0.9 0.9 5000 2000
PH9400.566ANL 5:6:6 155 1.36 1.12 3.0 45 0.9 1.0 5000 2000
PH9400.233ANL 2:3:3 125 1.68 0.72 2.0 45 0.7 1.0 5000 2000
PH9400.655ANL 6:5:5 185 1.14 1.62 3.0 45 1.0 0.9 5000 2000
PH9400.211ANL 2:1:1 185 1.14 1.62 3.5 45 1.0 0.55 5000 2000
Specification Value
Operating Temperature -40°C to +125°C
Continuous Isolation Voltage (Drive-Gate) Up to 5000Vrms
Continuous Isolation Voltage (between windings) 600Vrms
Weight 2.5 grams
Tape & Reel Quantity 150/Reel
Tray Quantity 80/tray
Dimensions (Inches) .161 [4.10] 3X .161[4.10](=.484[12.3]) (.500) [(12.70)] .650 MAX [16.50 MAX] .004 MIN [0.10 MIN] (.557) [(14.15)]
Suggested Pad Layout (Inches) .005[0.127] 8X .559 MAX [14.20 MAX] .657 MAX [16.70 MAX] .502 [12.75] .659 [16.75] .161 [4.10] 3X .161[4.10](=.484[12.3]) .079 [ 2.00]

Notes:

  • The max ET is calculated to limit core loss and temperature rise at 100KHz based on a bipolar flux swing of 2100Ga Peak. This value needs to be derated for higher frequencies using the temperature rise calculation.
  • Temperature rise calculation: Temperature Rise (°C) = 71 * (Core Loss(W) + Copper Loss (W)).
  • Copper Loss (W) = Irms * (DCR_Drive + (# of Gates) * DCR_Gates).
  • Core Loss (W) = 5.1E-10 * (Frequency in kHz) * (K1 * ET).
  • Continuous isolation voltage confirmed by 125°C/1000hrs accelerated aging with bias voltage applied between gate and drive windings.
  • All testing is made at 100kHz, 0.1VAC unless otherwise specified.
