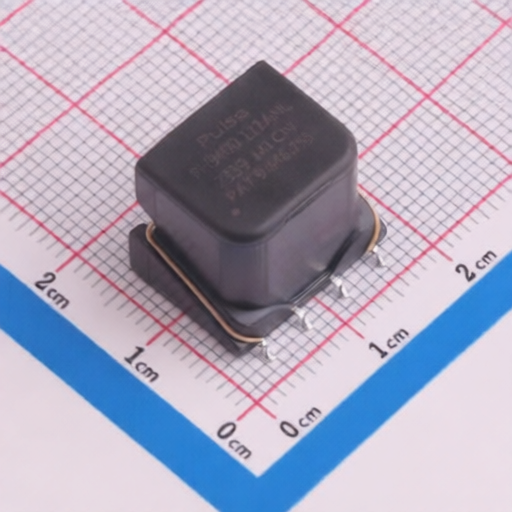

High Isolation Gate Drive Transformer PULSE PH9400.111ANLT SMT Package Supporting Up to 8W Driver Power
High Isolation Gate Drive Transformer PULSE PH9400.111ANLT SMT Package Supporting Up to 8W Driver Power
Specifications
Description :
SMD-8P,16.7x12.7mm Specialty Transformers RoHS
Mfr. Part # :
PH9400.111ANLT
Model Number :
PH9400.111ANLT
Package :
SMD-8P,16.7x12.7mm
Description

Product Overview

The PH9400.XXXNL and PH9400.XXXANL series are Surface Mount (SMT) High Isolation Gate Drive Transformers designed for demanding applications. These transformers offer robust isolation capabilities, with the NL versions providing basic insulation up to 600Vrms continuous and the ANL versions offering reinforced insulation up to 1000Vrms continuous. They are suitable for driving gate components in power electronics, supporting up to 8W of driver power. The compact Sidecar package features 12mm creepage for enhanced safety and compliance with various international standards.

Product Attributes

  • Brand: Pulse Electronics
  • Package Type: SMT (Surface Mount)
  • Insulation: Basic (NL versions) and Reinforced (ANL versions)
  • Creepage Distance: 12mm
  • Certifications: Compliant with IEC 60950, IEC 61558, IEC 61010 & IEC 60601 for reinforced insulation (ANL versions); Basic insulation requirements (NL versions).
  • Patented Technology: US Patent 9,646,755
  • Optional Packaging: Tape & Reel (add 'T' suffix to part number)

Technical Specifications

Part Number Turns Ratio ET (1-4) (V * sec MAX) Core Loss Factor K1 Primary Inductance (1-4) (mH +/-35%) Leakage Inductance Drive to Gate (H MAX) Parasitic Capacitance Drive to Gate (pF MAX) DCR Drive (1-4) ( MAX) DCR Gates (5-6) (7-8) ( MAX) Hi-Pot Drive-Gate (Vrms) Hi-Pot Gate-Gate (Vrms)
PH9400.XXXNL - Basic Insulation (600Vrms continuous isolation)
PH9400.111NL 1:1:1 315 0.67 4.5 5.0 60 1.8 2.5 4000 1500
PH9400.566NL 5:6:6 315 0.67 4.5 3.5 60 1.8 3.0 4000 1500
PH9400.122NL 1:2:2 250 0.84 2.88 3.5 60 1.5 4.2 4000 1500
PH9400.655NL 6:5:5 375 0.56 6.48 5.3 60 2.2 2.5 4000 1500
PH9400.211NL 2:1:1 375 0.56 6.48 8.0 60 2.2 1.6 4000 1500
PH9400.XXXANL - Reinforced Insulation (1000Vrms continuous isolation)
PH9400.111ANL 1:1:1 160 1.32 1.21 2.5 45 0.9 0.9 5000 2000
PH9400.566ANL 5:6:6 155 1.36 1.12 3.0 45 0.9 1.0 5000 2000
PH9400.233ANL 2:3:3 125 1.68 0.72 2.0 45 0.7 1.0 5000 2000
PH9400.655ANL 6:5:5 185 1.14 1.62 3.0 45 1.0 0.9 5000 2000
PH9400.211ANL 2:1:1 185 1.14 1.62 3.5 45 1.0 0.55 5000 2000
General Specifications
Operating Temperature -40C to +125C
Weight 2.5 grams
Tape & Reel Packaging 150/Reel
Tray Packaging 80/tray

2412201934_PULSE-PH9400-111ANLT_C19192919.pdf
