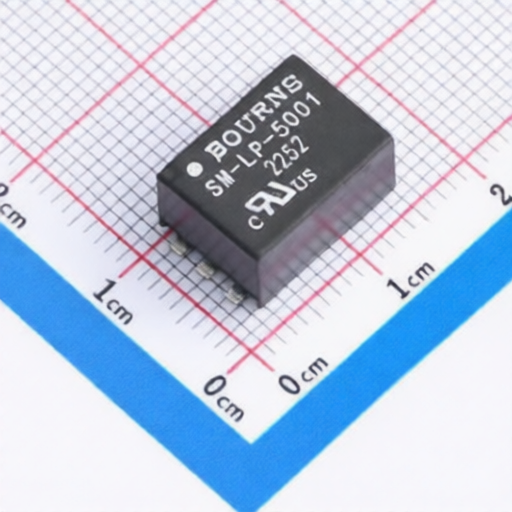

Compact Design Surface Mount Line Matching Transformer BOURNS SM-LP-5001 Series with RoHS Compliance
Compact Design Surface Mount Line Matching Transformer BOURNS SM-LP-5001 Series with RoHS Compliance
Specifications
Description :
SMD-6P,12.8x9mm Specialty Transformers RoHS
Mfr. Part # :
SM-LP-5001
Model Number :
SM-LP-5001
Package :
SMD-6P,12.8x9mm
Description

Bourns SM-LP-5001 Series - Surface Mount Line Matching Transformers

The SM-LP-5001 Series are subminiature, surface-mount line matching transformers designed for telecommunications and instrumentation applications. Featuring a low seated height of 7.5 mm and exceptional distortion levels of 0.015%, these vacuum-encapsulated transformers offer reliable performance in compact designs. They are UL60950 certified and RoHS compliant.

Product Attributes

  • Brand: Bourns
  • Series: SM-LP-5001
  • Certifications: UL60950, RoHS compliant
  • Material: Terminal Plating - Sn/Ag/Cu

Technical Specifications

Model Nominal Impedance Turns Ratio Insertion Loss Frequency Response Return Loss Balance Distortion Dielectric Strength Insulation Resistance Resistance (Primary/Secondary) Shunt Inductance Shunt Loss Leakage Inductance Power Level Operating Temperature Storage Temperature
SM-LP-5001 600 1:1 2.0 dB max. @ 2 kHz 0.25 dB max. 200-4 kHz 24 dB min. 200-4 kHz* 80 dB min. -76 dB max. @ 600 Hz, -10 dBm 2000 VRMS for 1 min. 100 M @ 500 V DC 115 15 % 3.8 H min. 7500 min. 6 mH typ. @ 1 kHz 10 dBm -20 C to +85 C -40 C to +85 C

Applications

  • Modems (V32)
  • Laptop Computers
  • Telecommunications
  • Instrumentation

How To Order

SM-LP-5001 __ Model

Packaging:

  • Blank = Packaged in tubes
  • E = Tape and reel (400 pcs. per reel)

*For use with recommended circuit (BS6305 impedance Class A non-speech or Class B speech).

**SM-LP-5001 is symmetrical, meaning there is no real primary nor secondary winding.
