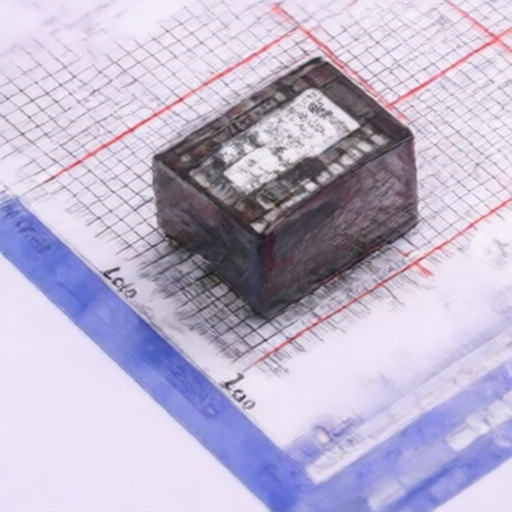

Low Distortion Surface Mount Transformer BOURNS SM-LP-5001E with 0.25 Decibel Maximum Frequency Response
Low Distortion Surface Mount Transformer BOURNS SM-LP-5001E with 0.25 Decibel Maximum Frequency Response
Specifications
Description :
SMD-6P,12.8x9mm Specialty Transformers RoHS
Mfr. Part # :
SM-LP-5001E
Model Number :
SM-LP-5001E
Package :
SMD-6P,12.8x9mm
Description

Bourns SM-LP-5001 Series - Surface Mount Line Matching Transformers

The Bourns SM-LP-5001 Series are subminiature, surface-mount line matching transformers designed for telecommunications and instrumentation applications. Featuring a low seated height of 7.5 mm and exceptional distortion performance of only 0.015%, these transformers are vacuum encapsulated for enhanced reliability. They are UL60950 certified and RoHS compliant, making them suitable for modern electronic designs.

Product Attributes

  • Brand: Bourns
  • Model Series: SM-LP-5001
  • Certifications: UL60950, RoHS compliant
  • Material: Terminal Plating - Sn/Ag/Cu
  • Encapsulation: Vacuum encapsulated

Technical Specifications

SpecificationValue
Nominal Impedance600
Turns Ratio1:1
Insertion Loss2.0 dB max. at 2 kHz
Frequency Response0.25 dB max. 200-4 kHz
Return Loss24 dB min. 200-4 kHz*
Balance80 dB min.
Distortion-76 dB max. @ 600 Hz, -10 dBm
Dielectric Strength2000 VRMS for 1 min.
Insulation Resistance100 M @ 500 V DC
Resistance (Primary/Secondary)115 15 %
Shunt Inductance3.8 H min.
Shunt Loss7500 min.
Leakage Inductance6 mH typ. @ 1 kHz
Power Level10 dBm
Operating Temperature-20 C to +85 C
Storage Temperature-40 C to +85 C

Applications

  • Modems (V32)
  • Laptop Computers
  • Telecommunications
  • Instrumentation

How To Order

SM-LP-5001 __ Model

Packaging:

  • Blank = Packaged in tubes
  • E = Tape and reel (400 pcs. per reel)

Dimensions

See attached diagram for detailed dimensions in MM (INCHES).

Materials

  • Terminal Plating: Sn/Ag/Cu

*For use with recommended circuit (BS6305 impedance Class A non-speech or Class B speech).

**SM-LP-5001 is symmetrical, meaning there is no real primary nor secondary winding.

Specifications are subject to change without notice. Users should verify actual device performance in their specific applications.


2410010000_BOURNS-SM-LP-5001E_C840532.pdf
