Product Overview

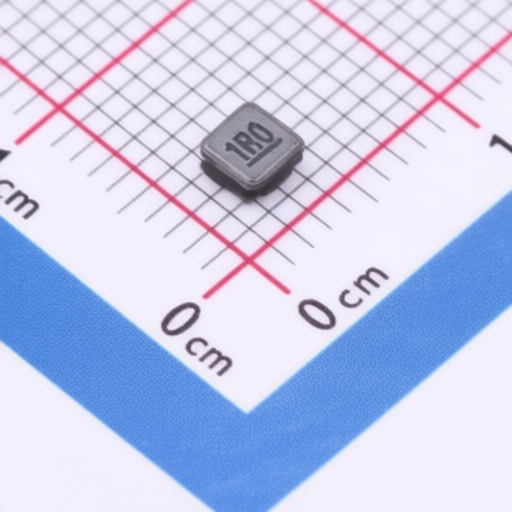

The CKCSH3015F-1uH/M is a SMD Power Inductor from Shenzhen Cenker Technology Group Co., Ltd. Designed for general electronic equipment, this inductor offers reliable performance with a nominal inductance of 1uH and a tolerance of 20%. Its operating temperature range is -40 to +125. Applications include audio-visual entertainment, home appliances, computers, office automation, communication devices, power modules, LED lighting, measuring equipment, machine tools, and industrial control boards. It is also suitable for automotive, medical, military, aerospace, and submarine equipment applications, with specific consultation required for these specialized uses.

Product Attributes

• Brand: Cenker
• Product Type: SMD Power Inductor
• Origin: Shenzhen, China (implied by company address)
• Materials: Ferrite Core, Copper Wire, Sn Solder, Epoxy Glue, Marking Ink
• MSL Rating: MSL, level 1

Technical Specifications

Reflow Soldering Profile

Pre-heating: 150~200, 60~180 Sec. Ramp-up: 3/sec max. Reflow: Peak 260, 20~40 Sec. Cooling: 6/sec max.

Iron Soldering

Power: Max. 30W. Pre-heating: 150, 1 Minute. Soldering Tip temperature: 350 Max. Soldering time: 3sec Max.

Matters Needing Attention

• Consider non-magnetic shielded component placement to avoid magnetic interference.
• Avoid placing near magnets or objects with magnetic force.
• Do not store in high temperature, high humidity, dusty, or corrosive environments.
• Allow for self-heating during operation in thermal design.
• Use anti-static wrist straps.
• Avoid direct contact with terminals due to potential solderability reduction from hand grease.
• Do not excessively bend terminals.
• Product is sensitive to direct impact, which can cause damage.
• Be cautious with potting or gluing materials, as shrinkage can affect electrical characteristics and mechanical properties. Ensure compatibility with enameled wire insulation, plastic skeleton, and glue. Potting materials can alter high-frequency characteristics.
• Surface rust may occur on alloy or non-coated products in humid environments but does not affect characteristics.
• Product is intended for general electronic equipment. For specialized applications (automotive, medical, military, aerospace, submarine), contact the sales department.
• Exceeding storage time may lead to deteriorated solderability of terminal electrodes.
