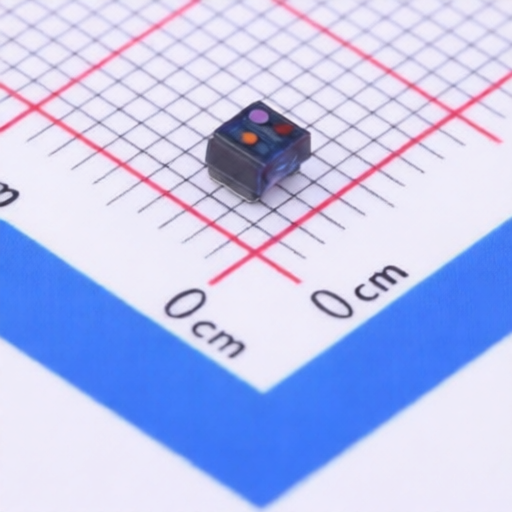

Ferrite Chip Inductor EMTEK LCF1008-270K-T Designed for Stable Operation in Various Electronic Systems
Ferrite Chip Inductor EMTEK LCF1008-270K-T Designed for Stable Operation in Various Electronic Systems
Specifications
Current - Saturation (Isat) :
450mA
Description :
450mA 1008 Fixed Inductors RoHS
Mfr. Part # :
LCF1008-270K-T
Model Number :
LCF1008-270K-T
Package :
1008
Description

EMTEK LCF1008-SERIES Ferrite Chip Inductors

The EMTEK LCF1008-Series is a range of Ferrite Chip Inductors designed for reliable delivery to users. These inductors are suitable for various electronic applications requiring precise inductance values and performance characteristics.

Product Attributes

  • Brand: EMTEK
  • Product Name: LCF1008-SERIES
  • Origin: Taiwan, R.O.C.
  • Material: Ferrite core, Copper wire, UV Epoxy

Technical Specifications

Part Number Inductance (uH) Tolerance Q/MHz Typ. SRF(Min.) (MHz) Rdc ()Max. Isat (mA) Irms (mA) Color Coding
LCF1008-1R1-T 1.1 J=5%, K=10% 25/7.9 300 0.56 35 360 Red, Brown, Orange, White
LCF1008-1R5-T 1.5 J=5%, K=10% 27/7.9 300 0.56 35 360 Red, Brown, Orange, White
LCF1008-R82-T 0.82 J=5%, K=10% 32/7.9 460 0.20 130 990 Red, Red, Red, Black
LCF1008-R22-T 0.22 J=5%, K=10% 27/7.9 1100 0.15 290 2100 Red, Red, Red, Gray
LCF1008-R68-T 0.68 J=5%, K=10% 27/7.9 900 0.20 170 1800 Red, Brown, Orange, Violet
LCF1008-R10-T 1.0 J=5%, K=10% 19/7.9 1000 0.042 140 1500 Brown, Brown, Red, Violet
LCF1008-1R8-T 1.8 J=5%, K=10% 27/7.9 900 0.34 180 1200 Red, Red, Red, Brown
LCF1008-R47-T 0.47 J=5%, K=10% 35/25 400 0.35 230 1600 Yellow, Violet, Red, Brown
LCF1008-R39-T 0.39 J=5%, K=10% 35/25 460 0.20 290 2100 Red, Red, Red, Gray
LCF1008-R56-T 0.56 J=5%, K=10% 27/7.9 900 0.20 170 1800 Red, Brown, Orange, Violet
LCF1008-78N-T 0.078 J=5%, K=10% 19/7.9 1000 0.042 140 1500 Brown, Brown, Red, Violet
LCF1008-1R2-T 1.2 J=5%, K=10% 25/7.9 990 0.26 210 1800 Brown, Brown, Gray, Violet
LCF1008-2R7-T 2.7 J=5%, K=10% 27/7.9 460 0.20 130 990 Red, Red, Red, Gray
LCF1008-2R2-T 2.2 J=5%, K=10% 32/7.9 460 0.20 160 1100 Red, Red, Red, Gray
LCF1008-3R9-T 3.9 J=5%, K=10% 32/7.9 360 0.20 180 880 Red, Red, Red, Gray
LCF1008-3R3-T 3.3 J=5%, K=10% 32/7.9 360 0.20 180 880 Red, Red, Red, Gray
LCF1008-4R7-T 4.7 J=5%, K=10% 27/7.9 360 0.20 180 880 Red, Red, Red, Gray
LCF1008-271-T 270 J=5%, K=10% 13/1 135 1.00 95 850 Blue, Red, Red, Yellow
LCF1008-5R6-T 5.6 J=5%, K=10% 27/7.9 60 1.05 60 670 Gray, Red, Red, Blue
LCF1008-6R8-T 6.8 J=5%, K=10% 27/7.9 55 1.20 60 640 Gray, Red, Red, Blue
LCF1008-8R2-T 8.2 J=5%, K=10% 25/7.9 55 1.20 60 640 Gray, Red, Red, Blue
LCF1008-150-T 15 J=5%, K=10% 23/2.5 36 2.38 32 450 Orange, Green, Red, Yellow
LCF1008-270-T 27 J=5%, K=10% 23/2.5 15 2.50 22 270 Orange, Green, Red, Yellow
LCF1008-390-T 39 J=5%, K=10% 18/2.5 17 2.38 22 270 Orange, Green, Red, Yellow
LCF1008-220-T 22 J=5%, K=10% 23/2.5 17 2.38 22 270 Orange, Green, Red, Yellow
LCF1008-180-T 18 J=5%, K=10% 23/2.5 17 2.38 22 270 Orange, Green, Red, Yellow
LCF1008-330-T 33 J=5%, K=10% 23/2.5 17 2.50 22 170 Orange, Green, Red, Yellow
LCF1008-151-T 150 J=5%, K=10% 13/1 3 1.55 340 310 Brown, Green, Red, Orange
LCF1008-221-T 220 J=5%, K=10% 13/1 2 1.55 340 310 Brown, Green, Red, Orange
LCF1008-101-T 100 J=5%, K=10% 13/1 2 1.55 340 310 Brown, Green, Red, Orange
LCF1008-331-T 330 J=5%, K=10% 13/1 2 1.55 340 310 Brown, Green, Red, Orange
LCF1008-120-T 12 J=5%, K=10% 23/2.5 29 2.10 180 580 Orange, Gray, Red, Violet
LCF1008-470-T 47 J=5%, K=10% 23/2.5 21 2.10 180 580 Orange, Gray, Red, Violet
LCF1008-680-T 68 J=5%, K=10% 20/2.5 21 2.10 180 580 Orange, Gray, Red, Violet
LCF1008-100-T 10 J=5%, K=10% 23/2.5 55 2.92 500 700 Black, Brown, Red, Orange

Dimensions

Dimension Value (mm)
A max. 2.90
B max. 2.54
C max. 2.0
D ref. 1.30
E 0.5 0.1

Operating Conditions

  • Operating Temperature Range: -25 to 105
  • Storage Condition: Temperature 20~25, Relative Humidity 40%~60%

2410121729_EMTEK-LCF1008-270K-T_C251984.pdf
