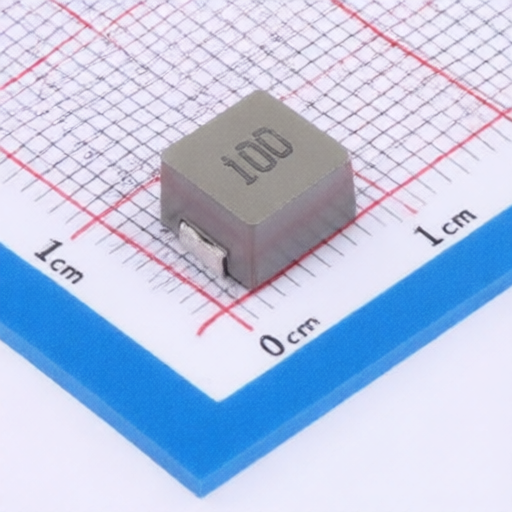

SMD Molding Power Inductor dehongganying DH0650H-100M Suitable for Consumer Electronics Applications
SMD Molding Power Inductor dehongganying DH0650H-100M Suitable for Consumer Electronics Applications
Specifications
Current - Saturation (Isat) :
7A
Description :
7A SMD,7.1x6.6mm Fixed Inductors RoHS
Mfr. Part # :
DH0650H-100M
Model Number :
DH0650H-100M
Package :
SMD,7.1x6.6mm
Description

Product Overview

The DH0650H-100M is a SMD Molding Power Inductor from Guangdong Dehong Sensing Microelectronics Co., Ltd. It is designed for consumer electronics applications and offers reliable performance with its integrated molding structure. This product is suitable for various applications where stable inductance and current handling are required.

Product Attributes

  • Brand: (Dehong)
  • Origin: Guangdong, China
  • Product Type: SMD Molding Power Inductor
  • Model: DH0650H-100M
  • Grade: General

Technical Specifications

Part NO.L0 (H) 20%DCR (m) Typ.DCR (m) Max.I rms (A) Typ.I sat (A) Typ.External Dimensions (A/B/C/D/E/G/H/I) (mm)Material ListTest ItemsSpecificationsTest Conditions / Test Methods
DH0650H-100M104560476.6 0.3 / 7.1 0.5 / 5.0 Max. / 1.6 0.5 / 3.0 0.3 / 2.9 Ref. / 7.8 Ref. / 3.5 Ref.1: CORE - (Alloy Powder)
2: COPPER - (Polyesterimide Enameled Wire)
3: BASE - (Silver-white Material)
4: INK - (Black Ink)		Electrical Performance TestInductance (L): Refer to Standard Electrical Characteristic List.
DC Resistance (DCR): TH2511
Rated Current (IDC): Inductance change not exceed 30% or temperature rise not exceed 40.
Temperature Rise Test: Not exceed 40.
Over Load Test: No evidence of electrical damage.		*Test Conditions: Room temperature 252, Inductance at 100KHz/1V.
*Rated Current: Current value when temperature rises about 40 at 25.
*Saturation Current: Current value when inductance drops to about 30% of initial value.
*Operating Temperature Range: -45~+125.

Electrical Performance Test:
Inductance (L): Refer to Standard Electrical Characteristic List.
DC Resistance (DCR): TH2511
Rated Current (IDC): Applied current to coils the inductance change should be less than 30% to initial value and temperature rise should not be 40 typical.
Temperature Rise Test: Applied the allowed DC current for 4 hours. Temperature rise not exceed 40.
Over Load Test: Applied 1.5 times of rated allowed DC current to inductors for a period of 5 minutes. No evidence of electrical damage.
DH0650H-100M104560476.6 0.3 / 7.1 0.5 / 5.0 Max. / 1.6 0.5 / 3.0 0.3 / 2.9 Ref. / 7.8 Ref. / 3.5 Ref.1: CORE - (Alloy Powder)
2: COPPER - (Polyesterimide Enameled Wire)
3: BASE - (Silver-white Material)
4: INK - (Black Ink)		Mechanical Performance TestSolder Heat Resistance: Inductors should have no evidence of electrical and mechanical damage. Inductance change not exceed 10%.
Vibration Test: Amplitude: 1.5 mm, Frequency: 10-55-10Hz / 1 MIN, Direction: X, Y, Z, Time: 2 HRS/X, Y, Z.
Shock Test: Inductors should be dropped 10 times from a height of 1m onto 3cm wooden board.
Solderability Test: More than 90% of terminal electrode should be covered with solder.		Solder Heat Resistance: Preheat: 150 100s Max. Solder Temperature: 2555. Dip Time: 10s Max.
Vibration Test: Amplitude: 1.5 mm, Frequency: 10-55-10Hz / 1 MIN, Direction: X, Y, Z, Time: 2 HRS/X, Y, Z.
Shock Test: Inductors should be dropped 10 times from a height of 1m onto 3cm wooden board.
Solderability Test: Preheat: 150 120s. Solder Temperature: 2555. Time: 10s Max.
DH0650H-100M104560476.6 0.3 / 7.1 0.5 / 5.0 Max. / 1.6 0.5 / 3.0 0.3 / 2.9 Ref. / 7.8 Ref. / 3.5 Ref.1: CORE - (Alloy Powder)
2: COPPER - (Polyesterimide Enameled Wire)
3: BASE - (Silver-white Material)
4: INK - (Black Ink)		Climatic TestTemperature Characteristic: Appearance: No damage. Inductance: Within 10% of initial value.
Humidity Test: 602 / 962 hours R.H: 90-95%RH.
Low Temperature Storage: -452 / 24 hours. Test at room temperature for 1 hour after storage.
Thermal Shock Test: -452 30 minutes, +852 30 minutes. 100 cycles. Test at room temperature for 1 hour after storage.
High Temperature Storage: 852 / 24 hours. Test at room temperature for 1 hour after storage.		Temperature Characteristic: -45 ~ +125.
Humidity Test: 602 / 962 hours R.H: 90-95%RH.
Low Temperature Storage: -452 / 24 hours.
Thermal Shock Test: -452 30 minutes, +852 30 minutes. 100 cycles.
High Temperature Storage: 852 / 24 hours.
DH0650H-100M104560476.6 0.3 / 7.1 0.5 / 5.0 Max. / 1.6 0.5 / 3.0 0.3 / 2.9 Ref. / 7.8 Ref. / 3.5 Ref.1: CORE - (Alloy Powder)
2: COPPER - (Polyesterimide Enameled Wire)
3: BASE - (Silver-white Material)
4: INK - (Black Ink)		Packaging13-inch Reel: 1000pcs/reel, 3000pcs/inner box, 9000pcs/outer box.
Tape Peel Force: 20~140g.		Reel Dimensions (P/W/A0/B0/K0/A/B/C/D/G/N/T): 12.00.1 / 16.00.3 / 6.80.2 / 7.60.2 / 5.20.15 / 330 / 21 / 13 / 16 / 17 / 100 / 20.
