EMI suppression core assembly for round cables Fair-Rite 0446164281 RoHS compliant and UL94 V0 rated
EMI suppression core assembly for round cables Fair-Rite 0446164281 RoHS compliant and UL94 V0 rated
Specifications
Mounting Type :
Free Hanging
Impedance @ Frequency :
235Ω@100MHz
Applicable Cable Type :
Round Cable
Combining Form :
Combination
Inner Diameter φ/ Inner Width D :
6.6mm
Description :
Free Hanging Round Cable Combination Cable Ferrites RoHS
Mfr. Part # :
0446164281
Model Number :
0446164281
Description

Product Overview

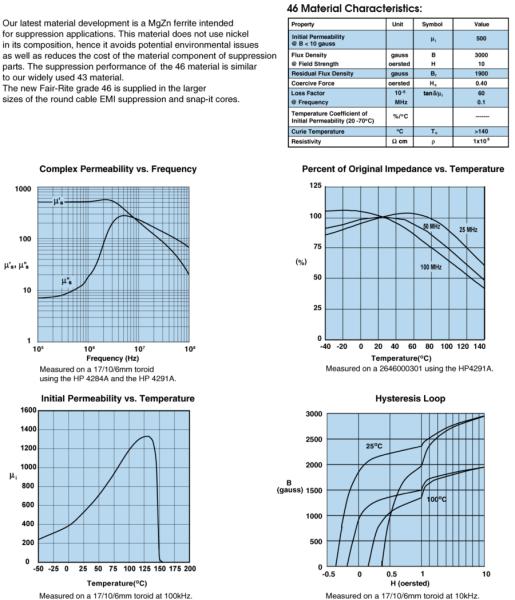

The Fair-Rite 0446164281 is a round cable core assembly designed for broadband EMI suppression. It is constructed with an economical 46 material, suitable for frequencies ranging from 25 to 300 MHz. These snap-it assemblies are engineered to suppress differential or common-mode conducted EMI, accommodating round cables or bundled wires with diameters from 2.5 mm to 25.4 mm. The polypropylene cases meet RoHS restrictions and have a flammability rating of UL94 V-0.

Product Attributes

  • Brand: Fair-Rite Products Corp.
  • Part Number: 0446164281
  • Material: 46 (Economical)
  • Case Material: Polypropylene
  • Flammability Rating: UL94 V-0
  • Certifications: RoHS compliant

Technical Specifications

Specification Value Unit Notes
Frequency Range 25-300 MHz Economical 46 material
Cable Diameter Range 2.5 - 25.4 mm (0.100'' - 1.000'') For round cables or bundled wires
Weight 26.000 g
Nominal Dimension A 20.00 mm (0.788'')
Nominal Dimension B 6.60 mm (0.260'') Core Dimension
Nominal Dimension C 39.40 mm (1.550'')
Nominal Dimension D 9.80 mm (0.385'')
Typical Impedance @ 10 MHz 81
Typical Impedance @ 25 MHz 131
Typical Impedance @ 100 MHz 235 + marked frequency
Typical Impedance @ 250 MHz 265

Note: Impedances listed are typical values. Minimum impedance is the listed impedance less 20% for + marked frequencies.
