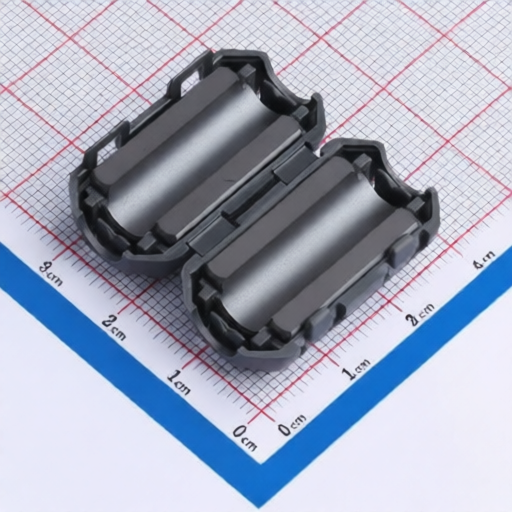

Clamp Filter TDK ZCAT1730-0730A-BK for Effective Noise Countermeasures in Power and Interface Cables
Clamp Filter TDK ZCAT1730-0730A-BK for Effective Noise Countermeasures in Power and Interface Cables
Specifications
Description :
Cable Ferrites RoHS
Mfr. Part # :
ZCAT1730-0730A-BK
Model Number :
ZCAT1730-0730A-BK
Description

TDK ZCAT Series Clamp Filters

The TDK ZCAT series clamp filters are designed to effectively suppress high-frequency noise in interface and power cables. Utilizing TDK's unique integrated ferrite core within a plastic case, these filters offer a one-touch attachment solution without the need to cut cables. They excel at absorbing common mode noise, providing noise countermeasures without impacting signal quality. The series offers compatibility with various cable sizes through different models.

Product Attributes

  • Brand: TDK
  • Certifications: RoHS, Pb Free, Halogen Free, REACH SVHC-Free
  • Color: Black (-BK), Gray (Non-code)

Technical Specifications

SeriesPart No.Impedance () min.
[10 to 100MHz]		Impedance () min.
[100 to 500MHz]		Impedance () min.
[50 to 500MHz]		Operating temperature range (C)Individual weight (g)Applicable cable outer diameterDimensions (mm) ADimensions (mm) BDimensions (mm) CDimensions (mm) DDimensions (mm) E
ZCATZCAT1518-0730(-BK)255040 to 8567max.22118171151
ZCATZCAT2017-0930(-BK)205040 to 85119max.21117191201
ZCATZCAT2032-0930(-BK)5010040 to 85219max.3613219119.51
ZCATZCAT2132-1130(-BK)408040 to 852211max.36132111120.51
ZCATZCAT3035-1330(-BK)8015040 to 856213max.391341131301
ZCAT-AZCAT1325-0530A(-BK)5010040 to 8563 to 5(USB)2512015112.8111.21
ZCAT-AZCAT1730-0730A(-BK)408040 to 85124 to 7(USB/IEEE1394)3012317116.51151
ZCAT-AZCAT2035-0930A(-BK)5010040 to 85216 to 93512819119.5117.41
ZCAT-AZCAT2235-1030A(-BK)5010040 to 85268 to 1035128110121.51201
ZCAT-AZCAT2436-1330A(-BK)308040 to 852910 to 1336129113123.51221
ZCAT-BZCAT2017-0930B(-BK)205040 to 85129max.21117191201(29)
ZCAT-DZCAT3618-2630D(-BK)3040 to 8516For 20 wires flat cable35.5117.5126111.51
ZCAT-DZCAT4625-3430D(-BK)3540 to 8534For 26 wires flat cable45.5124.51341121
ZCAT-DZCAT6819-5230D(-BK)3540 to 8560For 40 wires flat cable67.5118.51521161
ZCAT-DTZCAT3618-2630DT(-BK)3040 to 8516For 20 wires flat cable35.5117.5126112.51
ZCAT-DTZCAT4625-3430DT(-BK)3540 to 8534For 26 wires flat cable45.5124.51341131
ZCAT-DTZCAT6819-5230DT(-BK)3540 to 8560For 40 wires flat cable67.5118.51521171
ZCAT**DZCAT10D(-BK)257040 to 8564max.27114.511014171
ZCAT**DZCAT13D(-BK)4010040 to 85155max.341201131518.51
ZCAT**DZCAT20D(-BK)6015040 to 85455max.35130120151151

Applications

PCs, monitors, HDDs, digital telephones, audio equipment, electronic musical instruments, video games, copiers, and facsimiles.


2412201240_TDK-ZCAT1730-0730A-BK_C383419.pdf
